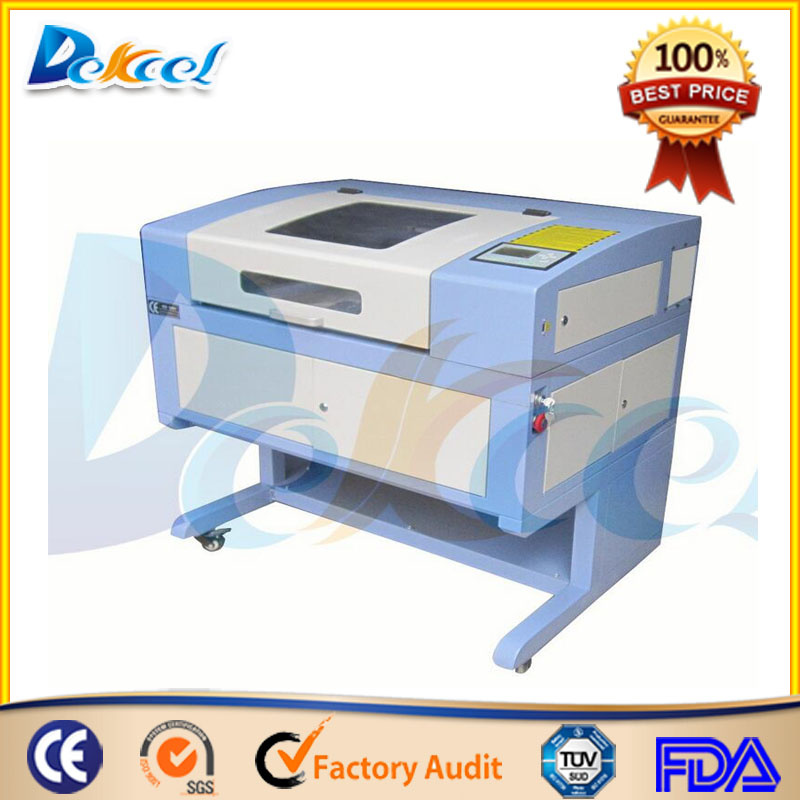

CO2 Laser Glass & Crystal Engraving Machine for Crafts Dekj-6040

Product Specifications

Prod Model:	DEK-6040
Laser Medium:	CO2
Model:	Dekj-6040
Laser Type:	CO2 Glass Tube
Laser Power:	40 W/50W/60W (Optional)
Laser Wave Length:	10.64um
Driving System:	Digital Subdivision Stepper Motor
Total Power:	≤300W
Working Area:	600×400mm
Max Moving Speed/Max Cutting Speed:	0-3600 mm/Min
Worktable:	up&Down Worktable(0-300mm)/Fixed Worktable (Option

Product Description

CO2  Laser Glass & Crystal Engraving Machine for Crafts  DEKJ-6040

Co2 laser engraving machine mainly for engraving on non-metal material,like glass,wood bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc

Main features of glass co2 laser engraving machine

1) Co2 glass laser machine's body adopts integrally close-in construction, when operation,very stable.
2) High speed USB2.0 achieves completely off-line work
3)The controlling system includes a 64M EMS memory, which can simultaneously save different files.
4) Human-computer interface with LCD display, easy operation.
5) The newest intellectualized software, can support direct output of AutoCAD, CorelDraw, etc.
6) Red dot position system realizes the exact position without laser.
7) Imported linear guide and leather belt transport.

Applicable Materials of the glass co2 laser engraving machine

Transfer complicated designs, logos and photos to wood with laser marking, cutting and engraving. Curves and sharp corners can be laser cut with wonderful precision.Co2 laser can cut wood types:Balsa, bamboo, cherry, maple, oak, teak, alder, birch, cedar, pine, ebony and more.

Technology Parameters of glass co2 laser engraving machine

Technical	Parameters                   Model: DEKJ-6040
Laser type	CO2 glass tube
Laser power	40 W/50W/60W (optional)
Laser wave length	10.64um
Driving System	digital subdivision stepper motor
Power supply	AC220±10% 50HZ/AC110±10% 60HZ
Total power	≤300W
Working area	600×400mm
Max moving speed/Max cutting speed	0-3600 mm/min
Worktable	Up&down worktable(0-300mm)/fixed worktable (optional)
Location precision	±0.1mm
Location way	Red light positioning
The rotating fixture	φ10-150×600mm
Mini shaping character	Chinese Character, 2*2mm, English Letter, 1*1mm
Resolution ratio	≤1000DPI
Data transfer interface	USB 2.0 (offline)
System environment	Windows 2000/ Windows XP /Win 7
Cooling way	Water cooling and protection system
Graphic format supported	files which CorelDraw,Photoshop can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT)
Compatible software	Coreldraw
Cutting thickness	0-10mm (depends on different materials)
Color separation	Separation of cutting up to 256 colors
Operating temperature	0-45ºC
Operating humidity	5-95%
Cuts off the water supply the protection	Yes
Machine dimension	1100*740*570mm(40W/50W)/1400*740*570mm(60W)
Net weight	120kg



APPLICAPABLE INDUSTRIES OFglass co2 laser engraving machine

Craft gifts,furniture,advertising signs,model marking,food,packaging,electronic components,pharmaceutical packaging,printing plate,shell plate,so on.

PROFESIONAL SERVICE OF THEglass co2 laser engraving machine

From producing in our factory to shipping the goods directly to your port or company,we supply all-in-one service for our customer.With the rich experience of dealing with shipping issue and custom clearance. We can make the most economical delivery plan for you and ensure the quick leading time. No matter quantity is our MOQ or very big, we take each customer a

After-Sales Service OF glass co2 laser engraving machine:

1.Quality guaranty:The main parts(excluding the consumables)of desktop fiber laser marking machine shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of change.
3.Free training course at our plant.
 Detailed manual and video to guide the users how to use the ldekstop fiber laser marking machine and  maintenance, also supply the specification settings for the speed and power to mark various  materials.
 Our staff can be sent to your company to install or adjust if necessary.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support by email or calling.If you meet the problems, we can help to solve it with pictures,video,etc
6.The desktop fiber laser marking machine has been adjusted before delivery.

FAQ

Question1: What is the Superiority of glass co2 laser engraving machine compared with ordinary laser marking machine?
Reply: 1 More fast marking speed
       2 More stable, do not need to repair usually, the working life is about 100000 hours
       3 The main parts are from abroad, like the fiber laser,  Galvanometer
       4 Portable

Questions2: I want to do marking for the round object with this machine, like ring, is it ok?
Reply: yes, no problem, with a rotary device, it will be ok.

Question3: Could I send some samples to you for test? We want to know the marking quality
of our order.
Reply: Of course no problem, welcome to send some samples to us, and we will test it with our machine,
then send the marked samples back to you for check.
