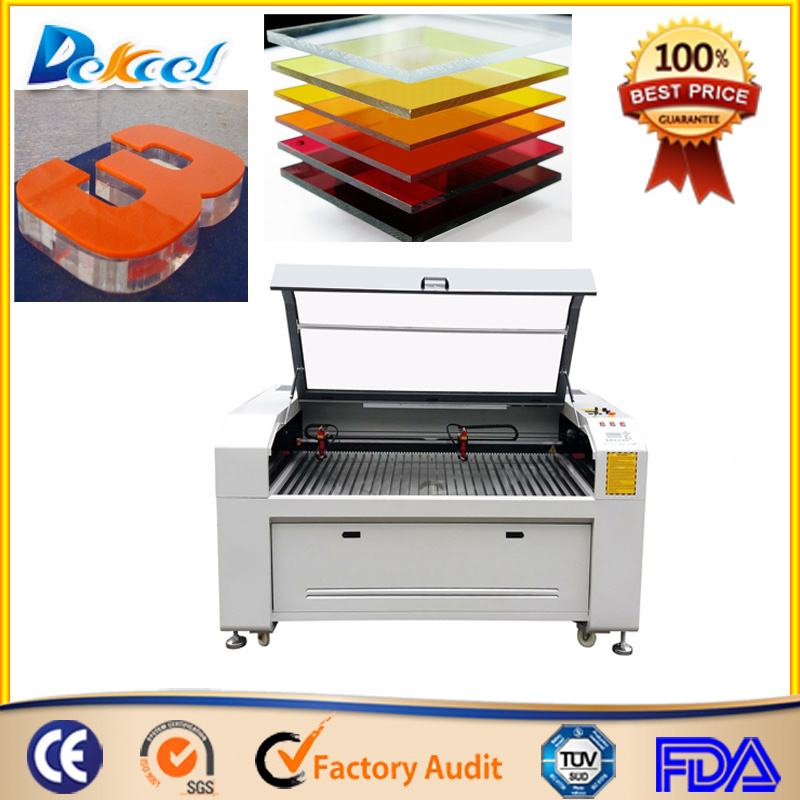

CO2 CNC Laser Cutting System for Acrylic

CO2 CNC Laser Cutting System for Acrylic
Price: US $ 3500-6800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: DEK-1390
Cutting Area: 1300*900mm
Cutting Thickness: 0-30mm
Cutting Speed: 0-40000mm/Min
Graphic Format Supported: Ai, BMP, Dst, Dwg, Dxf
Certification: Ce, FDA
Laser Power: 60W/80W/100W/150W
Driving System: Stepper Motor and Drivers
Control Configuration: Ruida Control System
Belt: Fulong Belt
Rail: Hiwin Guide Rails

Product Description

1. Product Description of cnc laser cutting system
Practical model for primary customers.
User-friendly interface, easy to master for operation.
Parallel light beam design, lessen path deviation, high performance, easy adjustment.
Aluminum alloy knife strip working table, ensure high quality cutting.
Digital Offline control system, USB available, RD and Lettro alternative.
Optional red light positioning system and water chiller for better work performance.

2. co2 laser machine applicable industries :
 1. Advertising industry: large blister word cutting, organic glass engraving and cutting, engraving of double color board, scutcheon, crystal cup, authorize brand etc.
 2. Leather and clothing industry: complex text and graphic engraving on leather, synthetic leather, leatheroid, cloth, fur and leather. Craft processing like cutting, carving patterns or designs on woodwork, hollowing out. Cutting of clothes, underware, home decoration, gloves, bags, shoes, hats, toys and other industries.
 3. Art & Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.
 4. Model industry: cutting on architectural model, aviation and navigation model, and wooden toys.
 5. Packing and printing industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.
 6. Decoration industry: engraving and cutting on electric products and relevant materials.
 7. The product labeling industry: Equipment nameplate. Anti-counterfeit marking ect.
 8. Other industry: marble, granite, glass, crystal other decorative materials, carved markers, paper cutting, greeting cards and other
3. Machine Parameter of acrylic laser cutting system for sale
Type  DEK-1390
Engraving Area 1300 x 900mm
Laser Power100w or 130w 150w
Laser Type CO2 Laser Tube
Engraving speed 0~1000mm/s
Cutting speed  0~600mm/s
Resetting positioning accuracy 0.01mm
Cutting depth depend on materials
Minimum Shaping Character 1.5×1.5mm
Power supply 220V±10% 50HZ or 110V±10% 60HZ
Gross power 1200W
Software supported ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported PLT,DXF,BMP,JPG,GIF,PGN,TIF
Engraver for Curve surfaces (Yes/No) No (rotary attachment can be added for cylinders)
Water Cooling: (Yes / No) Yes
Maximum Height of Materials to
Engrave (mm)
 280mm(Up and down by motor)
Laser Tube (life hours) 10000 hours
Assistant EquipmentWater pumpExhaust FanAluminum alloy worktable
Optional Spare Parts RF TubeRotary SystemCooling water systemRed Dot Pointer
Recommended Spare Parts / Consumables Laser Tube and Lens

Machine partsTools bag
NameAmountUnitsNameAmountUnits
Water pump1setManual book 1PC
Air pump1PCSoftware CD1PC
Power line1PCUSB line1PC
Smoke pipe1PCWater pipe1PC
Air pipe1PCPass lock1PC
Tool bag1PC
More parts can provide to you as your request

FAQ
How to operate the machine whether we didn't operate it before?
1.We will send the instruction book and video CD with machine when send out to you.It easy to learn .
2.We can teach you online with skype or MSN ,wechat use the chat tools, or use remote computer to help you operate.
3.It's very easy to operate after you check the instruction .
How about the documents after shipment?
If ship by sea transport, after machine shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
When the machine can't work well,what should I do?
1.Engineer is online for 24-hours, they can check the problems and then give you a solutions in two hours.
2.Our machine are with one's year warranty, If any problems of machine parts under "normal use",new machine parts will be sent by air In free.
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
Do all  products are  warrantied?
Yes.All  products are warranted for one year (some of them warrant 2 years) against defects in materials and workmanship.During this time, we will replace any defective parts for clients with free of charge,sometimes client only pay freight.Upon receipt of the defective parts,  technicians will arrange with you to send replacement parts immediately.This warranty does not cover parts that are worn out through the negligence on the part of the operator nor does it cover consequential damages resulting from defects in material or workmanship.
How much does it cost to use?
There is no cost to use the machine.However, you are responsible for supplying your own materials.Occasionally we require users to purchase their own router bits, depending on how much routing is to be done and the type of material.

After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.

If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?

Dekcel advantage

1. High quality and competitive price
2. Imported accessories.
3. A line of production flow
4. Have the professional engineer.
5. 24 hours online service .
6. If you make a great order,can give you a discount(include some presents)
7. You can feel free to visit our factory or maybe have a trip in Jinan city


Looking for agents for all over the world
Thanks for your time!
