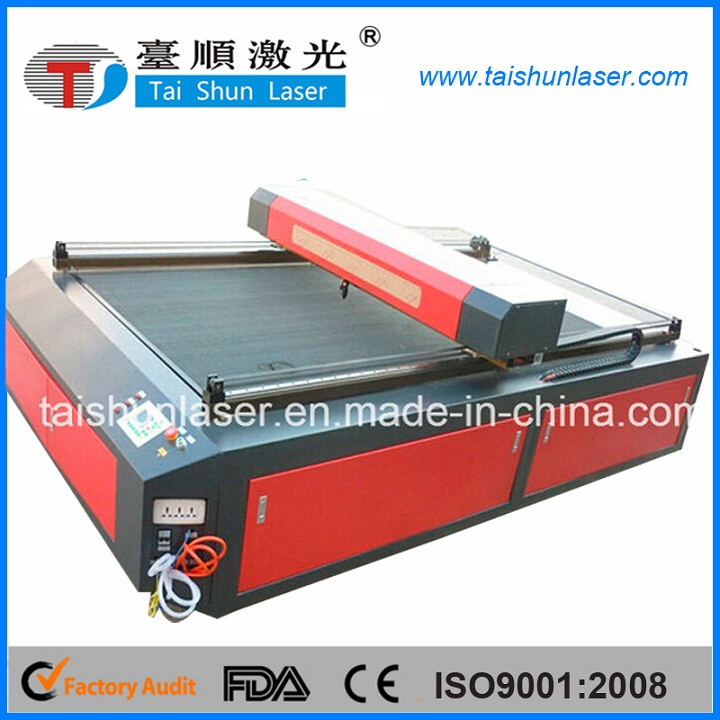

Product Specifications
| Prod Model: |
TSZD130250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Laser Power: |
80W |
| Working Area: |
1300mmx2500mm |
| Working Table: |
Blade Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Guarantee: |
One Year Free Maintenance |
Product Description

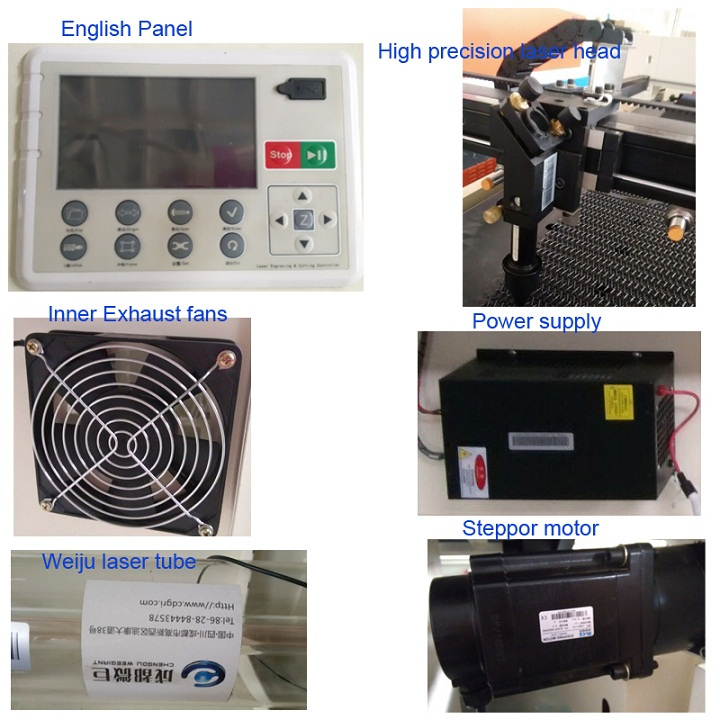

Feature:1.Reinforced and thickened body with HIWIN square rail, linear guide,laser tube with high accuracy.2.Transparent acrylic protective window cover, easy and safe to check work process .3.Independent laser tube cabinet, protect tube and easy change.4.Engraving hard materials: Stone,granite,ceramic,glass,coated metal, etc,Cutting soft materials: fabric, cloth,jeans,paper, etc5.Red light positioning system, making the process easier positioning and precise6.Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.7.Support various graphic formats including PLT / DXF / BMP / JPG / GIF / PGN and TIF.Technic parameter:| Model | TSHY130250 | | Option |
| Working Area | 1300mmx2500mm | | According to Demands |
| Laser Power | 80w/100w/130w/150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-36000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Highest Scanning Precision | 2500DPI |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller Red Dot Position System |
|
Applicable Materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized
embroidery and clipping, packaging and paper industry.
Sample show:
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials. Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm carbon Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel ) Demo videohttps://www.youtube.com/watch?v=xs_Im20mv6g carpet cuttinghttps://www.youtube.com/watch?v=GbkX77rZW_Q labels engravinghttps://www.youtube.com/watch?v=DOUXxajO3_w insole engraving https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metalhttps://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machinehttps://youtu.be/5PgXtVNajn4 large format fabric cutting https://youtu.be/L6Rz6L3UaXY embroidery applique cuttinghttps://youtu.be/uy6NRT4HsrU MDF laser cutting
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
