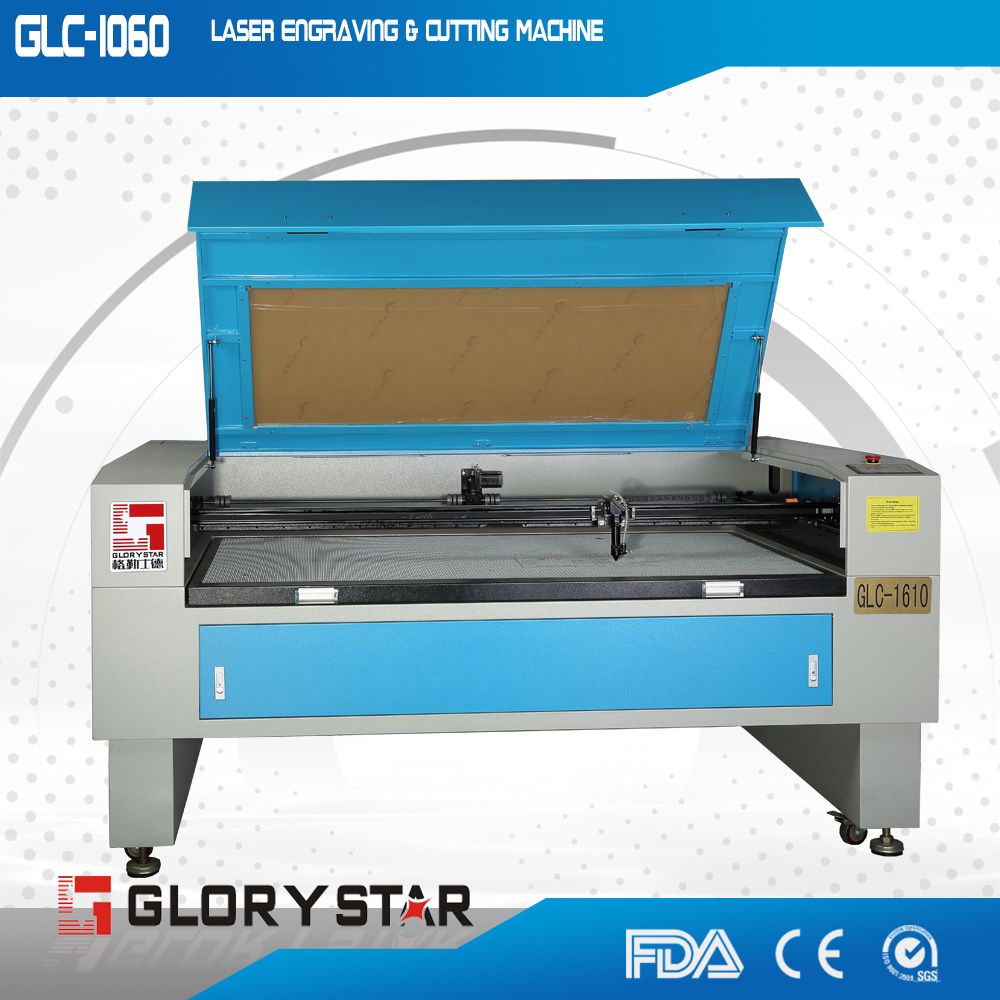

CO2 Laser Cutting / Engraving Machine Model GLC-1610
Price: |
US $ 3000-5000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
GLC-1610 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: |
Laser Engraving Machine |
Power: |
Small Power |
Certification: |
GS, SGS, Ce, RoHS, ISO 9001 |
Laser Type: |
CO2 |
Control: |
CNC |
Current: |
AC |
Control System: |
DSP |
Working Speed: |
0-1000(mm/S) |
Platform Types: |
Honeycomb Table, Blade Strip Table (Optional) |
Product Description
CO2 Laser Cutting and Engraving Machine for fabric
Product Features
CO2 Laser cutting/engraving machines series are very popular in the market around the world. They have high stability and accuracy. Quality and price ratio is high.
They employ stepper motor and driving system imported from USA.
LCD, PCB lamp motherboard, USB port
Water-cooling system, domestic -made 70W CO2 Laser
Origional straight-line-guiding-track from Japan.
Applications:
Engraving and Cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.
Materials
Wood work, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials.
Parameter | Model | GLC-6040 | GLC-9060 | GLC-1080 | GLC-1290 | GLC-1490 | GLC-1610 |
Working area | 600*400 | 900*600 | 1000*800 | 1200*900 | 1400*900 | 1600*1000 |
Laser power | 70W/80W/100W/130W/150W |
Laser type | CO2 glass tube |
Control system | DSP |
Drive mode | Stepping Motor Microstep drive |
Cooling mode | Water-cooling and protection system |
Working speed | 0-1000(mm/s) |
Graphics mode | Plt, Dxf, Bmp, Pcx, Dst, etc |
Platform types | Honeycomb table, blade strip table (Optional) |
Repeatability precision | ≤0.02mm |
Working voltage | AC 220±10%/50-60Hz |
Overall power consumption | ≤1250w |
N.W. | 200KG | 220KG | 340KG | 400KG | 500KG | 530KG |
G.W. | 290KG | 320KG | 440KG | 520KG | 600KG | 660KG |
Package Dimension(mm) | 1630*960*1270 | 1850*1250*1270 | 1700*1500*1270 | 1900*1600*1270 | 2100*1600*1270 | 2240*1660*1270 |
Body configurations | Optical design | Adopting the imported lens and mirros to ensure long lifetime of laser tube and high cutting efficiency |
Mechanical design | 1. The patented body adopts the most solid design which can ensure no deformation long time operation and transportation. |
2. Adopts imported stepping motor and driver with its unique high speed outer guide rail. |
Software design | 1. Adopts International advanced DSP control technology, ensure high cutting engraving speed, high accuracy and high stability. |
2. The machine system can be commanded by U disk without PC connection. |
3. Can be directly support Autocad, Coreldraw software or their output, the documents like PLT, PCX, DXF, BMP etc., |
Working Environment | Operating Humidity | 5%-95% |
Operating Temperature | 0ºC-45ºC |
Applications | Applicable industry | Applicable for the garment, toy, handbag, glove industries, also inclusive of precise cutting and engraving like acrylic and MDF board, mold, advertisements, decoration, electrical appliance and plastic industries. |
Materials | Wood, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, bamboo, and other non metal materials |
<<<<
Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.
We specialize in export and service of various types of laser machinery, such as:
1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )
2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )
3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )
5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )
6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)
7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )
10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )
11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)
12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )
13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )
14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )
15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)
Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.
