Product Specifications
| Prod Model: |
DEK-1212 |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
5.5kw Water-Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

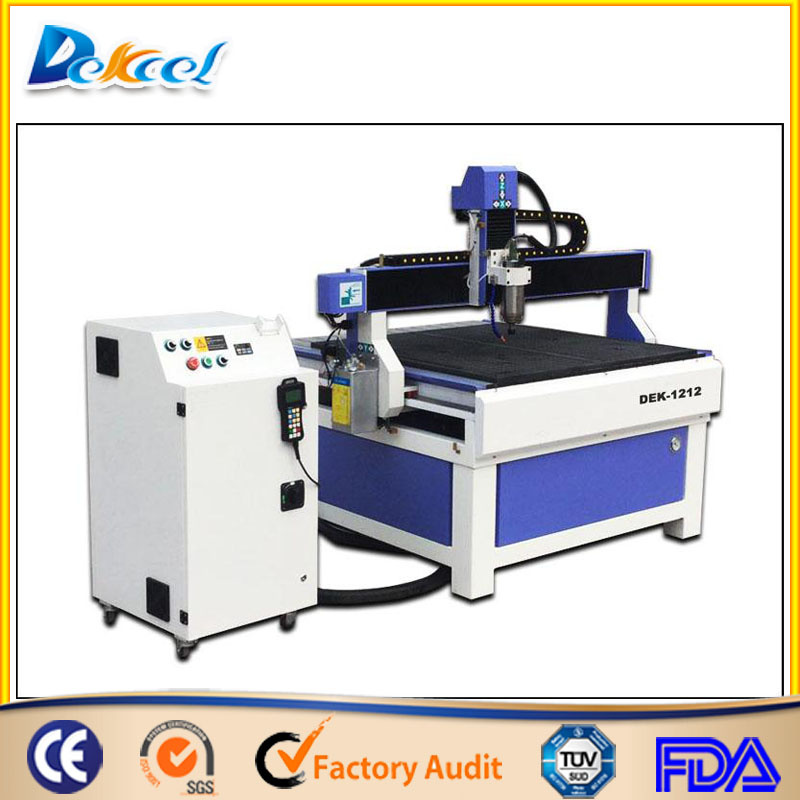

Product Description of cnc router for acrylic cutting
1. X, Y axies Transmission: Helical tooth rack and pinion, faster speed than straight tooth with higher accuracy.
2. The Machine adopts seamless welded steel structure and performance is strong, not deformed.
3. NC studio control card: Introduction, convenient, easy to learn. The user can quickly use the
Equipment, strong independence.
4. The machine system has the functions of continuing carving after power failing and breakpoint.
5. Y axis adopts dual drivers design, dual drive power, making sure the process precision of the workpiece.
6. The machine adopts all good components and parts, long service lifetime.
7. Guide rail and transmission part from Taiwan, top quality.
8. Workpiece clamps fixture, vacuum adsorption optional.
Application Industry and Materials of cnc router cutting machine:
1.Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.
2.Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
3.Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Techinical parameter of wood acrlic plastic cutting router machine price
Working area: | 1200*1200*300mm |
Spindle type: |
water-cooling spindle |
Spindle power |
5.5KW |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,4 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
Why choose Dekcel product ?
1. Dekcel company is specialized in manufacturing and selling CNC Router and laser
machine for many years . We have lots of experience.
2.Our worker have experience,they can produce machines professional and skilled,so make the
machine with high quality and can work well.
3.All the parts of our machines are famous brand in China or in international,so it make sure our
machine have high quality and long lifetime.
4. Our company has all kinds of machines in store, so we can make sure deliver quickly.
5. Our company has international technical service team and provides 24 hours online services and technical supports for customers.
