Product Specifications
| Prod Model: |
DEK-2030M |
| Working Area: |
2000*3000mm |
| Control System: |
Weihong Nk105 DSP Control System |
| Z Axis Transmission: |
Taiwan Tbi Transmission |
| Spindle Power: |
3.0kw Air Cooling Spindle |
| X Y Axis Transmission: |
Gear and Rack Transmission |
| Motor And Driver: |
Leadshine Stepper Motor and Drivers |
| Inverter: |
Fuling Inverter |
| Dimension(L*W*H): |
4110X2200X1550mm |
| Weight: |
1800kg |
| Voltage: |
380V/50Hz |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

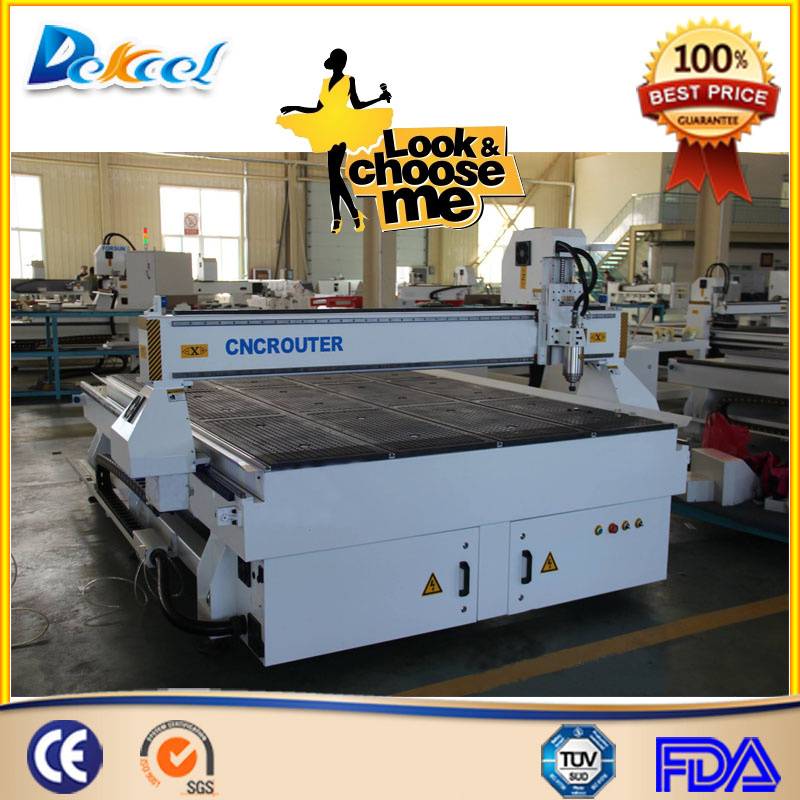

Cnc router engraving machine for woodworking 2030
Cnc Router specifications
---CE standard
---2000*3000*200mm
---3.0KW water cooling spindle
---Z axis Taiwan TBI ball screw transmission ,X/Y axis gear transmission
---Taiwan Hiwin 30 rails
---Heavy duty body structure
---Weihong NK105 DSP control system(easy to learn and operate)
---Leadshine stepper motor and Leadshine M860 driver
---Artcam software
---T-slot table
---Fuling inverter 3.7kw
---Filter
---tool sensor
---Dust collector 3.5kw
---One case of standard router bits (free of charge)
Application Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials ect...
Processing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on.
Features
1. High stability: lathe bed platform casting, supporting dense, bearing force average, reduce machine distortion
2. High speed: Rack pinion drive with a high speed.
3. High quality parts: using square guide rail, rack pinion has a high speed, X rail adopt pop dustproof structure, ensure the machine has a long-term operation, spindle is air cooling.
4. Reasonable design: the unique guide installation, cutting section smooth bright and clean.
5. Good compatibility: Compatible software CAD/CAM, such as Type3, ArtCam, Castmate, UcanCAM, Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.
Technical Specifications:
| Configurations | DEK-2030M woodworking cnc router machine |
| Working Area (X Axis) | 2000mm |
| Working Area (Y Axis) | 3000mm |
| Drive System (Z Axis) | 200mm |
| Spindle | 3.0kw water-cooled |
| Spindle Speed | Adjustable 0-24,000 rpm |
| Tool Change | Manual Tool-Change |
| Drive System (X & Y Axes) | Helical Rack & Pinion |
| Drive System (Z Axis) | Taiwan ball screw |
| Drive Motors | Stepper Motors |
| Inverter | FULING |
| Driver | Leadshin Driver |
| Command | G code |
| Cutter diameter | φ3.175-φ12.7mm |
| Maximum Travel Speed | 35m/min |
| Table Top | vacuum table tops with absorption function |
| Vacuum pump | 5.5kw water cooled |
| Controller | DSP handle |
| Power Requirements | 3-phase 380V/50HZ, 220V optional |
Our inner quality control:
In the process of production, our professional technical engineers inspect the process to ensure the quality of products.
Each link is strictly controlled to ensure the machine clean and beautiful.
48 hours continuous working test before the machine leaving factory, ensure the high quality of each cnc router engraving machine.
Welcome to inquiry from us about cnc router engraving machine for woodworking job.
