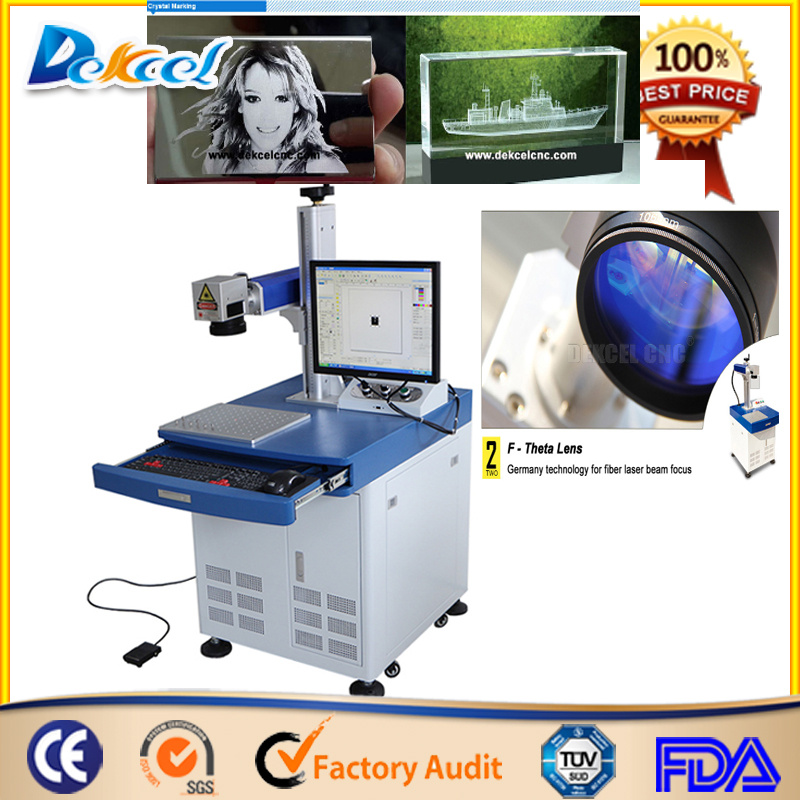

CNC Fiber Laser Marker Machine for Crystal Sale

Product Specifications

Prod Model:	Dek-110*110 mm
Engraving Depth:	0.01~0.2mm
Control Software:	Ezcad
Graphic Format Supported:	Ai, BMP, Dst, Dwg, Dxf etc
Working Accuracy:	0.001mm
Guaranty:	24 Month
Quality Of Laser Beam:	M2<1.5
Engraving Speed:	≤12000mm/S
Laser Length:	1060nm
Minimum Line Width:	0.01mm
Minimum Character:	0.05mm

Product Description

Fiber Laser Marker Machine for sale Features

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning systems makes the scanning speed is up to 7m/s
Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
High Reliability: MTBF>100,000 hours
Energy Saving: The efficiency of optic-electrical converting is up to 30%
Low Running Cost: No wearing part. Free maintaining


cheap cnc laser marker machine Description

1.Compactness,with the unique all built-in integration design,the optical electronic and mechanical components are highly integrated,so that the whole machine weight only 35kg.It can be called the smallest fiber laser marker in the word.In addition,it adopts imported fiber laser,and coupled with all air-cooled design,it need not external cooling devices.

2.High Durability,The laser module has a long service life(greater than 100,000 hours;while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).

3.Low consumption,Due to the all air-cooled design,no consumable materials and free of maintenance,it has a low cost at use.Furthermore,it saves energy with a total power below of 0.5kw.

4.High speed,It applies imported high-speed galvanometer scanning head,which has greatly reduced the latency and increased the marking speed,which is 3 to 10 times of the fist generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).


Applicable field and material of laser marker machine for sale


Electronic Components	Resistance, capacitance, chips, printed circuit    boards, computer keyboard
Apparatus And Meter	Panel signs, precision equipment,etc
Instrument	Panel signs nameplate, precision equipment,etc
Hardware Tools	Knives,tools,measuring tools,cutting tools,etc
Automobile Parts	Piston rings,gears,shafts,bearings,clutch,lights  etc
Mechanical Parts	Bearings,gears,standard parts,motors,etc
Daily Necessities	Handicrafts,zipper,key holder,sanitary ware,etc
Jewelry Rings	Jewelry,gold,silver,etc
Food,drinking packing	Plastic packings,etc

Specifications of Fiber Laser Marking Machines


Model	DEK-10W/20W/30W/50W
Laser power	10W 20W 30W 50W
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz~100KHz
Pules frequency	20KHz~200KHz
Divergence	0.3mard
Marking range	110*110mm/200*200mm/300*300mm
Minimum line width	0.001mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤ 7000mm/s
Repeat accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar code,two-dimensional code,automatically marking the date, batch  number,serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V ± 10%/50HZ/4A
Unit power	<0.5KW
Use of the environment	Clean and dust free of dust less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours
The whole life	More than 15 years
Packing size	770*250*600*mm
Net weight	35kg



Customize
The fiber laser head can move according to processing demand, and mark on big and heavy materials directly, which break through the machine.
The standard length of the fiber laser lines is 2000mm.
After service of Fiber Laser Marking Machines
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
About payment
We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.

About delivery time:
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you.
