Product Specifications
| Prod Model: |
DEK-50W-M |
| Engraving Depth: |
0.01~0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Repeatability Accuracy: |
±0.001mm |
| Guaranty: |
18 Month |
| Laser Module Life: |
>100000 Hours |
| Marking Line Speed: |
≤12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.02mm |
| Working Voltage: |
220V/50Hz/4A |
Product Description

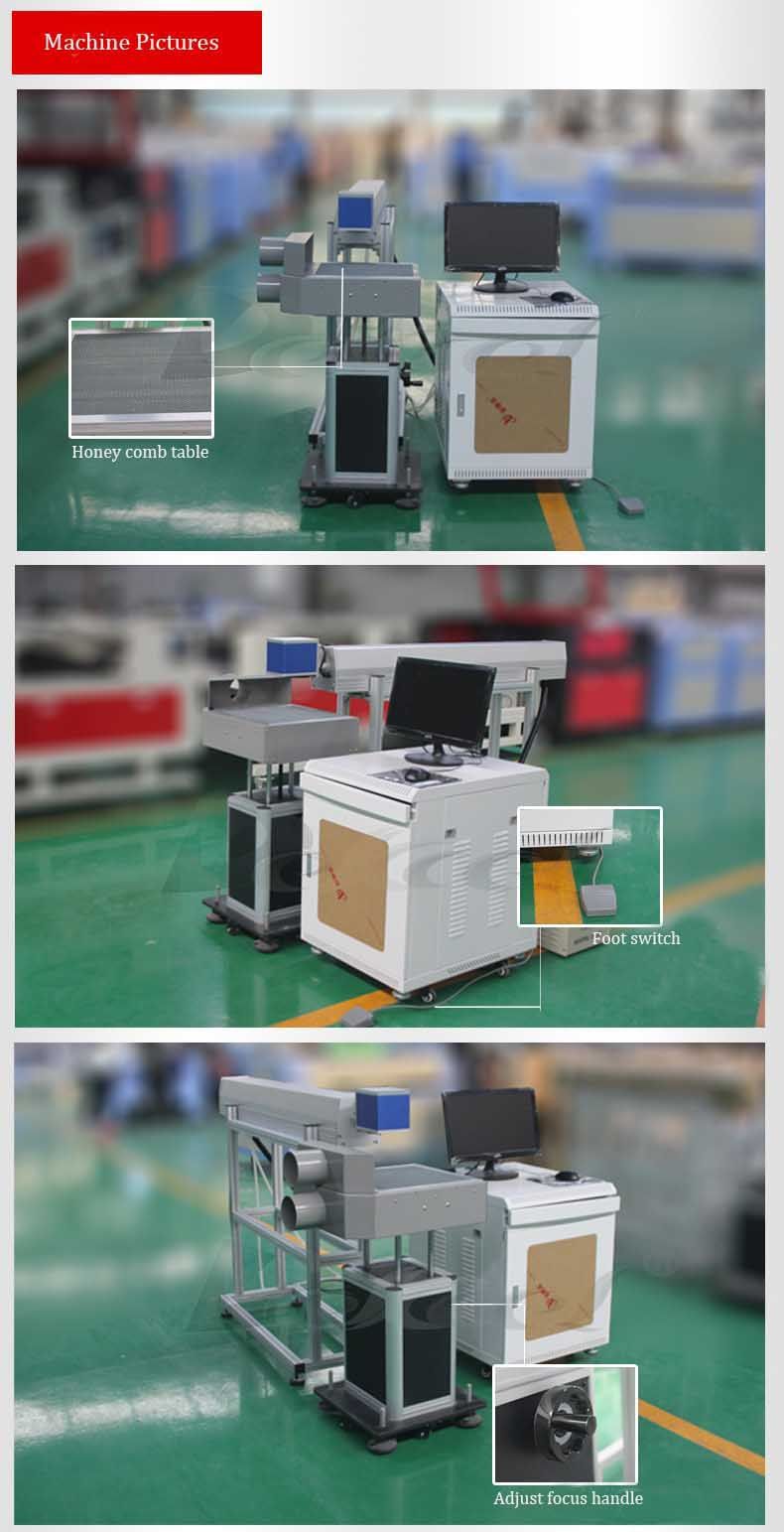

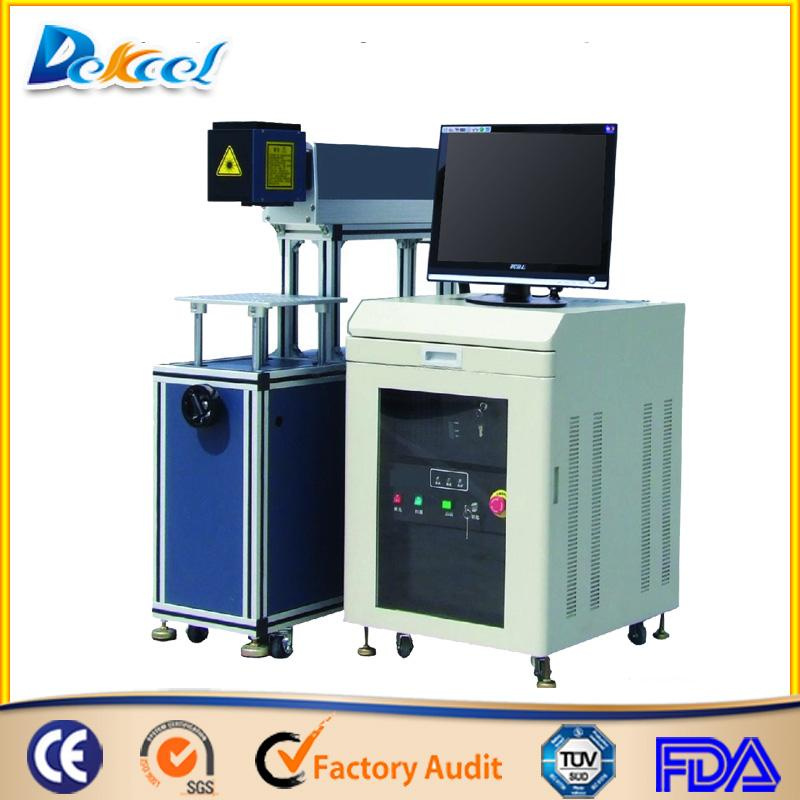

CNC CO2 Nonmetal Marking Solution 30w/55w Syrad/Coherent Laser Marker Machine
Features of Co2 glass tube 80W laser engraving on metal
High power motor, stable and long life.
High precision, high speed, marking clear, strong permanent
High speed working table can be lifting up and down,suitable serval size product marking.
Integrated and compact structure, aluminium alloy working table
Digital galvanometer
Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, 2D
code, incrementing serial No., automatic jump codes, etc.
Excellent for water cooling system.
Glass using carbon dioxide laser, is a common type, after the focus mode, the optical system is free to lift, shift.
Parameters of Co2 glass tube 80W laser engraving on metal
No. | Description | Parameter |
1 | Model | DEK-2020F |
2 | Laser power | 80W |
3 | Working area | 100*100mm(or optional) |
4 | Laser Wavelength | 10.64μm |
5 | Response time | 0.5ms |
6 | Frequency of pulse | ≤ 30KHZ |
7 | Max marking depth | ≤0.3mm (adjustable according to materials) |
8 | Marking speed | 0-7000mm/s |
9 | Marking lines | 1-10 lines(in the marking area) |
10 | Minimum line width | 0.1mm |
11 | Minimum character | 0.4mm |
12 | Repeatability accuracy | ±0.01mm |
13 | Resolution ratio | 0.1mm |
14 | Marking content | Text,pattern,date,bar code,etc |
15 | Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
16 | Operation system | Microsoft Windows XP or Windows 2000 |
17 | Control software | China marking control software or laser2.1 marking control software |
18 | Unit power | ≤ 1.2KW |
19 | Operation temperature | 5°C-40°C |
20 | Relative moisture | ≤ 90%,no fog |
21 | Supply Voltage | 220V/50Hz/15A |
22 | Cooling method | water cooling |

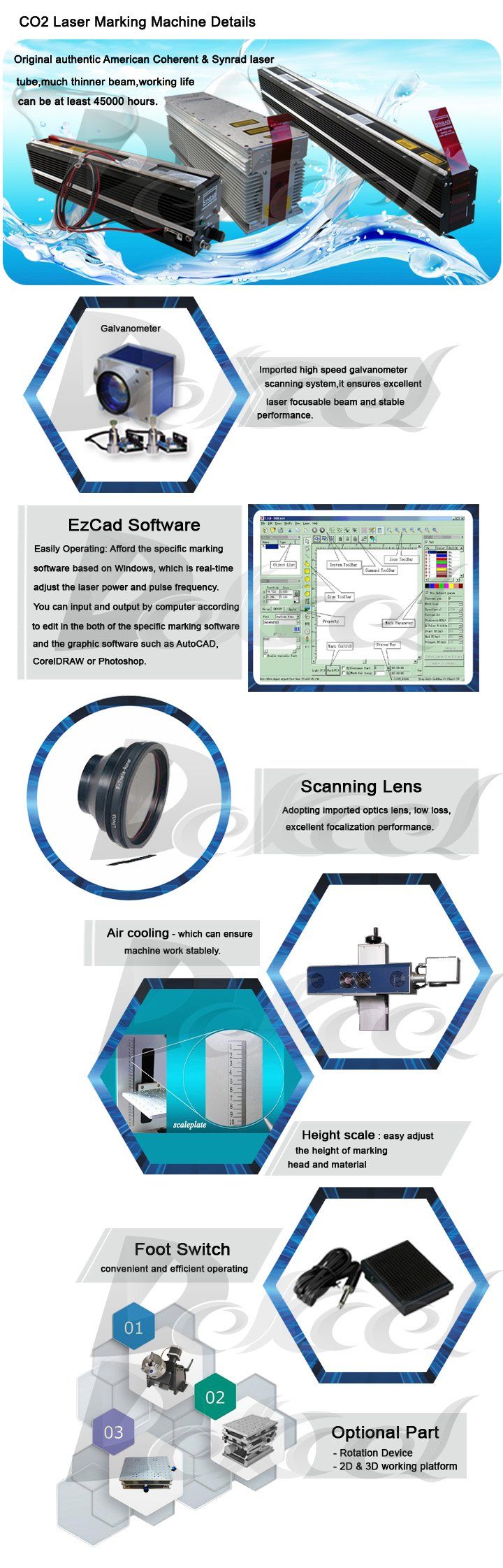

Co2 glass tube 80W laser engraving on metal main parts
Applicable Industries of Co2 glass tube 80W laser engraving on metal
Craft gifts,furniture,advertising signs,model marking,food,packaging,electronic components,pharmaceutical packaging,printing plate,shell plate,so on.
Applicable Materials:
Leather cloth,wood products,paper packaging,plastics,glass ceramics,resin plastic,PCB,rubber, glass, ceramic tile,marble,jade,crystal,and other non-metal hard materialsDekcel CNC Laser Marking Machines

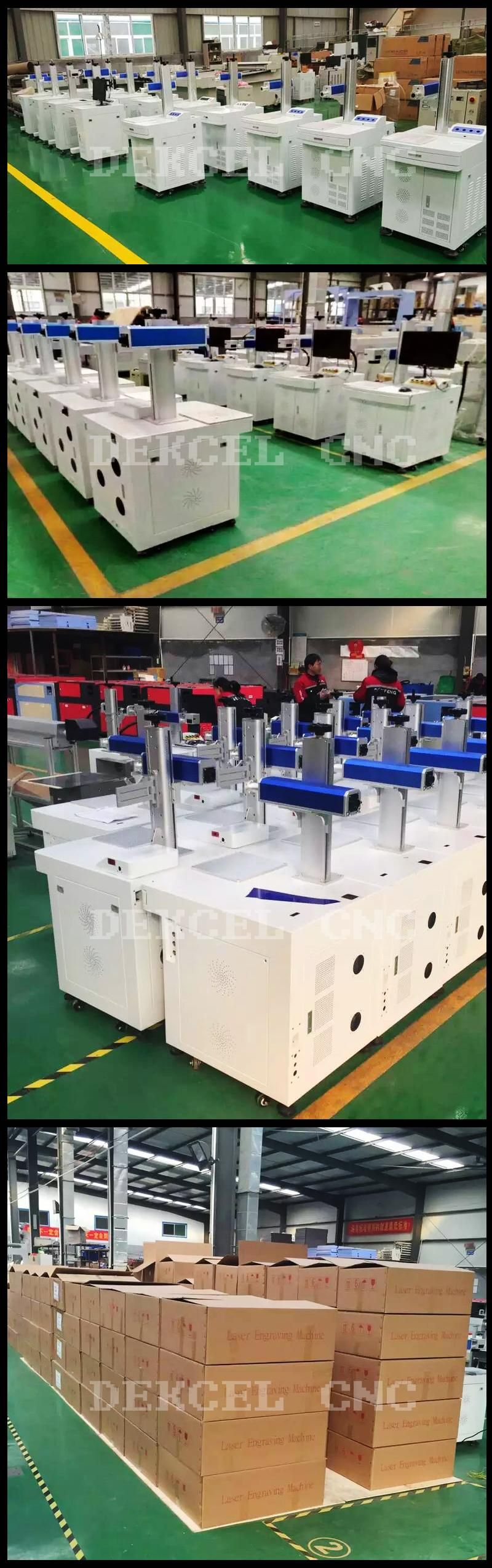

Dekcel CNC Laser Marking Machines Factory Show
Dekcel CNC Laser Marking Machines Certificates
Warranty:
1).The warranty of machine is 18 months.
2)The warranty of the lens and laser tube is 6 months.3)The warranty is dated from Ex Factory Date.
4)During warranty, we will send the parts to you for repairing/replacing.
5)When the warranty is over, we will charge for replacing.
6)If there's any problem in future, we will give you tech support by sending email/telephone/skype/msn and we will send you tech documents to fix the problems.
7)The warranty is only valid for for customers who buy machine in the year of 2013.
Frequentlyasked questions
Q:Does your laser run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win
Q:Does your laser work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.
Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
Q:what's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1.the length of the tube,the longer the tube is, the more powerful.
2.the diameter of the tube,the bigger the tube is, the more powerful.
Q:Air way shipping time:
A:usually, we will need about 7 days to prepare the order after receving the payment.
and if send by DHL air way, it will need about 7 days to reach you.
so totally it will need about 14 days if you choose DHL air way to your door.
