Product Specifications
| Prod Model: |
1610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Advertising |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
Small Power |
| Control: |
Automatic |
| Certification: |
SGS |
| Laser Type: |
CO2 |
| Current: |
AC |
| Condition: |
New |
| Drive Mode: |
Stepper |
| Laser Power: |
80W |
Product Description

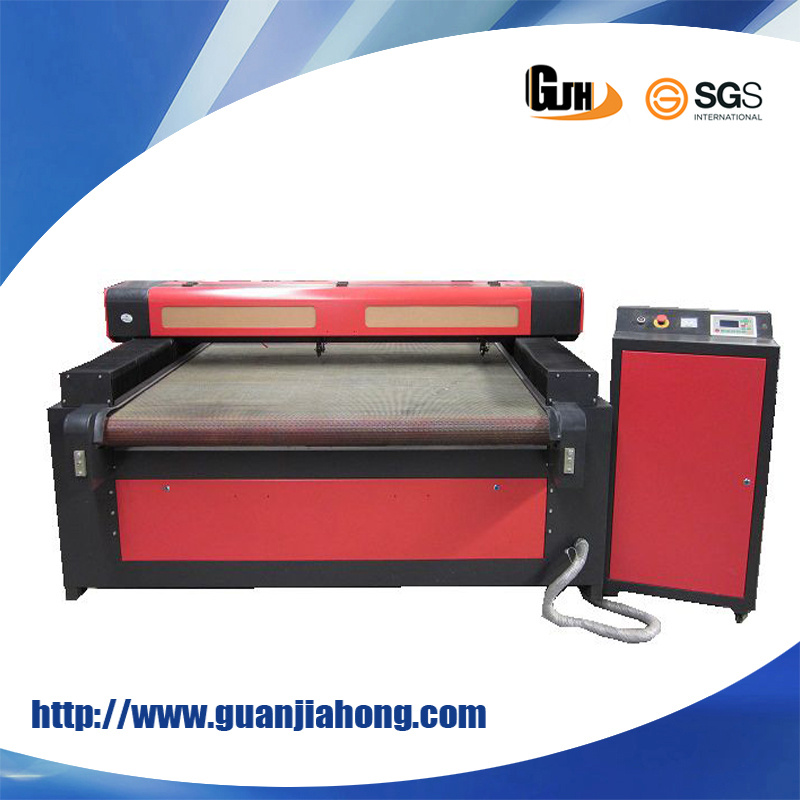

Automatic feeding laser cutting machine from professional cutting machine manufacturer
APPLICATIONS
1)Special for mass production and processing time limitation of garment industry.
1)The machine can not only cut on large format fabric but also on rolls of textile fabric with the automatic feeding device.
3)Garment, leather, stuffed toy, computerized embroidery and clipping industry.
4)Engraving or cutting: Wood, paper, leather, fabric, organic glass, epoxy resin, acrylic, woolen, plastic., Rubber, Ceramic tile, crystal, Stone, bamboo products and other non-metal materials
STANDARD CONFIGURATION
1)60W/80W/100W/150W
2)Update USB offline control system & large memory capacity to improve work speed & efficiency.
3)Lasercut or RDlaser.
4)Blades worktable.
5)Dust proof and Antipollution Design.
6)Double rails run, the belt transmit the workpiece.
OPTIONS
1)Chiller.
2)Servo motor.
3Red-light position.
4)Honeycomb worktable.
5)Double laser head.
Application industry: Advertising, LGP, model, art and craft, leather, clothing
Application materials: Acrylic, pleaxiglass, bamboo, leather, fabric and other
Nonmetal materials
| Model No. | DT-1610/2-W80 | DT-1812/2-W80 | DT-1814/2-W80 |
| Working area | 1600×1000 | 1800×1200 | 1800×1400 |
| Machine size | 2330×1630×1050 | 2530×1830×1050 | 2430×2030×1050 |
| Net weight | 400kg | 430 kg | 450kg |
| Machine power | 900_1450W
(Depending on the power of laser tube) |
| Laser type | (CO2 glass laser tube, water cooling) |
| Laser power | 50W/60W/80W/100W/130W |
| Max cutting speed | 800mm/s |
| Feeding precision | 1mm(within 1mm) |
| Format support | AI\DXF\PLT\DST\DSB\BMP\GIF\JPG\PNG\ICO |
| Format software | Tajima embroidery, Coreldraw, clothing CAD, bork, making sex and other commonly used software |
If you have specific requirement for auto feeding laser cutting machine, all specification can be customized.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
