Product Specifications
| Prod Model: |
DEK-1325J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Area: |
1300*2500mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

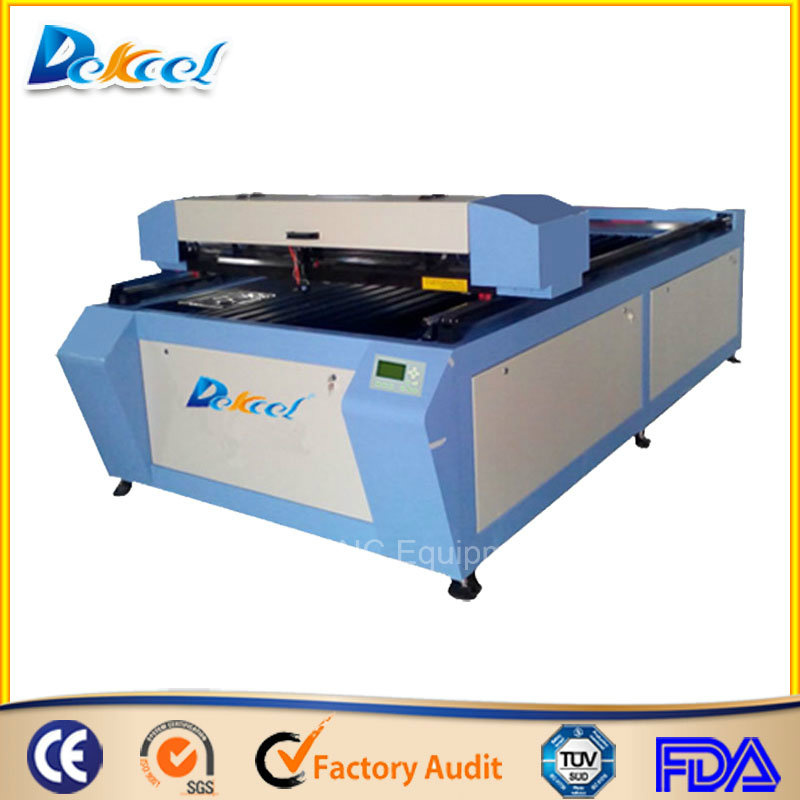

China manufacturer laser cutter machine DEK-1325J
Great characteristics of laser cutter machine
1. High speed laser cutting machine adopts the new high efficiency RECI laser tube,the laser beam is more stable than the troditional type, and the life time of the laser tube is very long.
2.Compared with the ordinary laser machine, the series adopts more scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion long term work.
laser cutter machine features
1).Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly
2).Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
3).Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal
display brings out much convenient operation and simpler maintenance.Special intelligent
pre-calculating system fully develops the potential of the engine and leads to high speed processing
of smoother curves and straight lines simultaneously.
4).Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM
software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
5). Off-line control system: Apply USB interface to communicate with computer under the system
of WIN98/NT2000/XP, which can instantly compete transmission.
Technical Detailes for laser cutter machine
Name: | DEK-1325 * MDF laser engraving cutting machine* |
Processing area | 1300mm*2500mm (4feet*3feet) |
Laser power | 80W,100W,130W,150W,260W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 3150mm*1920mm*1100mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-30mm acrylic (others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Driving system | stepper |
Option: | Up and down table, rotary attachment |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 350KGS after package |
laser cutter machine Applicable industry :
Suitable materials Acrylic, color plates, rubber, plastics, glass, leather, cloth, glass, ceramics, crystal, jade, bamboo products, wood products, MDF and paper.
Application Industry:
Advertisement decoration, gifts, packaging, printing, stone carvings, toys, electronics, model, paper products, construction and decoration industries .
Typical case: acrylic crystal characters, acrylic fish tank, ceramic crafts, rubber plate printing, appliqué, shaped mark, carved hollow leather clothing.
laser cutter machine factory
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
