Product Specifications
| Prod Model: |
DEK-6060F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600*600mm |
| Graphic Format Supported: |
Ai, BMP, Dxf, Plt |
| Power(W): |
150W/180W/275W |
| Dynamic Group: |
Three-Dimensional Dynamic |
| Laser Tube: |
Coherent or Rofin CO2 Laser Generator |
| Repeated Postioning Accuracy: |
0.003mm |
| Marking Speed: |
7000mm/S |
| Working Voltage: |
220V50Hz |
| After-Sales Service Provided: |
Engineers Available to Service Outside |
| Delivery Time: |
15 Working Days |
Product Description

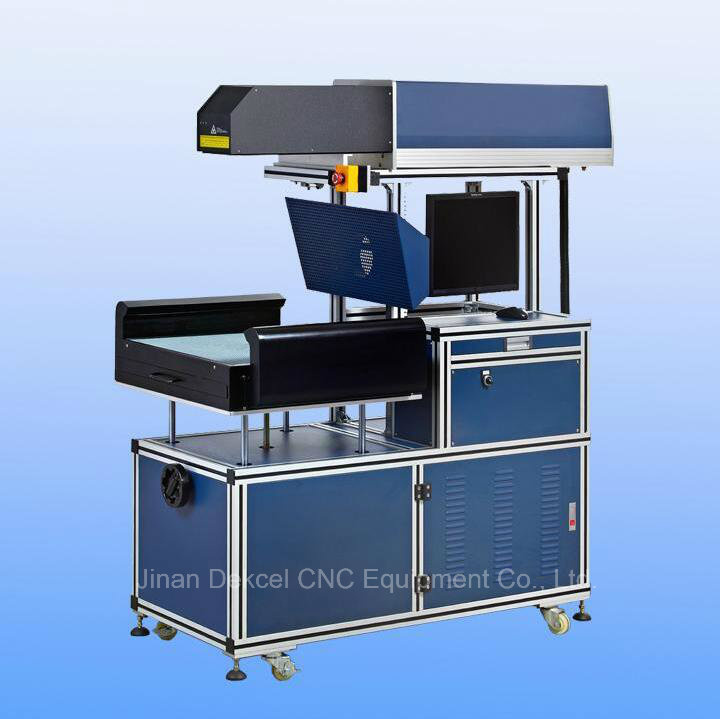

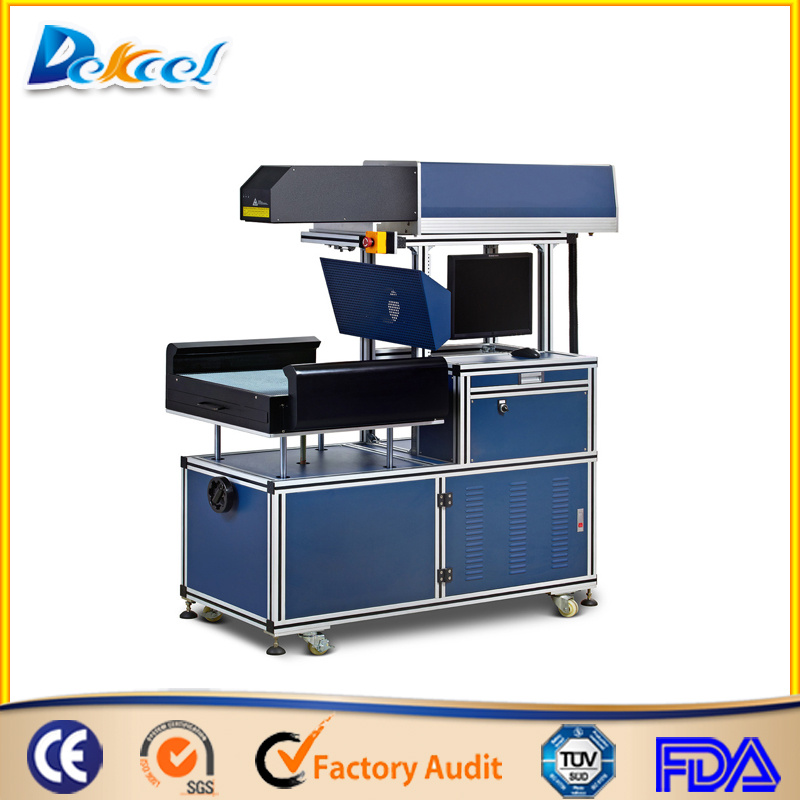

China good price 3D dynamic co2 laser marking machine for jeans and LGP
Equipment Performance
3D Dynamic Co2 laser marking machine with RF metal tube adopts the technology of pre-dynamic focusing, to display the thinner laser spot, faster marking speed and better effects. Viable with large scale engraving or cutting. Advantages as follow:
1, Compared with traidtional post-dynamic focusing marking machine, it's no necessary for Dynamic Co2 laser marking machine to
replace the different flat-field lenses to get different marking area. Thinner laser spot as well.
2, Fully enclosed laser optical system, no adjustment or maintenance needed, working at once after installation viable.
3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20000h.
4, High precision and speed performance with cutting&engraving working, 20% higher efficiency than similar models.
5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6, Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.
7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP ect supportive.
8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with leathers and footwears.Features of 3d dynamic laser marking machine
1.The 3D Dynamic 100W/150W Laser Cutting/Marking Machine mainly apply on the leather cloth materials.
2.Marking design is very smooth and exquisite.Marking speed is very fast.
3.Adopting high-speed galvanometer system, which imported from American.
4.with high speed,high presicion and stable performance.
5.Marking scope is very big,from 450x450mm to 650x650mm(adjustable).
6.Adopting imported CO2 RF laser tube and power supply.
7.Adopting imported optics lens,low loss, excellent focalization performance which has excellent,performance and can continue working for a long time.
3d dynamic laser marking machine technical parameter Model | CO2 dynamic laser marking machine | CO2 dynamic laser marking machine |
Laser wavelength | 1064um | 1064um |
Laser power | 150W | 275W |
Marking scope | 300*300mm--650*650mm(adjustable) | 300*300mm--650*650mm(adjustable) |
Marking speed | ≤7000mm/s | ≤7000mm/s |
Min line width | 0.02mm | 0.02mm |
Repeated postioning accuracy | ±0.003mm | ±0.003mm |
Average power consumption | ≤5.5kw | ≤5.5kw |
Cooling way | Water cooling | Water cooling |
Working voltage | 220V50Hz | 220V50Hz |
Working environment | 5ºC-35ºC | 5ºC-35ºC |
Applicable Fields
Dynamic co2 laser marking machine suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic,
marble, jade, crystal, cloth etc.
Wildly used in industries of arts&crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on
leather, decoration and architectural model.
Special Application in Clothing, like Jeans, Fabric, Leather, Cotton, Linen, Silk and etc.
Industrial or DIY production of Jeans, T-shirts, Shoes, Shirts, Underwear, Bags, Lace Caving, Leather Engraving, Jeans Logo Engraving,
Fabric Cutting and Engraving and etc.Co2 laser marking jeans samples
Special Application in LGP
Application Materail
Acrylic for LED Light Guiding Plate(LGP)
Application Industry
LCD, FPD, LED Backlight, LED Flat Lamp, LED Ultrathin Crystal Lamp, Crystal Photo Frame, Outdoor&Indoor Signs, Lighting Box, X-ray
Reading Box
1, 3D Dynamic laser marking machine focus adjustment with large engraving worktable to present fast process speed on different materials with various
thickness
2, Dekcel Laser specialliy designed scanning technology display high precision engraving performance and faster processing speed
3, Powerful software is capable for any drawing or halfone format, and especially suitable for continuous production for large quantities
and various designs.
4, Specially designed software for LGP Laser dotting.
5, Automatic generation of dotting design
6, Automatic gradual changes with dots sizes and distances
7, Integrated function of dotting design, vector drawing, marking, scribing and cutting
8, Support different light Input directions and styles
9, Support informal LGP design and dotting Works
FAQ
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
