Product Specifications
| Prod Model: |
DEK-1515-DY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600*600mm/1200*800 |
| Graphic Format Supported: |
Ai, BMP, Dxf, Plt |
| Power(W): |
150W/180W/275W |
| Dynamic Group: |
Three-Dimensional Dynamic |
| Laser Tube: |
Coherent or Rofin CO2 Laser Generator |
| Repeated Postioning Accuracy: |
0.003mm |
| Marking Speed: |
7000mm/S |
| Working Voltage: |
220V50Hz |
| After-Sales Service Provided: |
Engineers Available to Service Outside |
| Delivery Time: |
15 Working Days |
Product Description

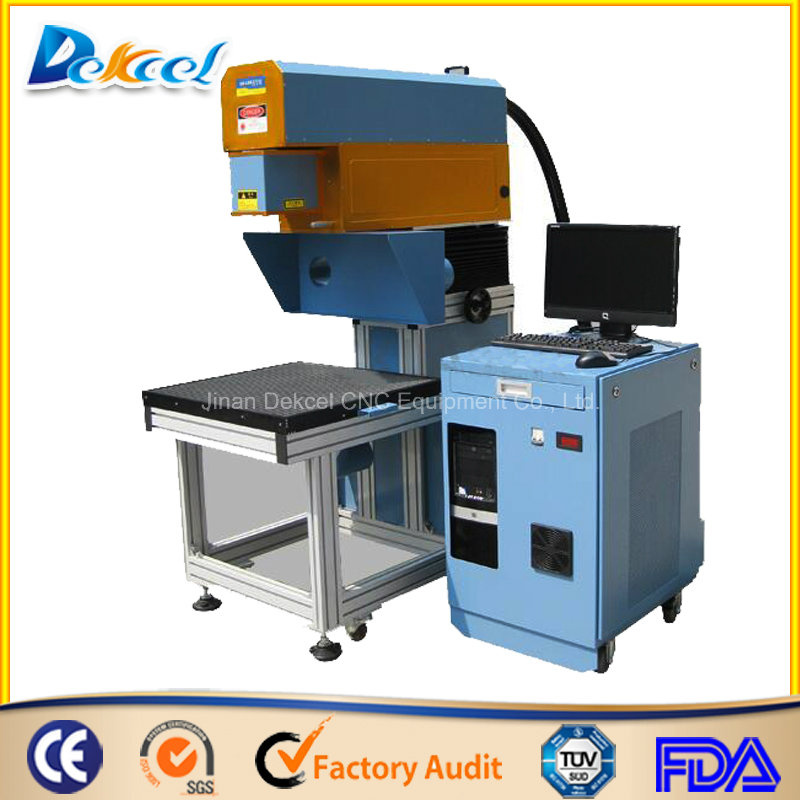

China 1500*1500mm LED light guide plate 3D dynamic focus CNC large size co2 laser marking machines for /LCD/FPD
LGP Dynamic focus laser marking systemThe machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal,
paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable
platform to ensure the stable qualities. The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by
pre-scanning gathered system to make a wildly adjustment for focus distance.
LGP Dynamic Focus Equipment Performance
3D Dynamic Co2 laser marking machine with RF metal tube adopts the technology of pre-dynamic focusing, to display the thinner laser spot, faster marking speed and better effects. Viable with large scale engraving or cutting. Advantages as follow:
1, Compared with traidtional post-dynamic focusing marking machine, it's no necessary for Dynamic Co2 laser marking machine to
replace the different flat-field lenses to get different marking area. Thinner laser spot as well.
2, Fully enclosed laser optical system, no adjustment or maintenance needed, working at once after installation viable.
3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20000h.
4, High precision and speed performance with cutting&engraving working, 20% higher efficiency than similar models.
5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6, Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.
7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP ect supportive.
8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with leathers and footwears.Features of 3D LGP Dynamic focus co2 laser marking jeans
1.The 3D Dynamic 100W/150W Laser Cutting/Marking Machine mainly apply on the leather cloth materials.
2.Marking design is very smooth and exquisite.Marking speed is very fast.
3.Adopting high-speed galvanometer system, which imported from American.
4.with high speed,high presicion and stable performance.
5.Marking scope is very big,from 450x450mm to 650x650mm(adjustable).
6.Adopting imported CO2 RF laser tube and power supply.
7.Adopting imported optics lens,low loss, excellent focalization performance which has excellent,performance and can continue working for a long time.
Co2 LGP dynamic focus laser marking jeans technical parameter Model | CO2 dynamic laser marking machine | CO2 dynamic laser marking machine |
Laser wavelength | 1064um | 1064um |
Laser power | 150W | 275W |
Marking scope | 300*300mm--650*650mm(adjustable) | 300*300mm--650*650mm(adjustable) |
Marking speed | ≤7000mm/s | ≤7000mm/s |
Min line width | 0.02mm | 0.02mm |
Repeated postioning accuracy | ±0.003mm | ±0.003mm |
Average power consumption | ≤5.5kw | ≤5.5kw |
Cooling way | Water cooling | Water cooling |
Working voltage | 220V50Hz | 220V50Hz |
Working environment | 5ºC-35ºC | 5ºC-35ºC |
Applicable Fields of 3d LGP dynamic focus laser marking machine
LGP Dynamic co2 laser marking machine suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic,
marble, jade, crystal, cloth etc.
Wildly used in industries of arts&crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on
leather, decoration and architectural model.
Special Application in Clothing, like Jeans, Fabric, Leather, Cotton, Linen, Silk and etc.
Industrial or DIY production of Jeans, T-shirts, Shoes, Shirts, Underwear, Bags, Lace Caving, Leather Engraving, Jeans Logo Engraving,
Fabric Cutting and Engraving and etc.Co2 3d LGP dynamic focus large size laser marking jeans samples
3D Dynamic Laser Marking Machine Special Application in LGP
Application Materail
Acrylic for LED Light Guiding Plate(LGP)
Application Industry
LCD, FPD, LED Backlight, LED Flat Lamp, LED Ultrathin Crystal Lamp, Crystal Photo Frame, Outdoor&Indoor Signs, Lighting Box, X-ray Reading Box
Equipment Features
1, 3D Dynamic focus adjustment with large engraving worktable to present fast process speed on different materials with various thickness
2, Sunic Laser specialliy designed scanning technology display high precision engraving performance and faster processing speed
3, Powerful software is capable for any drawing or halfone format, and especially suitable for continuous production for large quantities and various designs.
4, Specially designed software for LGP Laser dotting.
5, Automatic generation of dotting design
6, Automatic gradual changes with dots sizes and distances
7, Integrated function of dotting design, vector drawing, marking, scribing and cutting
8, Support different light Input directions and styles
9, Support informal LGP design and dotting Works
FAQ Question 1: I want to buy this machine,what suggestion can you give?Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture) Question 2: What's the delivery cost & time?Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP. Question 3: Have you exported to our country?Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries. Question 4: This is the first time I use this kind of machine, is it easy to operate?1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains, 2) Moreover, Skype, Team viewer online service is available for you, 3) Free training will offer you on our factory, Engineer is available to offer international service!4) Local agent service available is extending all over the world!This is the first time I use this kind of RF co2 laser marking machine . Is it easy to operate? Yeah. Don't worry about this. 1. English instruction book are sent to you free together with the RF co2 laser marking machine . 2. Free training course in our factory. Engineers are also available to serve overseas if necessary. 3. 24 hours technical support by calling, video and email. Training to Customer: 1).We will supply with the machine operation manual in English version For :installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer. 2). User can dispatch representatives to our factory for 2-3days for training. We are responsible for training them free of charge. While all the charges Including travelling charge and accommodation will be afford by the user. About paymentWe accept TT or Western Union. Paypal.Before you pay,we will make Proforma Invoice for you.all items will listed on there.About shipment by sea or by air for your optional. About delivery time:As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you. Our Package Advantage:1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.3.The outmost is wooden case with fixed formwork.4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport. Warranty and after-sale service: 1.12 months guarantee for whole machine free of charge 2.7*24 hours technical support by e-mail 3.Calling or door-to-door service,professional training to your workers 4.Use friendly English software, user manual and detailed Videos/CD 5.Priority to become our agent in your city,we offer you our factory price
