Product Specifications
| Prod Model: |
DEK-10WF20WF30WF |
| Engraving Depth: |
0.01~0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Repeatability Accuracy: |
±0.001mm |
| Guaranty: |
18 Month |
| Laser Module Life: |
>100000 Hours |
| Marking Line Speed: |
≤12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.02mm |
| Working Voltage: |
220V/50Hz/4A |
Product Description

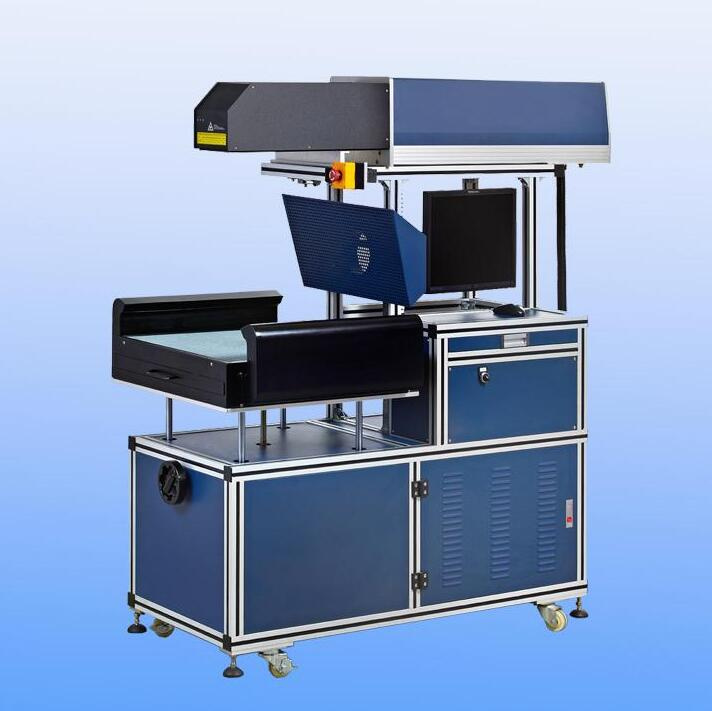

3D Dynamic CO2 Laser Marking & Engraving& Cutting Machine for jeans and LGP
Applicable Fields Dynamic co2 laser marking machine suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic,
marble, jade, crystal, cloth etc.
Wildly used in industries of arts&crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on
leather, decoration and architectural model.

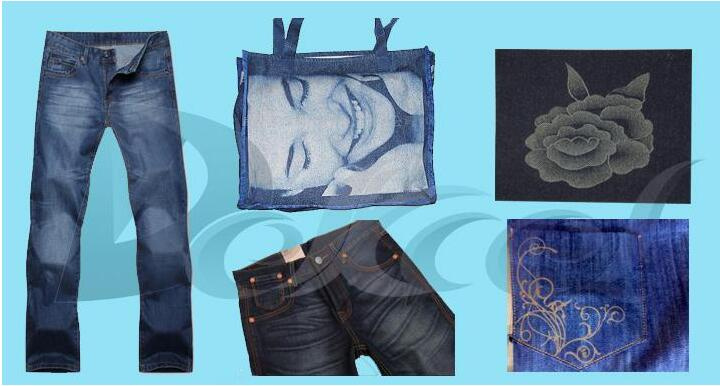

Special Application in Clothing, like Jeans, Fabric, Leather, Cotton, Linen, Silk and etc.
Industrial or DIY production of Jeans, T-shirts, Shoes, Shirts, Underwear, Bags, Lace Caving, Leather Engraving, Jeans Logo Engraving, Fabric Cutting and Engraving and etc.

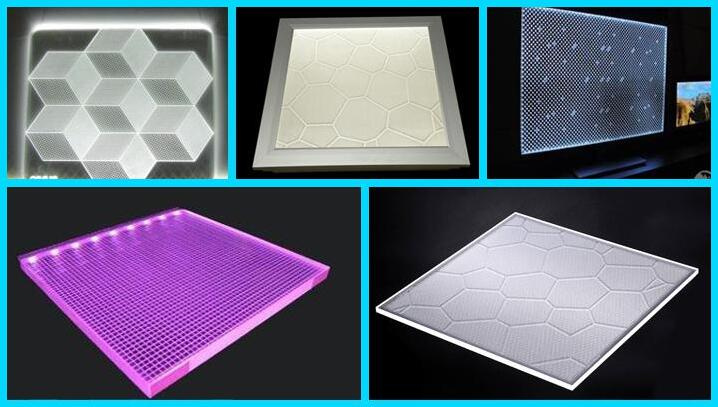

Special Application in LGP
Parameters of 3D Dynamic CO2 Laser Marking & Engraving& Cutting Machine for jeans and LGP| Model | DEK-DY-8080 | DEK-DY-1280 | DEK-DY-1515 |
| Laser Source Model | Coherent E150(USA) | Rofin OEM 20i(Germany) |
| Galvanometer Scanner | CTI Scanner(USA) |
| Laser Wavelength | CO2 Laser 10.64μm |
| Laser Power | 120W/150W/180W | 275W |
| Max.Marking Area | 800x800mm | 800x1200mm | 1500x1500mm |
| Worktable Type | Aluminum Worktable | 6.6mm Marble Worktable |
| Marking Speed | ≤10000mm/s |
| Repetition Precision | 0.01mm |
| Laser Frequency | 20kHz~200kHz |
| Min.Letter Size | 0.3mm |
| Power Consumption | ≤4kW | ≤7kW |
| LGP Dotting File | Automatic Generation |
| File Formats | PLT, DXP, BMP, JPG etc |
| Output Compatibility | AutoCAD, Photoshop, CorelDRAW etc |
| Power Supply | AC220V/25A/50Hz |
| Cooling Way | Circulation of Water Cooling |
Warranty of 3D Dynamic CO2 Laser Marking & Engraving& Cutting Machine for jeans and LGP
1).The warranty of machine is 18 months.
2)The warranty of the lens and laser tube is 6 months.3)The warranty is dated from Ex Factory Date.
4)During warranty, we will send the parts to you for repairing/replacing.
5)When the warranty is over, we will charge for replacing.
6)If there's any problem in future, we will give you tech support by sending email/telephone/skype/msn and we will send you tech documents to fix the problems.
7)The warranty is only valid for for customers who buy machine in the year of 2013.
Frequently Asked Questions of 3D Dynamic CO2 Laser Marking & Engraving& Cutting Machine for jeans and LGP
Q:Does your laser run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win
Q:Does your laser work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.
Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
Q:what's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1.the length of the tube,the longer the tube is, the more powerful.
2.the diameter of the tube,the bigger the tube is, the more powerful.
Q:Air way shipping time:
A:usually, we will need about 7 days to prepare the order after receving the payment.
and if send by DHL air way, it will need about 7 days to reach you.
so totally it will need about 14 days if you choose DHL air way to your door.
