Cheapjade, MDF, Metal, Paper, Leather, Plastic, Rubber, Crystal 3050 40W or 50W CO2 Laser Engraving Machine F

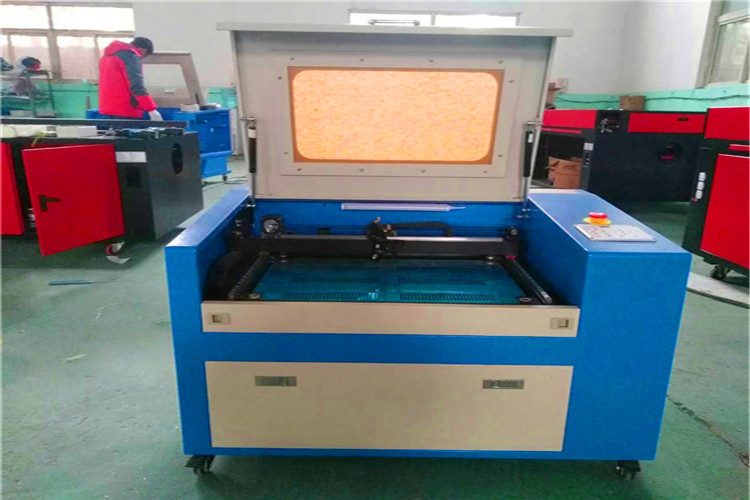

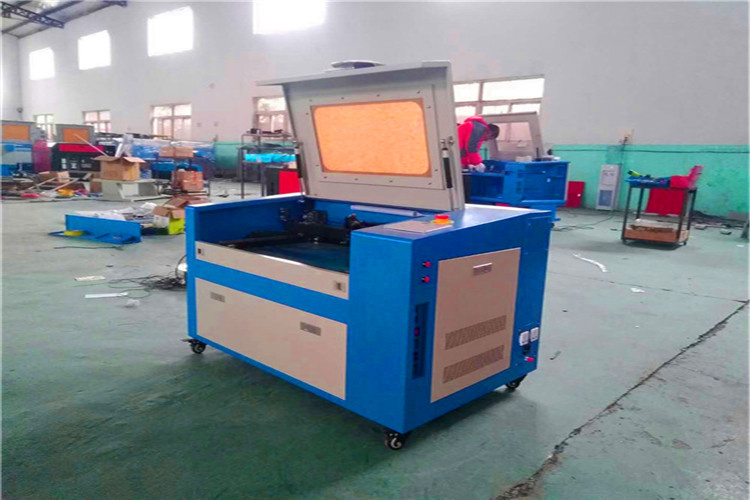

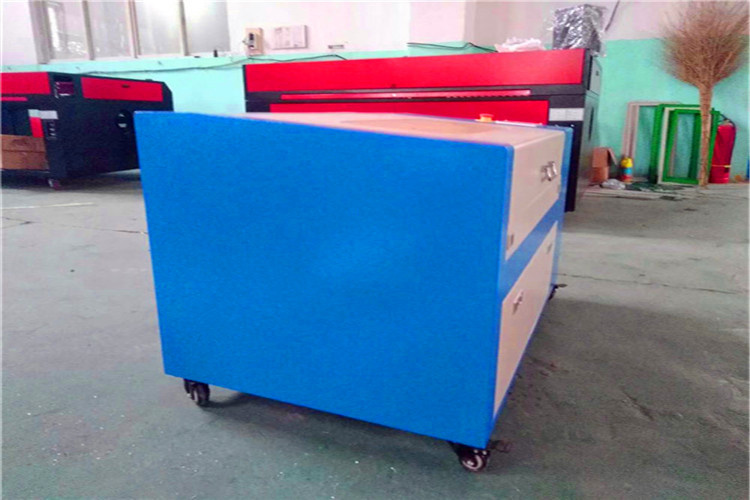

Name: Cheapjade, MDF, Metal, Paper, Leather, Plastic, Rubber, Crystal 3050 40W or 50W CO2 Laser Engraving Machine F
Brand: china-crystals.com
SKU: 732775072
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	3050/50W CO2 Laser engraver
Engraving:	300X500mm
Laser Power:	40-50W
USB Interface:	Yes
Driving Type:	Stepper Motor
Shipping Method:	Air or Sea Shipping
Delivery Time:	5-7 Working Days for 10sets
Repeatability:	0.01mm
Graphic Form:	BMP,Plt,JPG or Coredraw’s Images

Product Description

Features

1. It has Taiwan linear guide rail which can offer high speed motion speed and high accuracy engraving. The machine service time can be 10 years.

2. Multifunction display screen is easy for operation and friendly human - machine interface.

3. The machine has overheat protection, red light location and blows and flame retardants functions.

4.It adopts high quality focus lens and reflective mirror. The matured brand CO2 laser tube which has good laser spot and stable output laser power.

5. Lifting working platform can be optional for 40W machine. If 50W machine, it is standard configuration.

6. It also has water temperature indicator, power supply temperature indicator, centrifugal smoke exhauster and emergency stop switch and other spare parts.

7. 2mm thick steel is used to build the machine.

Specification:

1.Laser power:40W or 50W

2.Voltage:110/220V,50/60Hz

3.Laser power supply:MYJG series CO2 power supply

4.Engraving mainboard:Windcalxp15 and CoreLDRAW, Mosshidraw 106 series,etc.

5.Max engraving area:300x500mm

6.Driving type: stepper motor

7.Max engraving speed:800mm/second,0-60000mm/min

8.Lifting lift platform: optional for 40W machine. Its range is 180mm

9. Graphic format: BMP,PLT,JPG or Coredraw's images

10. Repeatability:0.01mm

11. Resolution:1000DPI

12.Interface:USB

Application materials

Apply on jade,MDF,metal,paper,leather,plastic,rubber,crystal and other non metal material.

Welcome to Jinan Ruby Laser Technology Co., Ltd(Short for Rubylasertech). Seven years ago, it once worked as a premier provider to develop CO2 power supply, YAG pulsed or CW power supply for laser engraving or cutting machine. From then on the company devotes its time and energy to various laser and optics solutions to machine factory in China and other countries. Up to now, it has rich experience to offer high quality products and service to factories or machine users.

Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber marking machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg, fiber laser, scanning galvanometer, motor, laser cutting control system) to build machine and make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany, USA and Japan.

Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, it is Rubylasertech's wish to let worldwide client enjoy convenience and delight brought by its product.
