CE Standard Engraving Cutting CNC Router Woodworking Machinery
| Price: |
US $ 4900-5300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Money Gram |
Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Woodworking Machinery |
| Working Area: |
1300*2500*200mm |
| Spindle Power: |
3.0kw Water Cooling Spindle |
| Table: |
T-Slot and Vacuum Table Combined |
| Transmission: |
X Y : Gear Z : Ball Screw |
| Guid Rail: |
Taiwan Hiwin Guid Rail |
| Drive System: |
Stepper Motor and Drivers |
| Inverter: |
Fuling/Delta Inverter |
| Control System: |
Nk105 DSP |
| Software: |
Artcut/Artcam |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

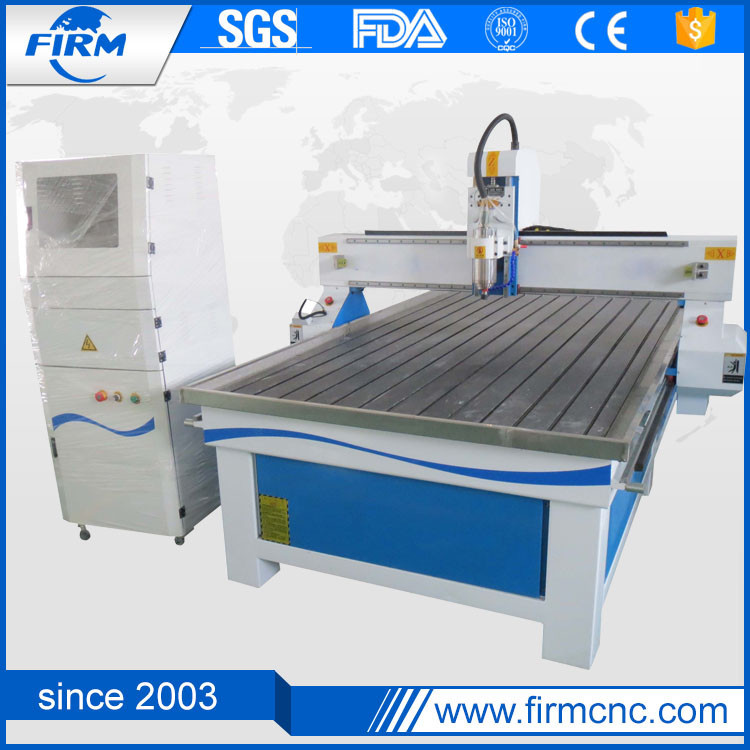

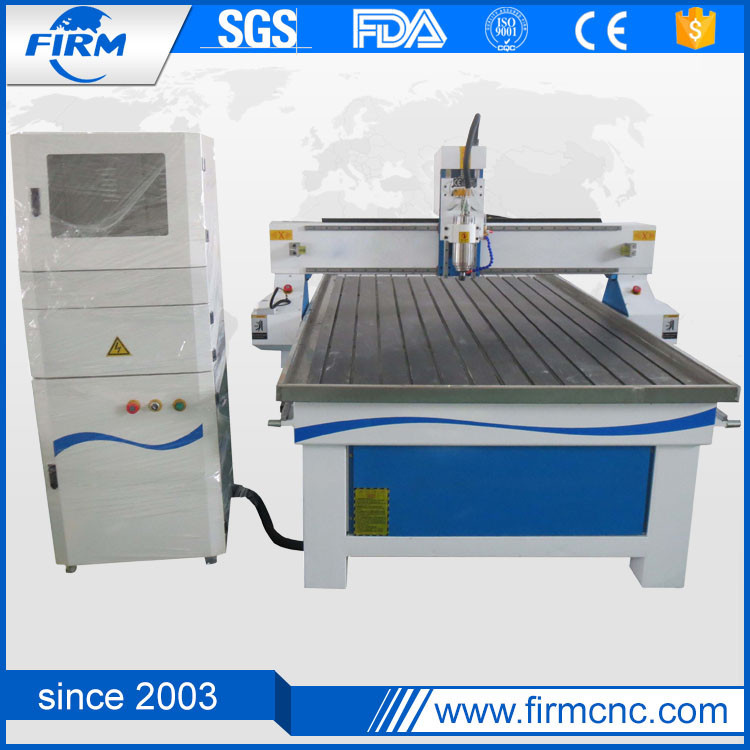

CE Standard wood engraving cutting cnc router woodworking machinery
1.Machine Features
1) Heavy duty structure can keep a good stability.
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer ( can be completely off-line operation. ), provides high independence and great convenience for operation.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.

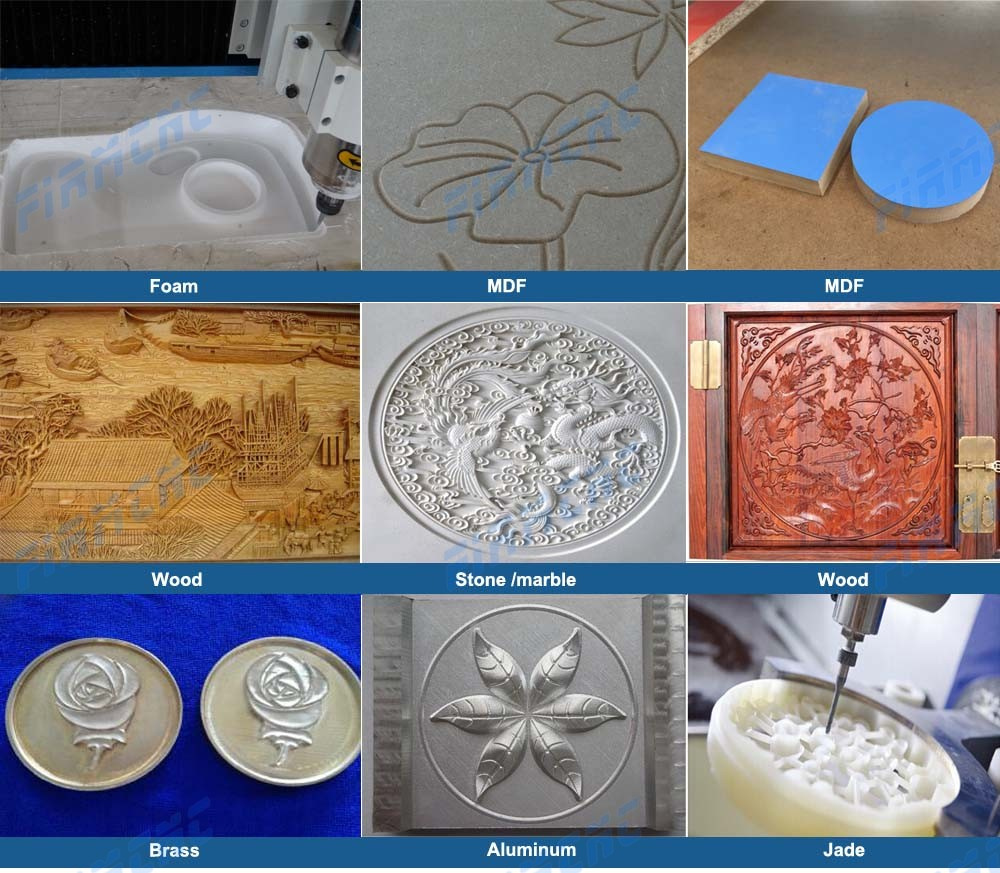

2.Application Industry and Materials:
Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
---Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
---Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
---Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
---Musical instrument industry: instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry: showcase, etc.
3.Parameter | Brand | Firm |
| Model | FM-1325 |
Engraving area
(W*L*thickness)(mm) |
1300*2500*200 |
| Working Form | Full-automatic |
| Spindle Power | 3.0KW water cooling spindle/Italy HSD air cooling spindle |
| Spindle Rotate(rpm) | 0~24000 |
| Motor Driver | Stepper motor (Chinese servo motor or Yaskawa
servo motor is optional) |
| Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
| Machine Structure | Industry square tube structure |
| Transmission System | Taiwan TBI ball screw or high accuracy gear rack |
| X,Y,Z Rail | Taiwan HIWIN square rail |
| Mechanical Accuracy | <0.03/300mm |
| Engraving Speed(mm/min) | 8000~12000mm/min |
| Feeding Speed | manual |
| Data Transmission | USB or PC connect |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
| Support Format | G Code or HPGL |
| Range of Application | Woodworking relief engrave ,Cutting , Hollow |
| Machine Net Weight | 1200Kg |

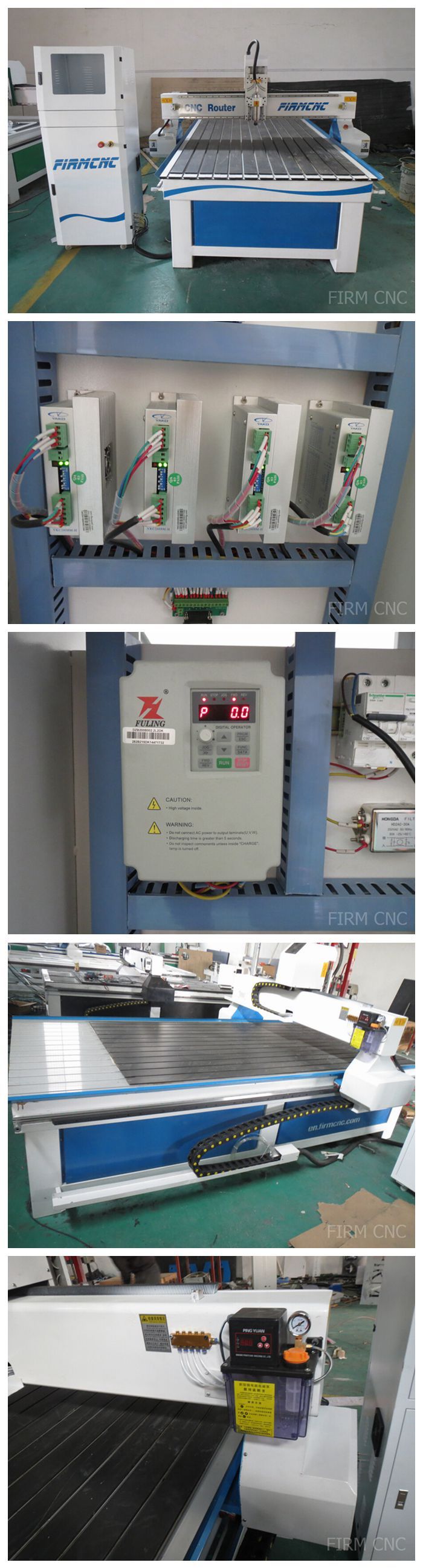

4.The detail parts of our wood machinery:

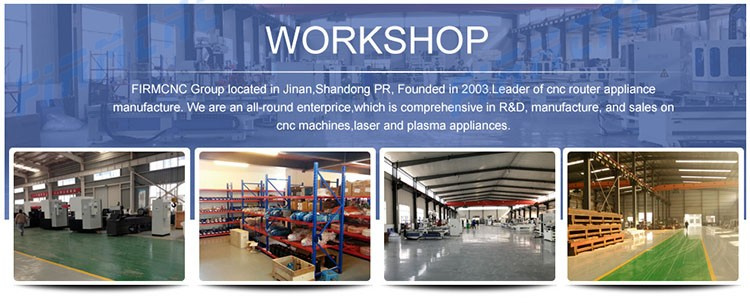

5.Woshop and factory show:

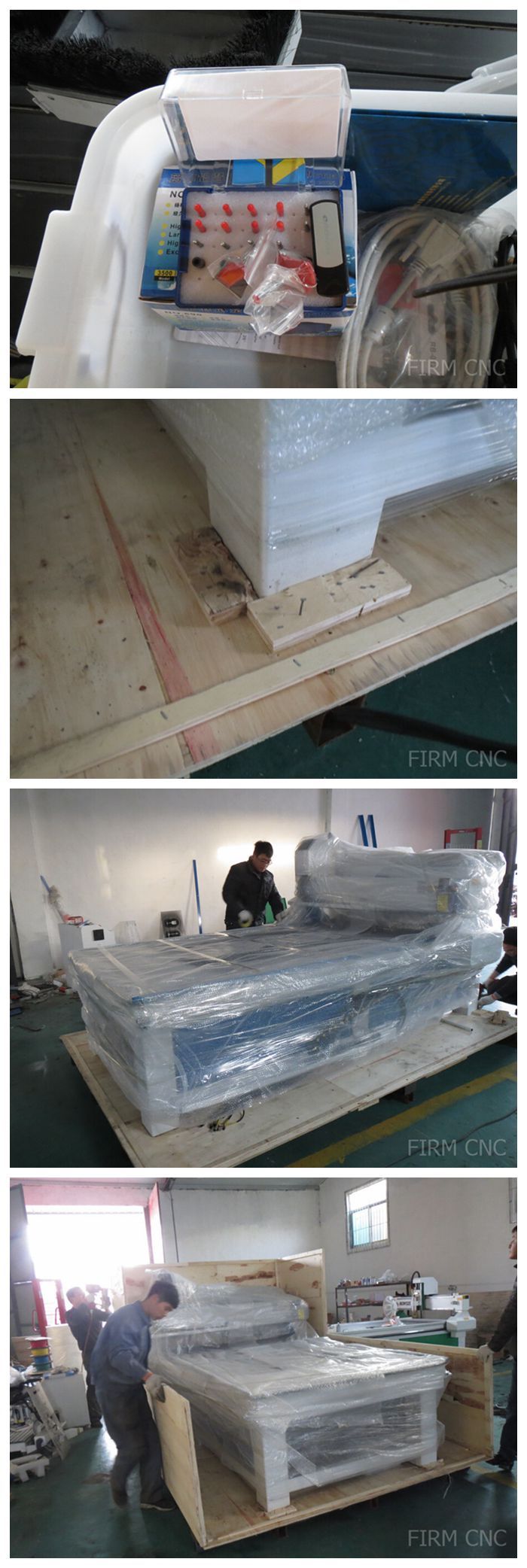

6.Packages
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading. JINAN FIRM CNC EQUIPMENT CO.,LTD
