Product Specifications
| Prod Model: |
DEK-050 |
| Engraving Depth: |
0.01~0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Repeatability Accuracy: |
±0.001mm |
| Guaranty: |
18 Month |
| Laser Module Life: |
>100000 Hours |
| Marking Line Speed: |
≤12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.02mm |
| Working Voltage: |
220V/50Hz/4A |
Product Description

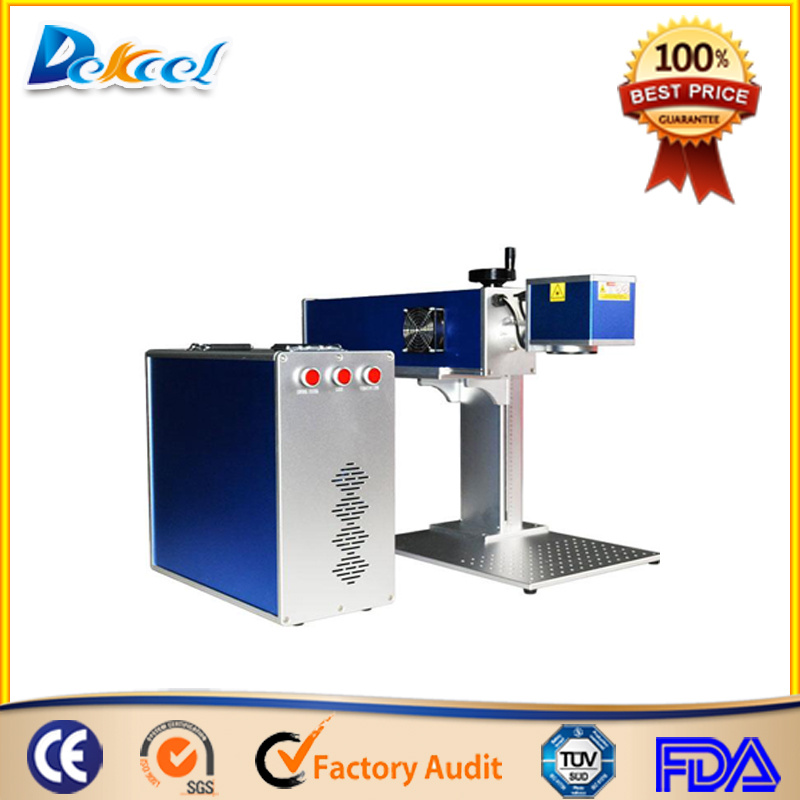

Portable CO2 Laser Markinfg Machine Laser Marker for wood, Acrylic, paper
Features:
High marking precision,fast speed,depth engraving control at will,high laser power,can be applied to a variety of non-metallic products for carving and cutting.It has many advantages,such as low cost,laser operating life is up to 20000-30000 hours, marking a clear, high-carving and cutting efficiency, environmental protection, energy saving.
Application advantages:
A variety of non-metallic materials and products marking, carving, engraving, nicking. It can proceed marking/carving/engraving/nicking a variety of text, symbols, graphics, images, barcodes, serial numbers,etc
2 Technology Parameters of Co2 laser marking machine
| No. | Description
| Parameter |
| 1 | Model | DEK-2020F |
| 2 | Laser power | 80W |
| 3 | Working area | 100*100mm(or optional) |
| 4 | Laser Wavelength | 10.64μm |
| 5 | Response time | 0.5ms |
| 6 | Frequency of pulse | ≤ 30KHZ |
| 7 | Max marking depth | ≤0.3mm (adjustable according to materials) |
| 8 | Marking speed | 0-7000mm/s |
| 9 | Marking lines | 1-10 lines(in the marking area) |
| 10 | Minimum line width | 0.1mm |
| 11 | Minimum character | 0.4mm |
| 12 | Repeatability accuracy | ±0.01mm |
| 13 | Resolution ratio | 0.1mm |
| 14 | Marking content | Text,pattern,date,bar code,etc |
| 15 | Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| 16 | Operation system | Microsoft Windows XP or Windows 2000 |
| 17 | Control software | China marking control software or laser2.1 marking control software |
| 18 | Unit power | ≤ 1.2KW |
| 19 | Operation temperature | 5°C-40°C |
| 20 | Relative moisture | ≤ 90%,no fog |
| 21 | Supply Voltage | 220V/50Hz/15A |
| 22 | Cooling method | water cooling |
3 Applicable Industries of Co2 laser marker
Craft gifts,furniture,advertising signs,model marking,food,packaging,electronic components,pharmaceutical packaging,printing plate,shell plate,so on.
4 Applicable Materials of Co2 laser marking machine
Leather cloth,wood products,paper packaging,plastics,glass ceramics,resin plastic,PCB,rubber, glass, ceramic tile,marble,jade,crystal,and other non-metal hard materials
5 Warranty
1).The warranty of Co2 RF Metal Tube Laser Marking Machine for wood plastic is 18 months.
2)The warranty of the lens and laser tube is 6 months.
3)The warranty is dated from Ex Factory Date.
4)During warranty, we will send the parts to you for repairing/replacing.
5)When the warranty is over, we will charge for replacing.
6)If there's any problem in future, we will give you tech support by sending email/telephone/skype/msn and we will send you tech documents to fix the problems.
7)The warranty is only valid for for customers who buy machine in the year of 2013.
6 Frequently asked questions about Co2 laser marker
Q:Does your Co2 laser marking machine run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win
Q:Does machine work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.
Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
Q:what's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1.the length of the tube,the longer the tube is, the more powerful.
2.the diameter of the tube,the bigger the tube is, the more powerful.
Q:Air way shipping time of the Co2 laser marking machine:
A:usually, we will need about 7 days to prepare the order after receving the payment.
and if send by DHL air way, it will need about 7 days to reach you.
so totally it will need about 14 days if you choose DHL air way to your door.
