Product Specifications
| Prod Model: |
DEK-6090G |
| Working Area: |
600*900mm |
| Control System: |
Weihong Nk105 DSP Control System |
| Z Axis Transmission: |
Taiwan Tbi Transmission |
| Spindle Power: |
2.2 Kw Air Cooling Spindle |
| X Y Axis Transmission: |
Gear and Rack Transmission |
| Motor And Driver: |
Leadshine Stepper Motor and Drivers |
| Inverter: |
Fuling Inverter |
| Dimension(L*W*H): |
3110X1800X1550mm |
| Weight: |
1500kg |
| Voltage: |
380V/50Hz |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

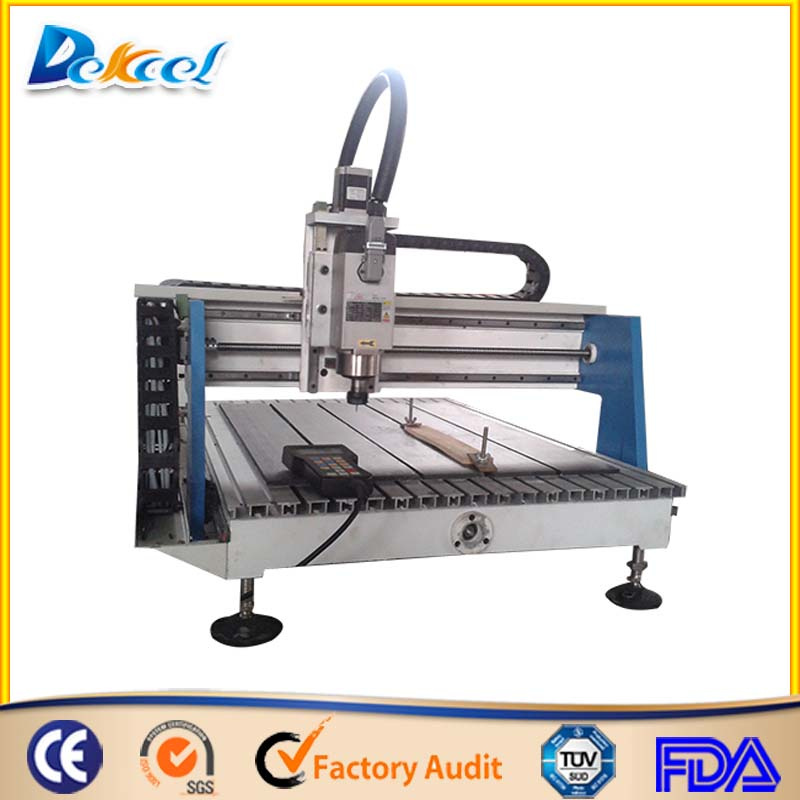

Features of hobby cnc wood router
1. X, Y axies Transmission: Helical tooth rack and pinion, faster speed than straight tooth with higher accuracy.
2. The Machine adopts seamless welded steel structure and performance is strong, not deformed.
3. NC studio control card: Introduction, convenient, easy to learn. The user can quickly use the
Equipment, strong independence.
4. The machine system has the functions of continuing carving after power failing and breakpoint.
5. Y axis adopts dual drivers design, dual drive power, making sure the process precision of the workpiece.
6. The machine adopts all good components and parts, long service lifetime.
7. Guide rail and transmission part from Taiwan, top quality.
8. Workpiece clamps fixture, vacuum adsorption optional.
Application of cnc wood engraving machine for sale:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word aking, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Relief sculpture and 3D engraving
Parameter of cnc router for wood engraving sale:
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 600mmx900mm |
| 2 | Table Size | 1450mmx2940mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300 |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | 3.0Kw (Without spindle) |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 2.2KW |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Servo motor System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | Ncstudio System (options: DSP/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3750mmX2250mmX2100mm |
| 26 | N.W. | 1750KG |
| 27 | G.W. | 2190KG |
| 28 | Optional Parts | Columbo Air Cooling Spindle |
| Syntec Control System |
| Dust Collector |
| Vacuum Pump |
| Rotary System |
| Mist-cooling System |
| Delta / Panasonic Servo Motors |
FAQ:
Q1.how to get the most suitable machine and best price?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine
freely.And if you are busy ,we will have the special engineer to your country,but you need to bear
some fee,like tickets and hotel and meal.
Q3.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
One year and during the time,if you have any questions ,we will solve it for free.
Q5.How to maintenance the CNC Router?
1. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work.
2. Repair and replacement the parts, please first confirm the specifications of the technical.
3. Regular clean the cooling system.
4. Should always monitor the voltage and electricity grid of the CNC Router.
5. Prevent the dust into the machine.
Q6 How can i confirm machine?
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
If you can provide some pictures of your products,that would be great!
If you have any questions,please contact me,thanks.
Warranty & Service
1,12 months for the whole machine. We offer life-long technical support by call, email
2, Our technicians & Me can give you remote guide online (Skype or MSN) if you have any question
3, We can record videos of operating the machine
4, Free training course in our factory
5, Engineer available to service machinery overseas 12 months for the whole machine.
