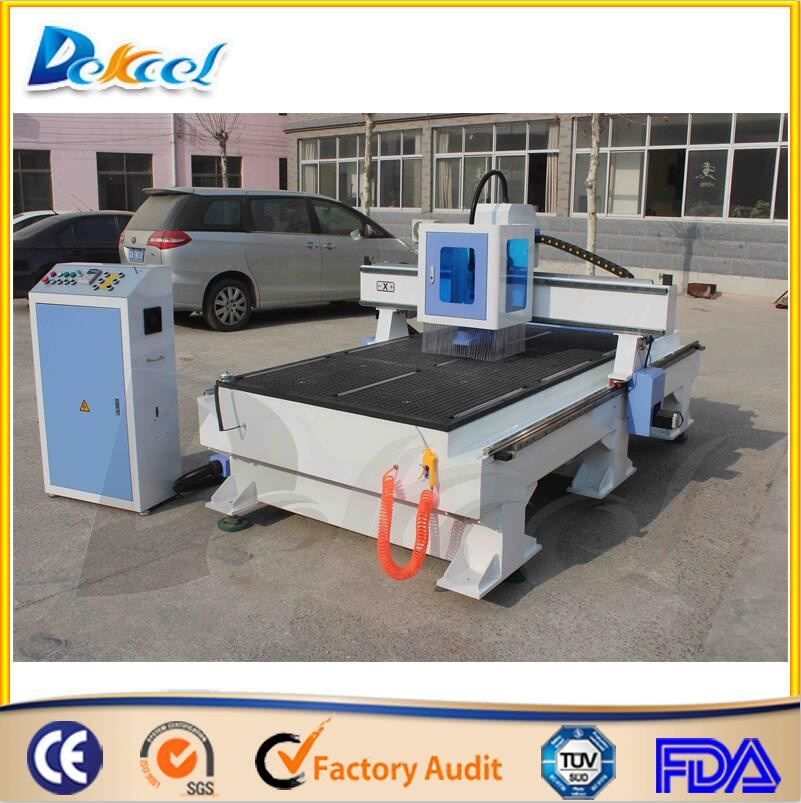

3kw 4.5kw 1325 3D Wood CNC Router

Product Specifications

Prod Model:	DEK-1325M
Voltage:	380V, Single Phase, 50/60Hz
Working Area:	1300*2500*200mm
Spindle Power:	3.0kw
Motors:	Stepper Motor
Operating System:	DSP Control System
Inverter:	3.5kw Fuling Inverter
Drivers:	Leadshine Drivers
Transmission:	Taiwan Tbi Ballscrew
Table Surface:	T-Slot Extrusion PVC
Warranty:	12 Months
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO

Product Description

3kw 4.5kw 1325 3D wood cnc router

Our cnc router is mainly applied in wood working industry, furniture industry for furniture decoration, wooden door and window frame processing, and wooden handcraft making industry, manufacturing sewing machine table and cabinet panels, etc. Our  wood cnc router are not exclusively applicable for wood engraving, wood cutting ;but also can be sued for engraving on Acrylic Engraving, Acrylic Cutting, PVC Engraving, PVC Cutting ,Stone Engraving, Stone Cutting, Metal Engraving, Metal Cutting, etc.

Special Feature for cnc router :
1) Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)
2)Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine
3) The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.
4) Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 12m/min.
5)  Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them
6)  This model uses domestic-leading PCI controlling system. It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission, the maximum speed can reach 30m/m. It can engrave the graph clearly.
 7)It equipped with aluminum work table with special design, which can endure much weight. On the base of PEM-1325A, it uses the vacuum work table, which can adsorb the wood dust, and make the environment clean. And it adopts a more advance XYZ Auto-oil-feeding system.

Option parts of cnc router

1.Dust collector system
2.Oil mist cooling system(used for cooling cutters when working on hard materials)
3.NC Studio controller system
4.Delta or YASKAWA servo system
5.HSD spindle from Italy


Applicable Industry of cnc router

1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Technical parameter of cnc router


CNC Router DEK-1325-3.0KW
Items		parameters
Working areas	X	1300mm
	Y	2500mm
	Z	200mm
Transmission  systems	X	Helical Rack gear and pinion drive
	Y	Helical Rack gear and pinion drive
	Z	TBI Ball screw drive
Guide rails  system	X	Taiwan HIWIN linear square rails HGH20AC
	Y	Taiwan HIWIN linear square rails HGH20AC
	Z	Taiwan HIWIN linear square rails HGH20AC
Spindle	Power	3.0KW
	Speed	24000rpm
	Cooling type	water cooling
	Origin	China
Drive systems	X	Lead-shine hybrid servo motor with driver
	Y	Lead-shine hybrid servo motor with driver
	Z	Lead-shine hybrid servo motor with driver
Fixtures		3mm thickness heavy Aluminum T slot table
Machine body		Heavy duty machine body welded with 8mm steel tube
Software environment		Windows98/2000/XP
Control systems		WEIHONG NK105 DSP CONTROLLER
Compatible files format		G code;u00;mmg;plt
Compatible software		Artcut/type3/artcam
Working voltage		AC380V/220V
Table size		1400*3000mm
Max work speed		15m/min
Interface type		PCI
Optional parts		Vacuum table system Servo motor with driver Italy HSD air cooling spindle Dust collector Rotary axis

After-Sales Service

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have anyproblems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.


In order to choose the most suitable cnc router for you,Pls Kindly confirm the following questions:

1.what material you want to engraving or cutting?
2.The Max.size about your material.(width*length*thickness)
3.Your requirement about the machine.
4.We can design the machine as customer required.
