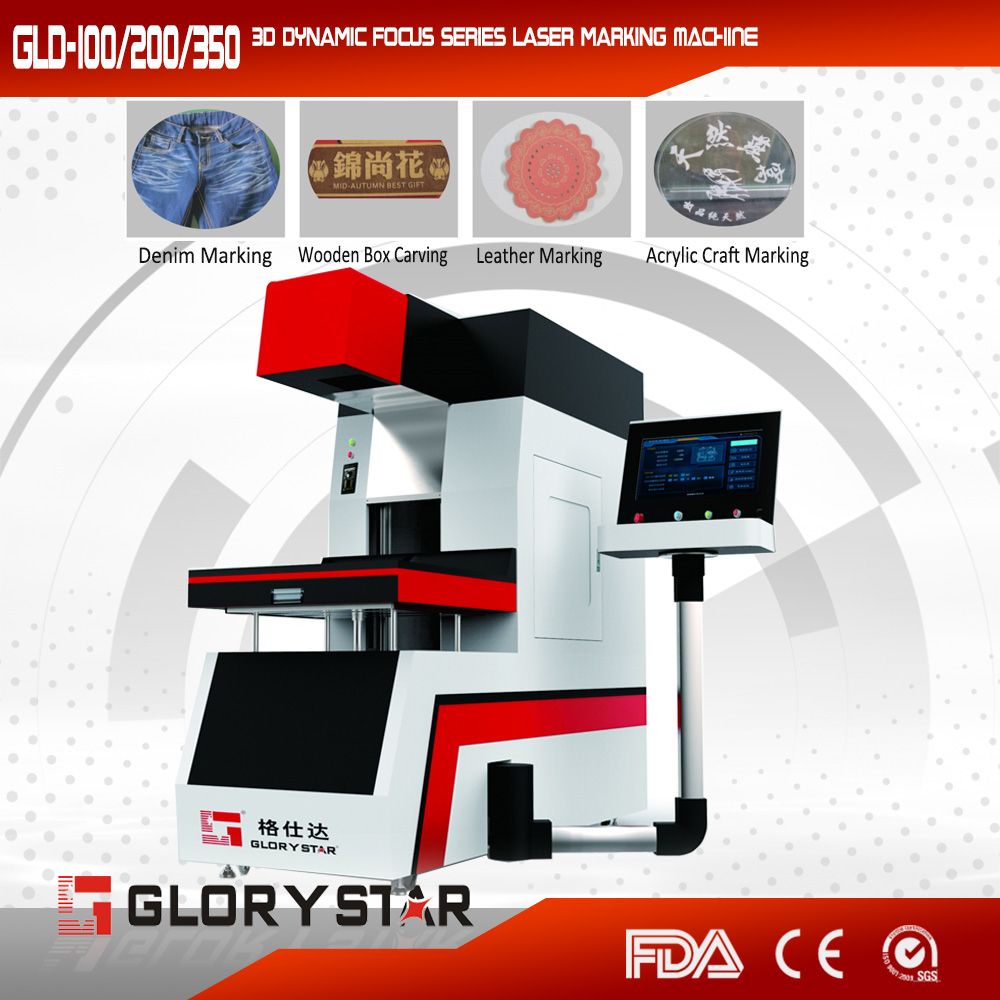

3D Dynamic Marking Machine for 3D Laser Crystal Engraving
| Price: |
US $ 29000-60000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
GLD-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS, Ce, ISO 9001, FDA |
| Condition: |
New |
| Engraving Machine Type: |
Laser Marking Machine |
| Usage: |
Non-Metal Materials Marking |
| Power: |
100W - 275W |
| Model No: |
Gld-100/ Gld-150/ Gld-275 |
| Laser Power: |
100W / 150W / 275W |
Product Description

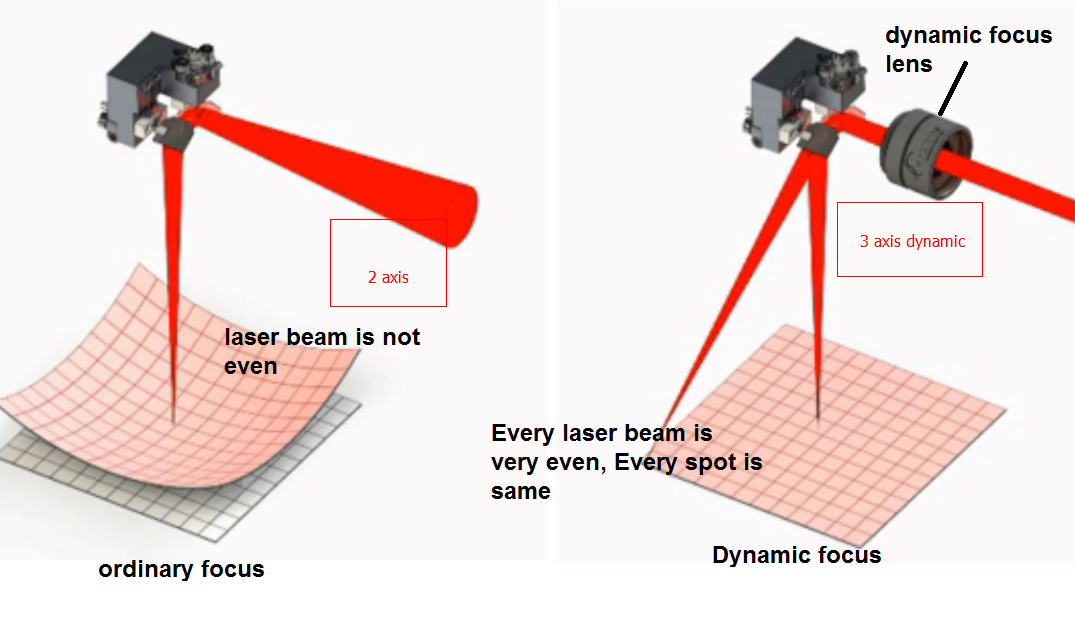

3D Dynamic Marking Machine for 3D Laser Crystal EngravingProduct FeatureAccording to the demand of domestic and foreign markets, Glorystar R&D team well designs and develops this model for various industries. It adopts original imported RF laser modules from USA and Germany to ensure the high marking speed, precise beam quality, stable output performance and long lifetime. Under our professional software control circumstance, the combination of USA digit scanner head and 3D dynamic focal system can make the full advantage use of laser application.

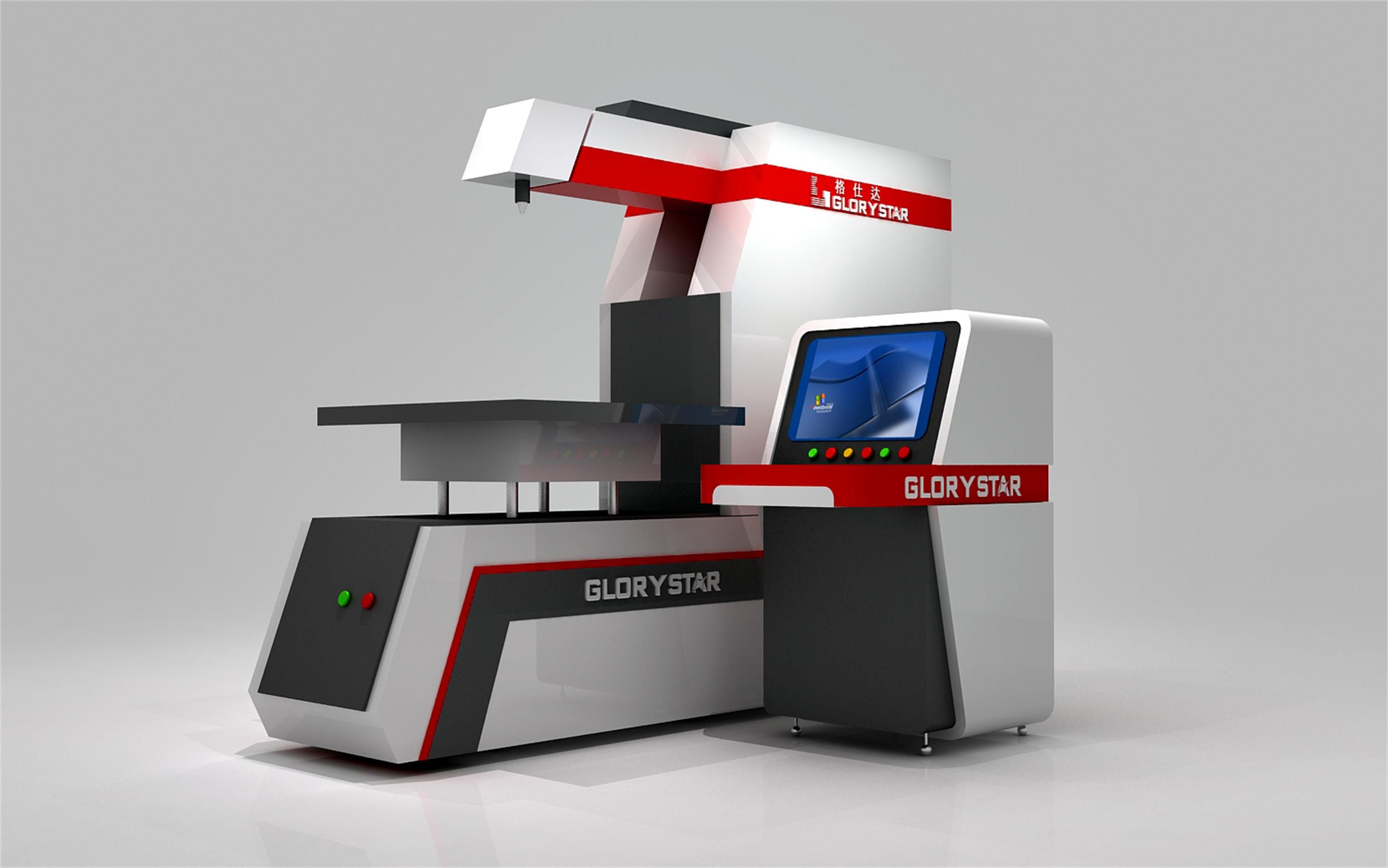

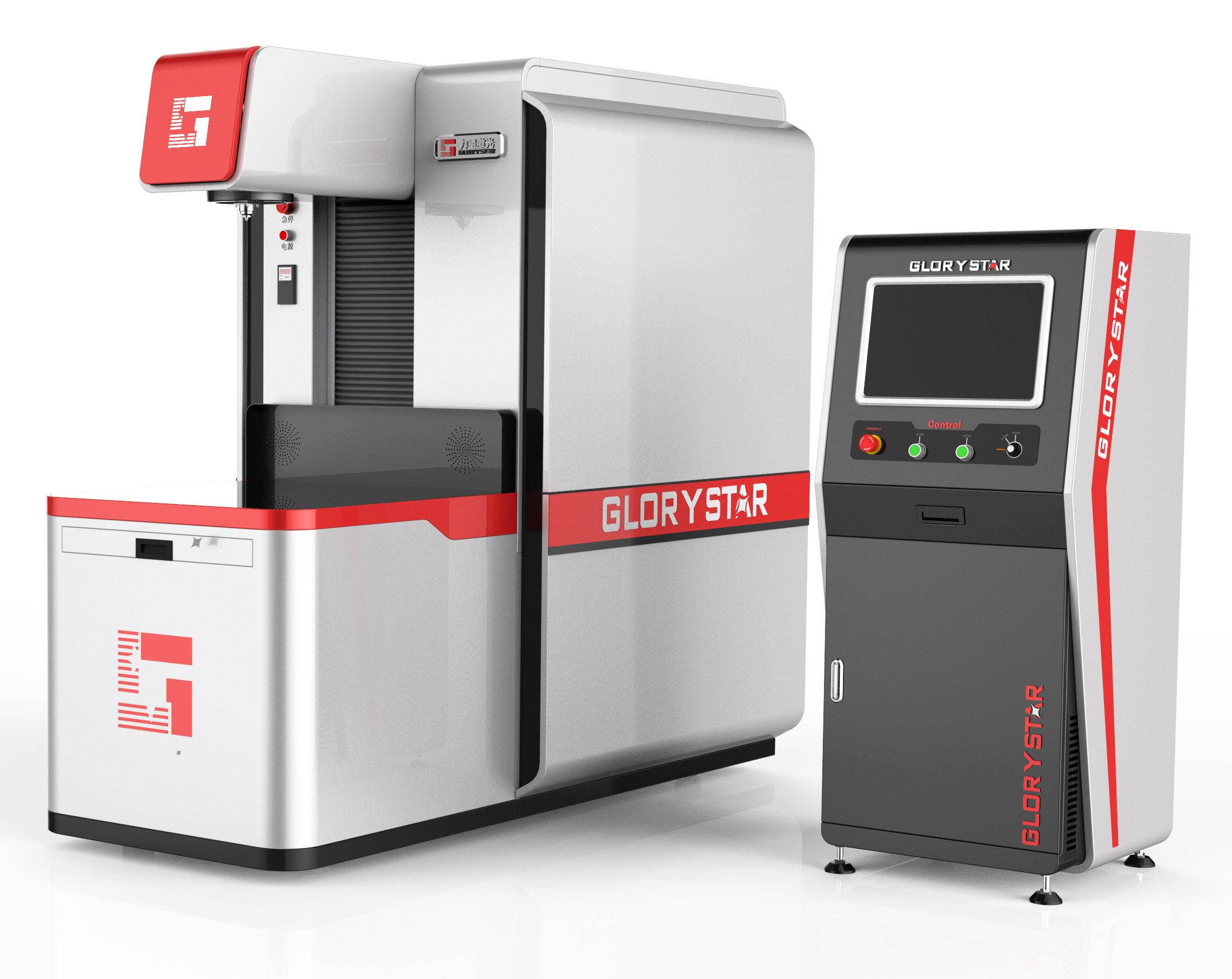

New Design
Technical Data| Model | GLD-100/150/275 |
| Wavelength | 10.64um |
| Average Power | 100W/150W/275W |
| Pulse Frequency | 0-130KHZ |
| Marking Area | 550mmx550mm/650mmX650mm/ 800mmX800mm |
| Max. Linear Speed | 7000mm/s |
| Dynamic Axial Response Time | < 4ms |
| Min. Character | 1mm |
| Repeat Accuracy | ± 0.02mm |
| Cooling System | Water-cooling |
| Average Power Consumption | ≤ 3.5KW |
| Power Voltage | AC220V 30A 50Hz(60Hz) |
| Marking Graph | User-defined character, CAD data |
| Supported Format | BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Working Humidity | 45%-75% |
| Environment Temperature | 10 º C -30º C |
| GLD-100 | Working Area:
550mmX550mm | G. W.: 330KG | Packing Dimension:
1800X1600mmX1800mm |
| GLD-150 | Working Area:
650mmX650mm | G. W.: 340KG | Packing Dimension:
2000X1600mmX1800mm |
| GLD-275 | Working Area:
800mmX800mm | G. W.: 350KG | Packing Dimension:
2200X1600mmX1800mm |
Optical DesignIt adopts the whole-sealed laser optical system, free maintenance without adjustment. Therefore, it can be put into use whenever it is fixed.
Mechanical DesignThe 3 axis laser scanning system have compact structure, dust-proof, easy and accurate assembly, strong anti-jamming features. It has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design, which ensures the stability of system under the conditions of long-time running.
Application IndustriesFootwear, apparel, arts & crafts, bamboo and wooden products, advertisement decoration, packing, architectural model and so on.
MaterialsLeather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade, crystal, fabric and other non-metal materials.

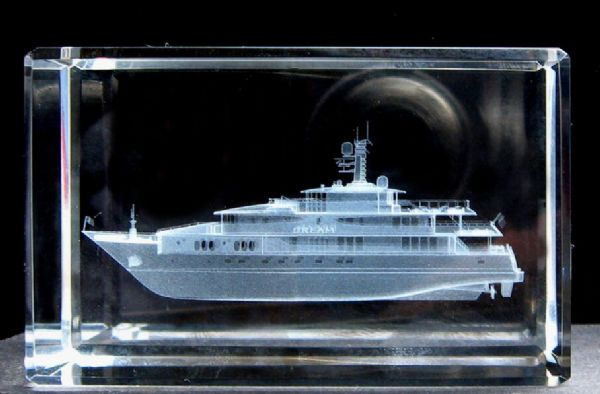

Samples ShowCrystal Marking

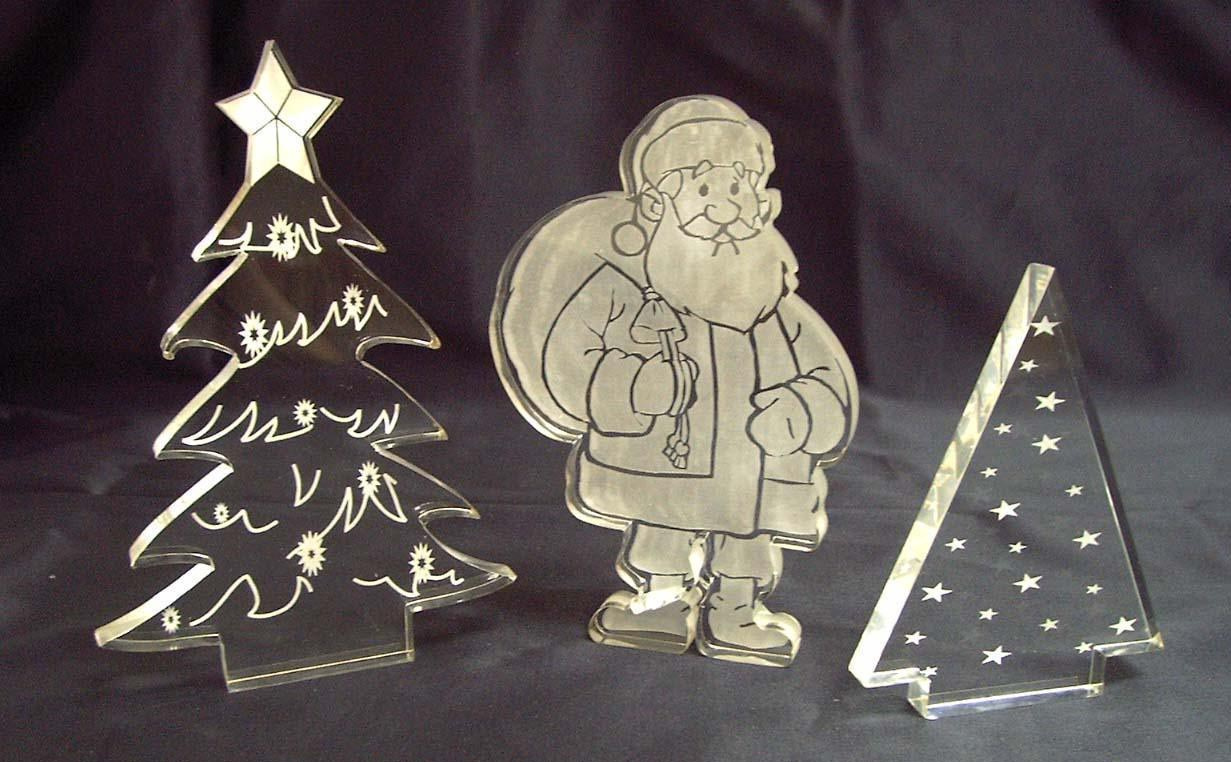

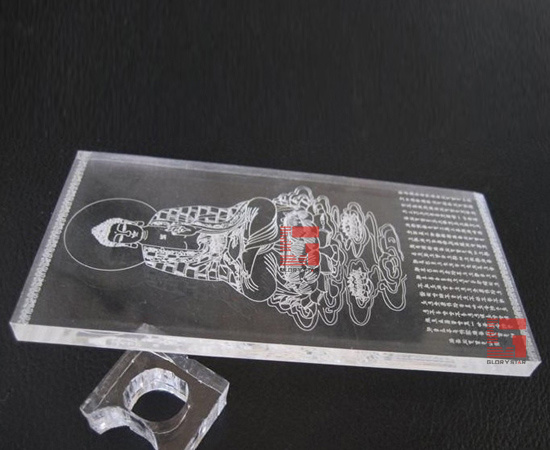

Acrylic Marking
After-sale Sevice<<< We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
<<
About Glory Star
<<<<
FAQ
1.Are you a factory or a trading company?
A: Dongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory.
2.The major products of our company?
The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines
3.How can I know your machine works well?
We will do test for the machine.Our quality control is strict and will have a 48hours test run.
Before delivery,we will take some photos of the packaging and shipping for you.
4.Do you have a CE/FDA certificate?
A: For every model of machine, it has a CE/ FDA certificate.
5.If we do not know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer training at our factory freely until you can use the machine.And if you are busy ,we will send our professional engineer to your country,you only need pay for some fee,like tickets, hotel and meal.
