Product Specifications
Prod Model: |
GLD-275 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Average Power: |
275W |
Pulse Frequency: |
0-130kHz |
Marking Area: |
800mmx800mm |
Max. Linear Speed: |
20000mm/S |
Min. Character: |
1mm |
Repeat Accuracy: |
±0.02mm |
Average Power Consumption: |
≤3.5kw |
Marking Graph: |
User-Defined Character , CAD Data |
Supported Format: |
BMP,JPG,PNG,TIF,Pcx,Tag,Ioo,GIF,Plt |
Product Description

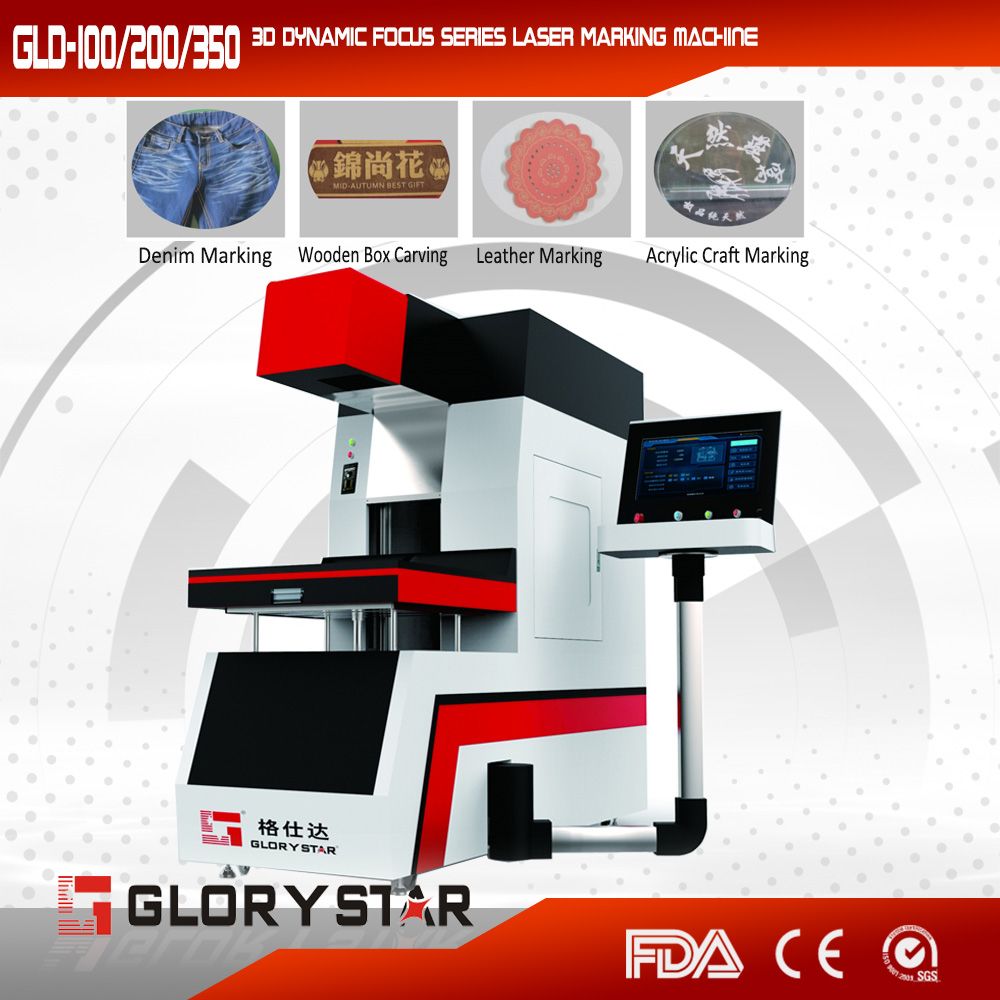

3D Dynamic Acrylic Crafts Laser Marking Machine
Product Feature
According to the demand of domestic and foreign markets, Glorystar R&D team well designs and develops thismodel for various industries. It adopts original imported RF laser modules from USA and Germany to ensurethehigh marking speed, precise beam quality, stable output performance and long lifetime. Under our professionalsoftware control circumstance, the combination of USA digit scanner head and 3D dynamic focal system can make the full advantage use of laser application.
Technical Data
Model | GLD-100/150/275 |
Wavelength | 10.64um |
Average Power | 100W/150W/275W |
Pulse Frequency | 0-130KHZ |
Marking Area | 550mmx550mm/650mmX650mm/ 800mmX800mm |
Max. Linear Speed | 7000mm/s |
Dynamic Axial Response Time | < 4ms |
Min. Character | 1mm |
Repeat Accuracy | ± 0.02mm |
Cooling System | Water-cooling |
Average Power Consumption | ≤ 3.5KW |
Power Voltage | AC220V 30A 50Hz(60Hz) |
Marking Graph | User-defined character, CAD data |
Supported Format | BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
Working Humidity | 45%-75% |
Environment Temperature | 10 º C -30º C |
GLD-100 | Working Area: 550mmX550mm | G. W.: 330KG | Packing Dimension: 1800X1600mmX1800mm |
GLD-150 | Working Area: 650mmX650mm | G. W.: 340KG | Packing Dimension: 2000X1600mmX1800mm |
GLD-275 | Working Area: 800mmX800mm | G. W.: 350KG | Packing Dimension: 2200X1600mmX1800mm |
Optical Design
It adopts the whole-sealed laser optical system, free maintenance without adjustment. Therefore, it can be put into use whenever it is fixed.
Mechanical Design
The 3 axis laser scanning system have compact structure, dust-proof, easy and accurate assembly, strong anti-jamming features. It has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design, which ensures the stability of system under the conditions of long-time running.
Application Industries
Footwear, apparel, arts & crafts, bamboo and wooden products, advertisement decoration, packing, architectural model and so on.
Materials
Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade, crystal, fabric and other non-metal materials.
After-sale Sevice
<<< We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
<<
