| Price: | US $ 10000-26999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 355nm uv |
|---|---|
| Output Power: | 1.5W, 3W, 6W, 9W |
| Wavelength: | 355nm |
| Marking Window: | 110*110/200*200/300*300mm |
| Minimal Marking Width: | 0.01mm |
| Maximal Marking Depth: | 0.01~0.50mm |
| Minimal Marking Character Height: | 0.15mm |
| Cooling: | Chiller |
| Min.Marking Width: | 0.01mm |
| Beam Quality: | M2<1.3 |
| Positioning Accuracy: | +/-0.02mm |
Product Introduction:
Yongmao Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to coldprocess with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.

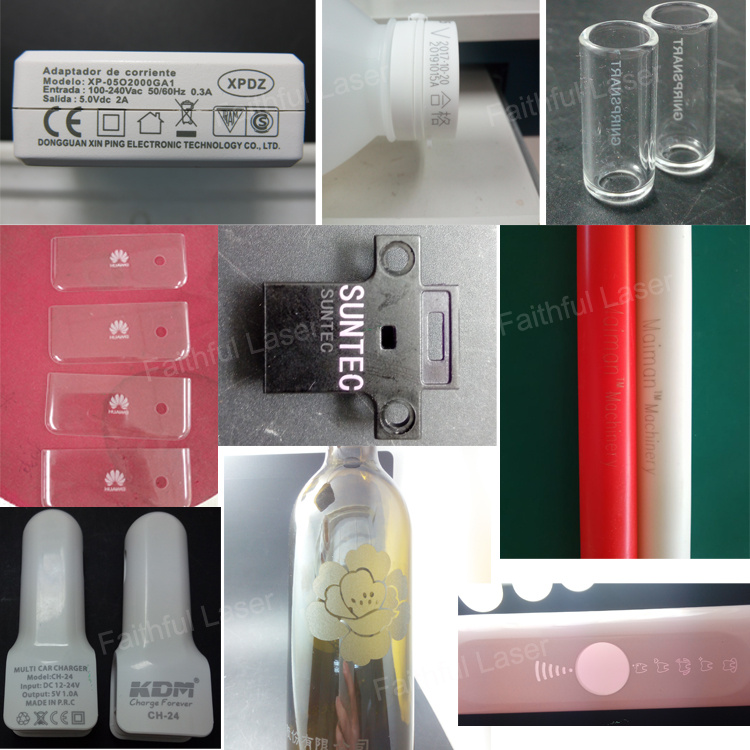

Product Application:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories,mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace,military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, etc,.

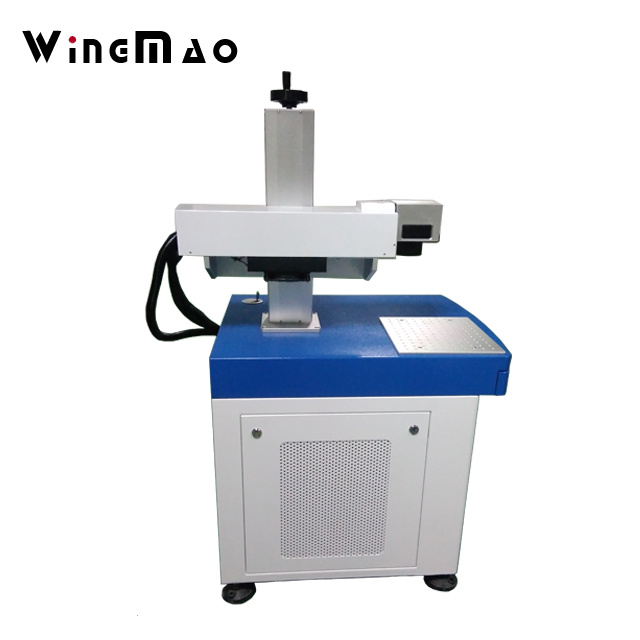

UV laser marking machine:

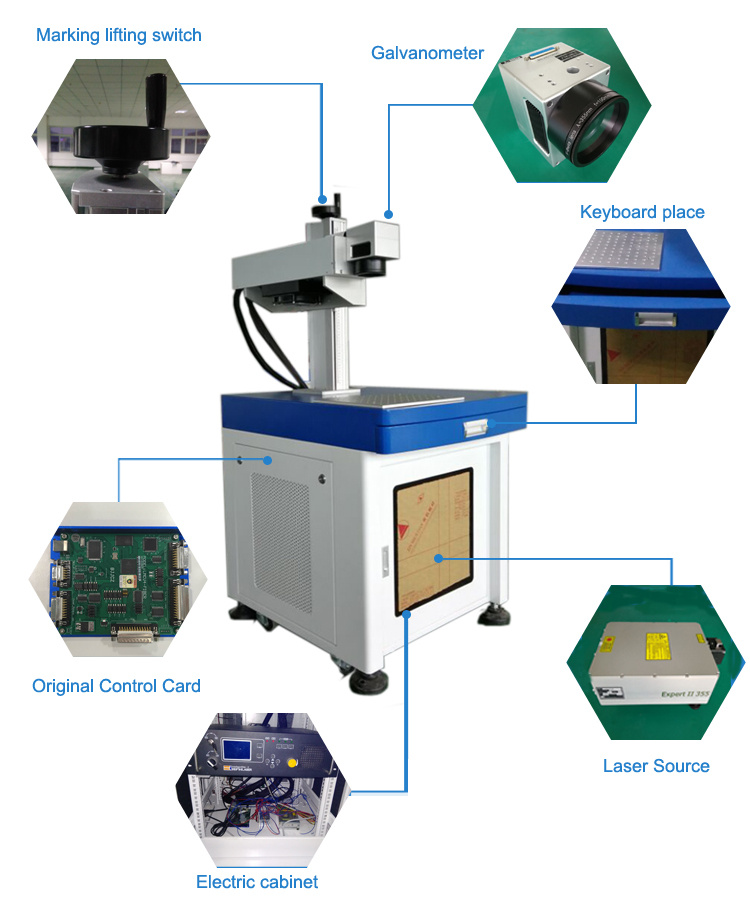

Main Features:
(1) Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
(2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it's very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
(6) The mark is of environmental protection, comply with RoHS standard.
(7) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
(8) It can mark date, bar code and two-dimension code automatically.
(9) Superior performance, good stability, high conversion rate and low energy consumption.
Technical Parameters:
| Laser type | uv laser |
| Response time | 0.8m/s |
| Laser power | 2-15W |
| Engraving area | 100×100mm |
| Optical maser wavelength | 355nm |
| Marking speed | 0-12000mm/s |
| Locating precision | ±0.003 mm |
| Resetting accuracy | ±0.003mm |
| Working voltage | AC220V ±10%.50-60HZ |
| Operating temperature | 0-45°C |
| Operating humidity | 5-95% |
| Minimum character English | 1×1mm |
| Comunication interface | Windows 7/ 8/10 |
| Cooling mode | Water cooling |
| Machine size | 1200*600*1320mm |
| Machine weight | 140KG |
| Packing size | 1300*700*1420mm |
| Weight with packing | 150KG |
Our Service
1. We'll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
Our Packing and shipping:
Company Information:
Yongmao lasers have been widely used in the diverse industry segments such as Automotive, Motorcycle, General Engineering, Plastics, Wooden, Food & Pharmaceutical industries, customers ranging from giant companies to SME from all over the world, e.g. mainland China, USA, western Europe (Spain, Germany and Great Britain), South Asia sub-continent (India, Pakistan and Bangladesh), Latin America (Brazil, Chile, Argentina and Venezuela), East Europe (Russia, Romania and Poland) and U.A.E, K.S.A and South Africa.
