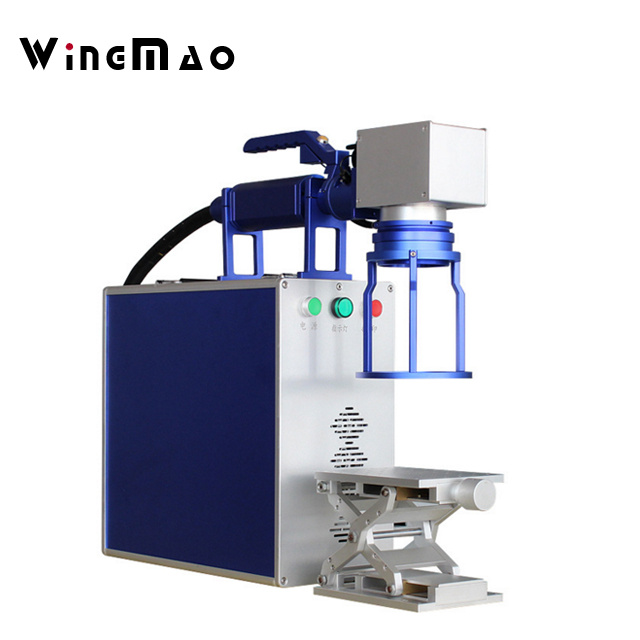

LMT2000T was designed Handheld type, laser head is 2.5kg only, low weight, easy to carry and hang. Configured 1.5M fiber cable by default, extend the cable to 3M is accepted. Good for mark on assmbley line, Greatly improving the production efficiency. 2D work table is configured, godd for marking on small and big size workpiece. like tire,pvc/pp pipe, nameplate,vin number, nameplate,etc.

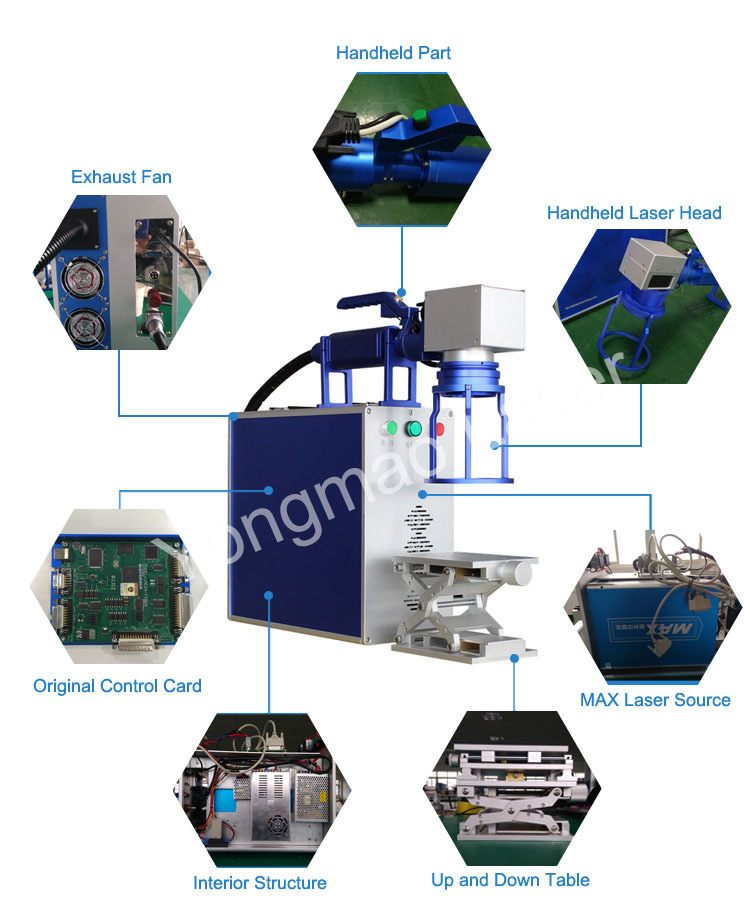

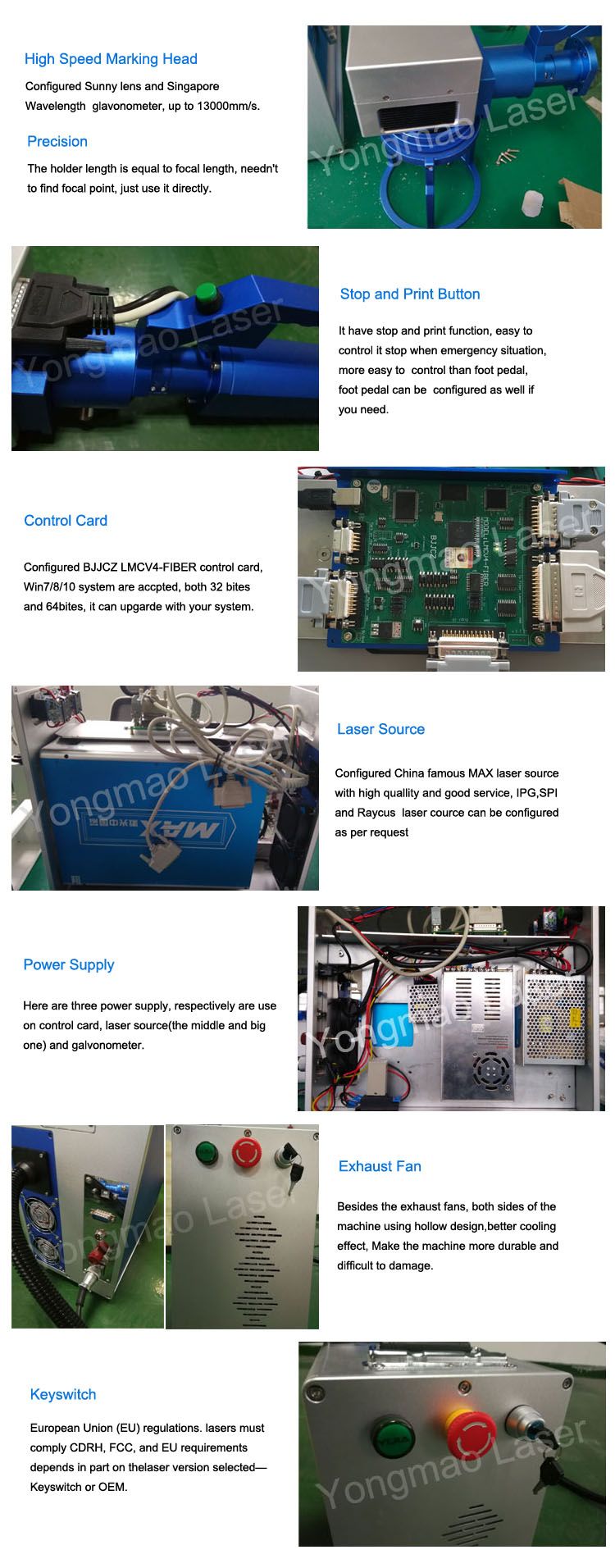

1.Detailed Introduction:

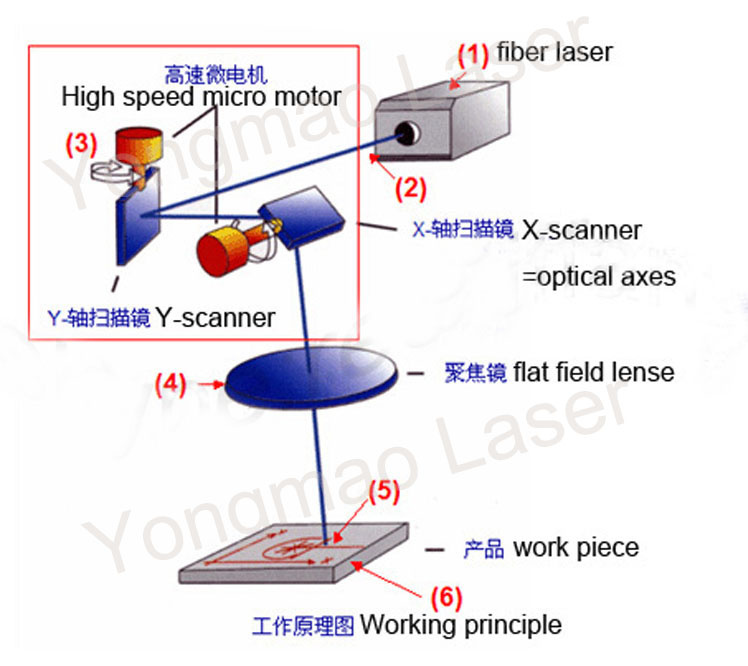

2.The Equipment Working Principle :Print efficiency to high-speed galvanometer laser beam positioning, field mirror focused on the workpiece, through the role of high-energy laser beam to the desired results.
3. Why choose us:

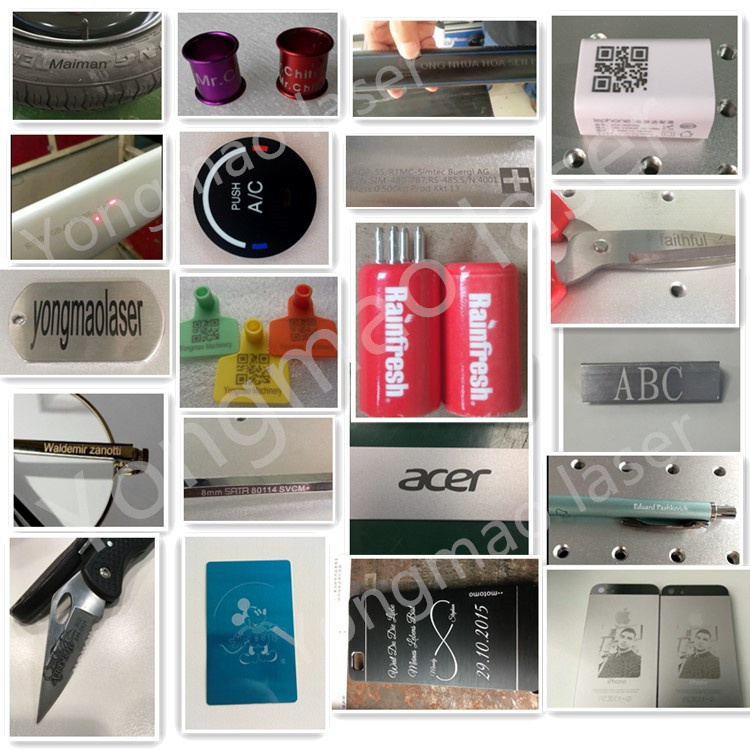

4. Sample show:

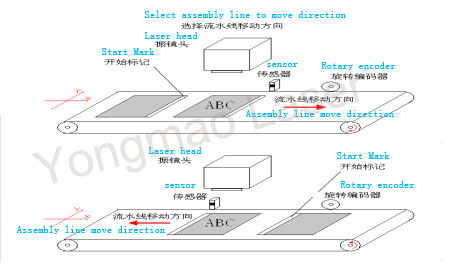

5. How to work/connect with assembly line:Pipeline online laser marking machine equipped with high-speed galvanometer scanning system, the photoelectric sensor to give the signal trigger laser marking machine operations, the use of professional online flight marking control software to achieve the pipeline products to mark.
6.Specification:| Output Power: | 10/20/30/50w |
| Laser Wavelength: | 1064nm |
| Work Pattern: | Q-Switched |
| Pulse Frequency: | 20KHz-80Khz |
| Working Window: | 110*110mm by default |
| Minimal Marking Character Height: | 0.01mm |
| Maximal Marking Depth: | 0.50m, Depends on Working Material |
| Minimal Marking Width: | 0.01mm |
| Maximal Marking Speed: | 13,000mm/s |
| Beam Quality: | M2<1.3 |
| Positioning Accuracy: | +/-0.02mm |
| Expected Laser MTBF: | 20,000 Hours |
| Cooling: | Air Cooled |
| Working Tempratures: | 0 to 40 degree |
| Power Consumption: | <=500W |
7. What materials could be mark:| Material | Fiber Laer | Material | CO2 Laser |
| Aluminum | √ | Wood | √ |
| Stainless Steel | √ | Acrylic | √ |
| ABS | √ | Fabric | √ |
| Brass | √ | Glass | √ |
| Carbon Fiber | √ | Coated Metals | √ |
| Carbon Nanotube | √ | Ceramic | √ |
| Cobalt Chorme Steel | √ | Delrin | √ |
| Copper | √ | Cloth | √ |
| Colored Delrin | √ | Leather | √ |
| Diallyl Phthalate | √ | Marble | √ |
| Glass Filled PPEK | √ | Matte Board | √ |
| Glass Filled Telfon | √ | Melamine | √ |
| Magnesium | √ | Paper | √ |
| Metal Plated Ceramics | √ | Mylar | √ |
| Molybdenum | √ | Press Board | √ |
| Mild Steel | √ | Rubber | √ |
| Nylon | √ | Wood Veneer | √ |
| Polybutylene Terephthalate | √ | Fiber Glass | √ |
| Polysulphone | √ | Painted Metals | √ |
| PET | √ | Tile | √ |
| Santoprene | √ | Plastic | √ |
| Silicon Carbide | √ | Cork | √ |
| Silicon Steel | √ | Corian | √ |
| Silicon Wafers | √ | | |
8.Packaging & ShippingWood case or as per required.
The delivery lead time would be 5 days against down payment.
We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self owned account ID, the exchange bank commission could be saved.
As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
9.Our Services:Financial SupportCredit based instalment payment acceptable according to Alibaba.
3rd party security payment ESCROW supported.
Visa, Mastercard payable.
Normally follow F group, C group rules as per Incoterms 2000.
Post-sales ServicesFiber laser marking machine three year warranty.
Lifecycle spare part supply.
Custom design fixtures.
Installation, training upon request.
10.FAQ1.What certificate does your company have?
CE, FDA and ISO for all.
2.Have you sent any machine to my country?
We have sent the lasers to the most of developed countries, and we also expanding fast in developing countries, you are most welcome to contact us in this regards.
3.What would be the lead time?
Please allow us to secure 5 days for final assemble and test, we will send the cargo to the forwarders within 5 days.
4.What's the service I can get if I buy your machine?
Normally we give online support to our valuable customer, and we think online support is more than enough: with excellent technical documents and FAQ database, customers can trouble shoot and get the problem fixed in time, as for hardware failure, we would guide customer to get the proper replacement in most timely manner, make sure the production would not be hampered. On site service can also be given case by case.
5.What is your laser source, I need Germany lasers, can you make it, and what is the difference between them?
Normally we configure China top laser for our laser marker, cutter, the imported lasers could be given as per request. You are most welcome to consult our marketing specialist for the laser difference.
6.Can you mark ××××? Have you mark ×××× before?
This should be case by case, contact us, we will let you know!
Any other questions?
Why not SEND INQUIRY NOW? or CALL OUR HOTLINE directly.
