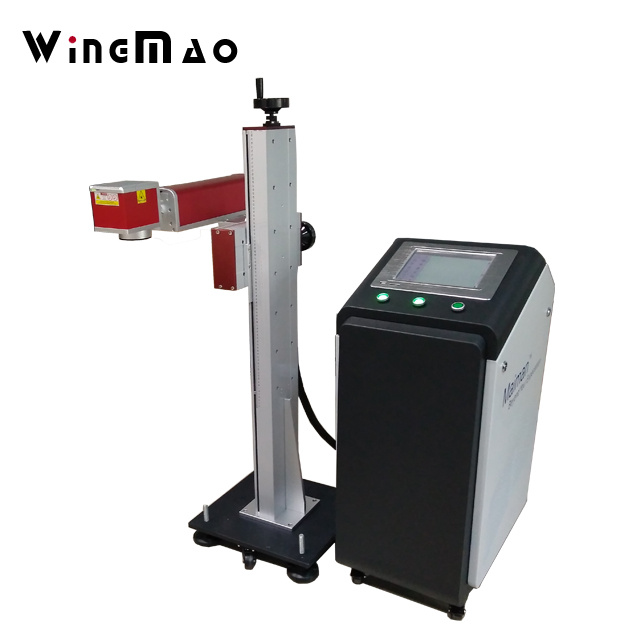

20W 30W 50W Engraving Cutting Fiber Laser Marking Machine for PVC Pipe Assembly Line

Name: 20W 30W 50W Engraving Cutting Fiber Laser Marking Machine for PVC Pipe Assembly Line
Brand: china-crystals.com
SKU: 728521882
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	US $ 3500-14950/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	LMT2000F
Application Of Fiber Laser Machine:	Laser Marking
Pulse Frequency:	<=100kHz
Marking Window:	110*110mm
Minimal Marking Character Height:	0.15mm
Maximal Marking Depth:	0.01~0.50mm
Minimal Marking Width:	0.01mm
Maximal Marking Speed:	7000mm/S
Positioning Accuracy:	+/-0.02mm
Product Name:	Hot Sale 50W Engraving Laser Marking Machine

Product Description

20W 30W 50W Engraving Cutting machine Fiber Laser Marking Machine for PVC pipe Assembly Line

Marking videos of Machine:

https://youtu.be/1B3pUELt7wo

https://youtu.be/whWl_yK_n0g

LMT2000F was designed for work on assmbley line, especially good for pipe industry, food package industry, lighting industry, etc. Greatly improving the production efficiency, such as PVC pipe marking.

1,Product Description

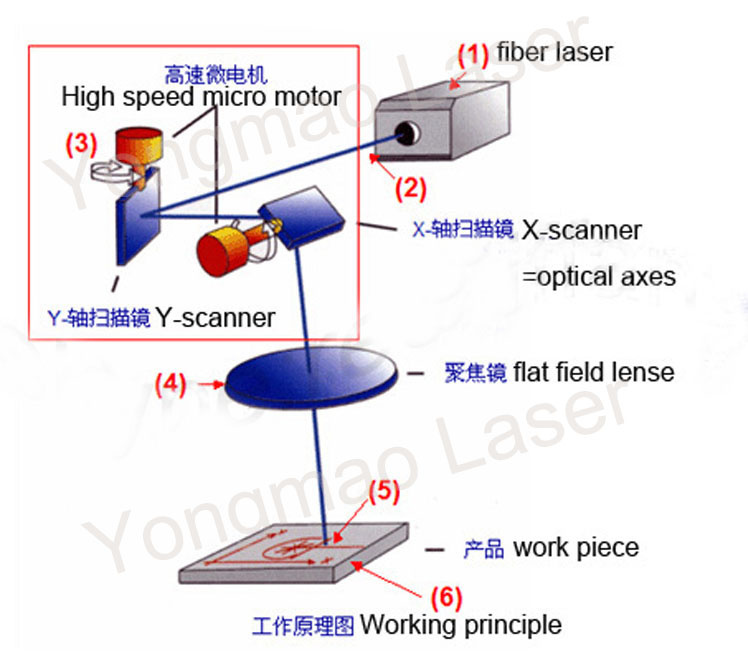

2,The Equipment Working Principle :

Print efficiency to high-speed galvanometer laser beam positioning, field mirror focused on the workpiece, through the role of high-energy laser beam to the desired results.

3,Why this model laser is good for pvc pipe:

4,Assembly Line Working Principle:

Pipeline online laser marking machine equipped with high-speed galvanometer scanning system, the photoelectric sensor to give the signal trigger laser marking machine operations, the use of professional online flight marking control software to achieve the pipeline products to mark.

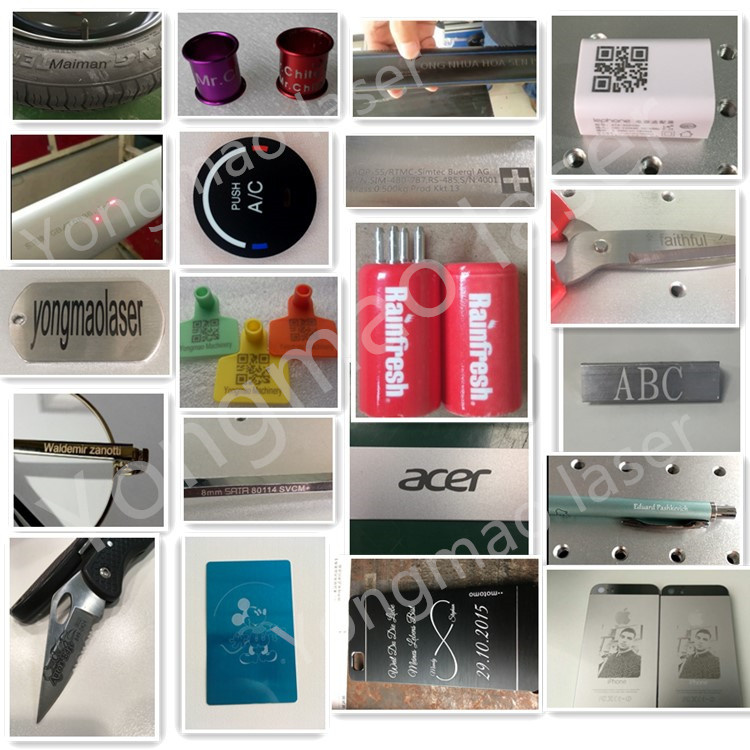

5,Sample Show:

6,Specification:

Output Power:	10/20/30/50W
Wavelength:	1064nm
Pulse Frequency:	20~60KHz
Marking Window:	110mm*110mm
Min. Character Size:	0.15mm
Max. Marking Depth:	0.01~0.50mm, depends on the marking material
Min. Marking Width:	0.01mm
Max. Marking Speed:	12,000mm/s
Beam Quality	M2<1.5
Positioning Accuracy:	+/-0.02mm
Expected MTBF:	100,000 hours
Cooling:	Air Cooled
Working Temperature:	0°C~40°C (32°F~104°F)
Power Consumption:	<=500W

7,Application materials:

Material	Green Laser	Material	Fiber Laser
UHMWPE	√	Stainless Steel	√
Glass	√	Aluminum	√
Crystal	√	ABS	√
PPR	√	Brass	√
PVC	√	Carbon Fiber	√
PET	√	Carbon Nanotube	√
PC	√	Cobalt Chrome Steel	√
ABS	√	Colored Delrin	√
HIPS	√	Copper	√
PP	√	Diallyl Phthalate	√
PE	√	Glass Filled PEEK	√
FPC	√	Glass Filled Telfon	√
FPR	√	Magnesium	√
GFPR	√	Metal Plated Ceramics	√
Ceramic	√	Molybdenum	√
Silicon	√	Mild Steel	√
Wafer	√	Nylon	√
FPD	√	Polybutylene Terephthalate	√
Photopolymer	√	Polysulphone	√
Sapphire	√	PET	√
Mild Steel	√	Santoprene	√
Aluminum	√	Silicon Carbide	√
Copper	√	Silicon Steel	√
Brass	√	Silicon Wafers	√

We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self-owned account ID, the exchange bank commission could be saved.

As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

FAQ

1.What's the service I can get if I buy your fiber laser marking machine?

Normally we give online support to our valuable customer, and we think online support is more than enough: with excellent technical documents and FAQ database,customers can trouble shoot and get the problem fixed in time, as for hardware failure, we would guide customer to get the proper replacement in most timely manner, make sure the production would not be hampered. On site service can also be given case by case.

2.What is your fiber laser source, I need Germany lasers, can you make it, and what is the difference between them?

Normally we configure China top fiber laser for our laser marker, cutter, the imported lasers could be given as per request. You are most welcome to consult our marketing specialist for the laser difference.

3.Have you sent any fiber laser marking machine to my country?

We have sent the laser marking machine to the most of developed countries, and we also expanding fast in developing countries, you are most welcome to contact us in this regards.

4.What certificate does your company have?

CE, FDA and ISO for all.

5.What kind of pipe can be mark?
We have all type laser source, can mark all kind of material pipe, like PVC, PP, HDPE,UMHDPE and so on.

Chongqing YongMao Machinery and Electronics Equipment Co., Ltd is a leading industrial marking equipment and service company, providing a second to none product, service and maintenance program which we can implement to best suit our growing customer demands.

With 8 years experience in marking industry, we are proud to provide our customer a complete range of markers, whether it be DOT peen marking, scribe marking or laser marking.

"We will endeavor to maintain and extend our growing reputation at the forefront of this industry by carrying out continuous quality improvement process and customer-centric service, the goal of the company is to be a partner to the customers, and to help them with the fulfilment of their requirements and targets", with such mission, starting from a small factory with 4 staffs only, YongMao quickly expanded to be a famous manufacture in China.

Yongmao products have been widely used in the diverse industry segments such as Automotive, Motorcycle, General Engineering, Plastics, Wooden, Food & Pharmaceutical industries, our customers ranging from China national held giant company, e. g. "China National Heavy Duty Truck Group Co., Ltd", "China South Industries Group Corporation" to SME (small and medium enterprises) and individual personnel.
