Product Specifications
| Prod Model: |
DEK-1325 |
| Cutting Area: |
1300*2500mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description
Feature of laser cut machine:
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using.
3.Constant light system: The laser cut machine uses the constant light, achieving high precision cutting
4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
5. The laser cut machine cutting section with good quality:Mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again.It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,water cooling, auxiliary gas and laser light.
7. Sample structure, easy operation, stable laser device and low maintenance cost.
Technical Detailes for laser carving machine:

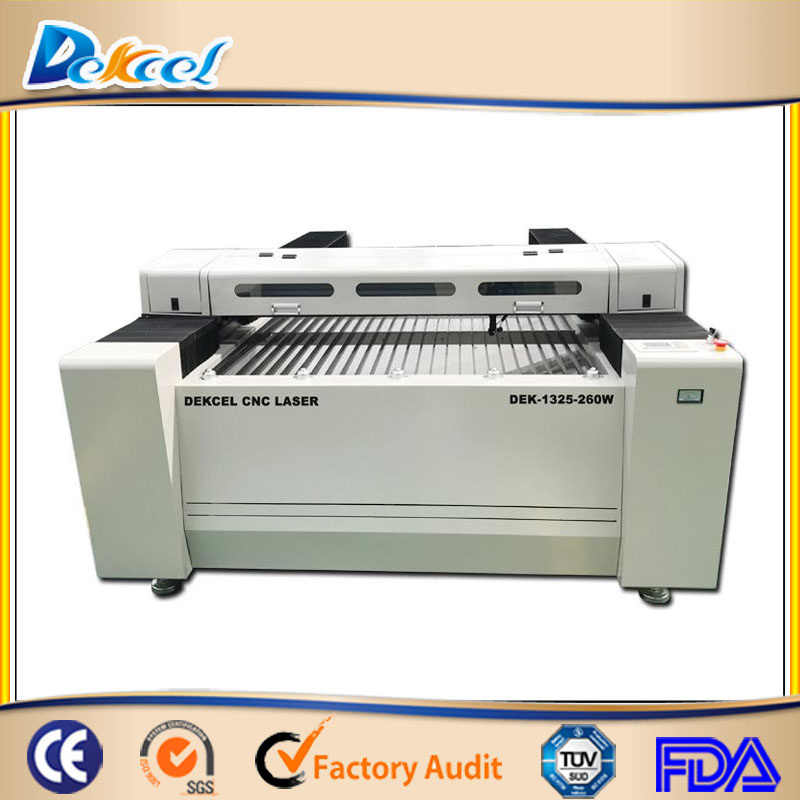

| Name: | DEK-1325 * cnc laser carving cutting machine*
|
| Processing area | 1300mm*2500mm (4feet*3feet) |
| Laser power | 80W,100W,130W,150W,260W |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Resetting positioning accuracy: | ±0.01mm |
| Compatible Software: | CorelDraw AutoCAD Photoshop |
| Whole machine size: | 3150mm*1920mm*1100mm |
| Engraving speed | 1-60000mm/min |
| Cutting speed | 1-10000mm/min |
| Cutting thickness | 0-30mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Position system: | Red dot |
| Interface: | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode: | DC0.8A 24V stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Driving system | stepper |
| Option: | Up and down table, rotary attachment |
| Packing: | wooden box |
| Guarantee time: | 1 year, laser tube 8 months |
| Option: | Rotary attachment for column materials |
| Operation: | Video to tell customer how to operate the machine |
| Gross weight: | 350KGS after package |
Product Application:
(1) Applicable materials:
Nonmetal materials such as leather, fabric, cloth, textile, paper, plastic, rubber, double color board, acrylic glass, bamboo and wood, MDF, plywood, marble, granite and crystal etc.
(2) Applicable industry:
Large width tailoring, shoe making, furniture, advertisement, molding, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry, small business industry.
After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
