Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

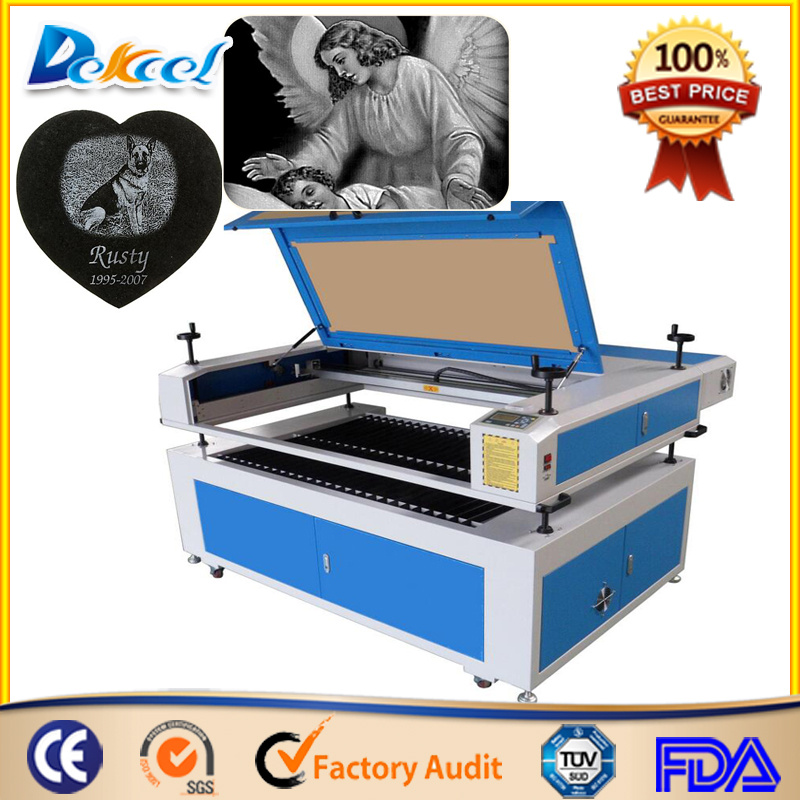

1.Performance Features of cnc laser stone engraving machine
1). The upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granites ,etc.directly.
2). The machine is with double up-down worktables. The upper part and the under part can move up and down automatically, which are very convenient for thick material.
3). Very useful for small house doors.
2. Applicable Industries of cnc marble granite laser engraver
Model Industry(construction models,aviation and navigetion models and wooden toys),advertisement,decoration,art crafts,electronics,and electric appliances,etc.
3. Applicable Materials of cnc stone engraver machine
Non-metal materials such as acrylic , crystal , plastic , metal coating , painted metal , organic glass , wood planks(light planks) , marble , carton , glass , fabric , leather , bamboo ware , double-color boards , paper , shells , coconut shells , ox-horns , resin animal grease , ABS boards , lamp shade , ect.
4. Technical Detailes for Dek-1390 laser stone engraving for marble/grantie:
| Name: | DEK-1390 cnc laser carving cutting machine
|
| Processing area | 1300mm*900mm (4feet*3feet) |
| Laser power | 80W,100W,130W,150W,260W |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Resetting positioning accuracy: | ±0.01mm |
| Compatible Software: | CorelDraw AutoCAD Photoshop |
| Whole machine size: | 3150mm*1920mm*1100mm |
| Engraving speed | 1-60000mm/min |
| Cutting speed | 1-10000mm/min |
| Cutting thickness | 0-30mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Position system: | Red dot |
| Interface: | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode: | DC0.8A 24V stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Driving system | stepper |
| Option: | Up and down table, rotary attachment |
| Packing: | wooden box |
| Guarantee time: | 1 year, laser tube 8 months |
| Option: | Rotary attachment for column materials |
| Operation: | Video to tell customer how to operate the machine |
| Gross weight: | 350KGS after package |
After sales service
1).1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2).Lifetime maintenance free of charge.
3).Free training course at our plant.
4).We will provide the consumable parts at an agency price when you need replacement.
5).24 hours on line service each day, free technical support.
6).Machine has been adjusted before delivery.
7).Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
