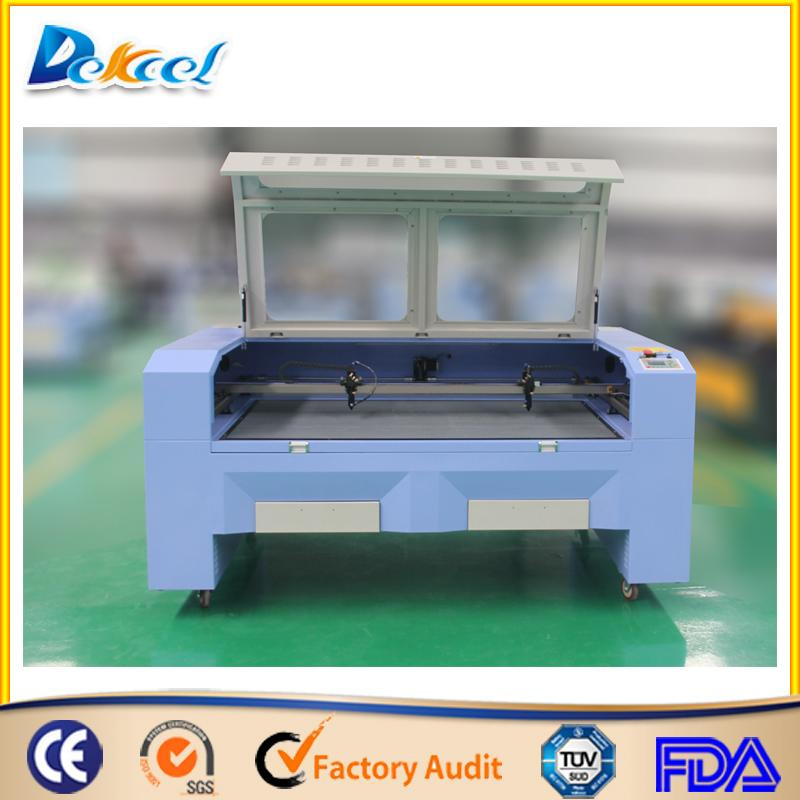

1390 CO2 CNC Laser Cutting Engraving Machine

Product Specifications

Prod Model:	DEK-1390J
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Area:	1300*900mm
Cutting Thickness:	0-30mm
Cutting Speed:	0-40000mm/Min
Graphic Format Supported:	Ai, BMP, Dst, Dwg, Dxf
Certification:	Ce, FDA
Laser Power:	60W/80W/100W/150W
Driving System:	Stepper Motor and Drivers
Control Configuration:	Ruida Control System
Belt:	Fulong Belt
Rail:	Hiwin Guide Rails

Product Description

1390 Cnc laser & co2 laser cutting engraving machine

*******************************************************************************************************

Features of cnc laser

1. The Imported Optical Reflectors and Focus lens adopt high intensity metal molybdenum and non sphere focusing lens, making the cutting effect much better.
2. High quality Reci Brand Laser Tube provide the strong laser beam and longer service life.
3. Adopting DSP Digital Screen Technology, making the operation much easier.
4. Off-line Control System which can not only work without computer, but also connect to U flash disk, USB communication.
*******************************************************************************************************

Technical Detailes for cnc laser

Type	DEK-1390J
Engraving Area	1300 x 900mm
Laser Power	80W-150W
Laser Type	CO2 Laser Tube
Engraving speed	0~1000mm/s
Cutting speed	0~600mm/s
Resetting positioning accuracy	0.01mm
Cutting depth	depend on materials
Minimum Shaping Character	1.5×1.5mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Gross power	1200W
Software supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported	PLT,DXF,BMP,JPG,GIF,PGN,TIF
Engraver for Curve surfaces (Yes/No)	No (rotary attachment can be added for cylinders)
Water Cooling: (Yes / No)	Yes
Maximum Height of Materials to  Engrave (mm)	280mm(Up and down by motor)
Laser Tube (life hours)	10000 hours
Assistant Equipment	Water pump	Exhaust Fan	Aluminum alloy worktable
Optional Spare Parts	RF Tube	Rotary System	Cooling water system	Red Dot Pointer
Recommended Spare Parts / Consumables	Laser Tube and Lens



Machine parts			Tools bag
Name	Amount	Units	Name	Amount	Units
Water pump	1	set	Manual book	1	PC
Air pump	1	PC	Software CD	1	PC
Power line	1	PC	USB line	1	PC
Smoke pipe	1	PC	Water pipe	1	PC
Air pipe	1	PC	Pass lock	1	PC
Tool bag	1	PC
More parts can provide to you as your request

*******************************************************************************************************

Cnc laser specialized in processing Materials as below:

Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber,
ceramic, glass and other non-metal materials, etc.

Applicabe materials by different processing ways
1). Cutting: acrylic, perspex, wood, rubber, cloth, fabric, paper, leather, dual-color boards, foam, plastic, PVC, etc.
2). Engraving: acrylic, stone, marble, granite, glass, perspex, wood, MDF, rubber, cloth, fabric, paper, leather, dual-color boards, foam, plastic, ABS board, PVC, metal-coating etc.

Application Industry of cnc laser engraving and cutting machine

? Stone Industry: marble, granite, stone, artificial stone, white marble etc.
? Artcrafts Industry: wood, bamboo, elephant's tusk, bone, leather, marble, sea shell etc.
? Advertisement  Industry: double color board, acrylic engraving and cutting, label engraving, advertising signs and board, etc.
? Model Industry: sand table constructtion model, architecture models, plane model etc.
? Packing Industry:rubber engraving, plastic, doubling plate, die board cutting etc.
? leather and cloth processing Industry:compound leather, man-made leather, fabric, fur, toy etc.
******************************************************************************************************

Packing&Delivery of cnc laser

1.Lead time: Within 7-12 working days after receiving payment.
1) For standard machines, it would be 7-12 working days;
2) For non-standard machines and customized machines according to our clients'specific requirements, it would be 12 to 21 working days.

2. Packing: Standard Ply-wooden case for exporting, non fumigation.
1) All laser machine are packed with standard inner plastic wrap and outer plywood case.
2) The inner package would be help to tight all the small parts in the package.And the plywood is firm enough to protect the laser machine during shipping.

FAQ

Question 1: I want to buy this cnc laser engraving and cutting machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
 --------------------------------------------------------------------------------------------------------------------------------
Question 2: What's the delivery cost & time?

Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
 --------------------------------------------------------------------------------------------------------------------------------
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
 -------------------------------------------------------------------------------------------------------------------------------
Question 4:  This is the first time I use this kind of machine, is it easy to operate?
1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,
2) Moreover, Skype, Team viewer online service is available for you,
3) Free training will offer you on our factory, Engineer is available to offer international service!
4) Local agent service available is extending all over the world!

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
 -------------------------------------------------------------------------------------------------------------------------------
Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
*****************************************************************************************************

About payment

We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.
******************************************************************************************************

After sales service:

1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.

If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
*******************************************************************************************************
Dekcel advantage

1. High quality and competitive price
2. Imported accessories.
3. A line of production flow
4. Have the professional engineer.
5. 24 hours online service .
6. If you make a great order,can give you a discount(include some presents)
7. You can feel free to visit our factory or maybe have a trip in Jinan city

Looking for agents for all over the world
Thanks for your time!
