Xpi Motor Lamination High Speed Precision Punching Press (25ton-60ton)
| Price: |
US $ 13000-26000SET |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
XPI (25ton-60ton) |
| Precision Standard: |
GB(Japan 1 Class) |
| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

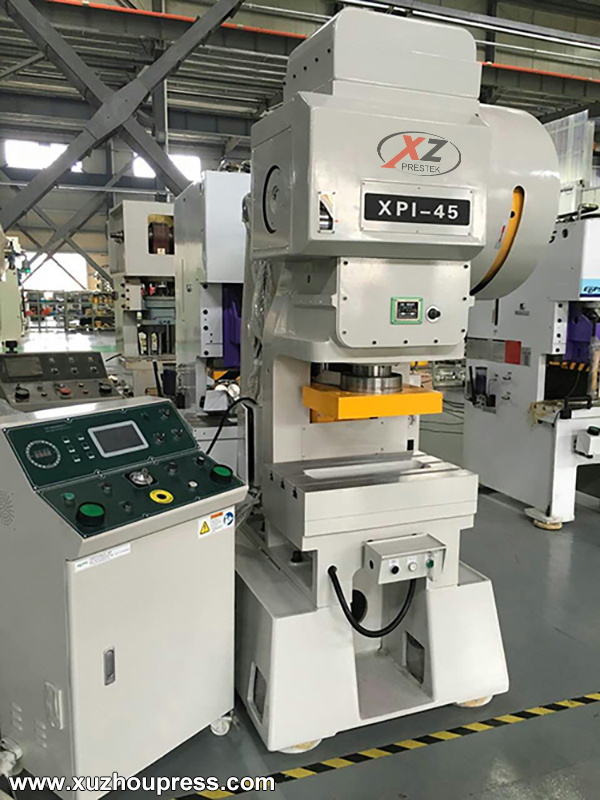

XPI Motor Lamination High Speed Precision Punching Press
(25ton-60ton)
Manufacturing Standards :ISO/CE /Japanese JIS 1 Class
Video Link:
https://www.youtube.com/watch?v=PUj9VXTLD7k
25ton -- 60ton Parameters | Name | unit | XPI-25 | XPI-45 | XPI-60 |
| Model | | A | B | A | B | A | B |
| Capacity | ton | 25 | 45 | 60 |
| Stroke | mm | 30 | 30 | 30 |
| Stroke per minute | s.p.m | 200-600 | 200-800 | 200-500 | 200-700 | 200-400 | 200-600 |
| Die height | mm | 210 | 230 | 305 |
| Bolster | mm | 600x300x80 | 700x415x100 | 840x470x105 |
| Area of slide | mm | 300x205 | 420x320 | 550x340 |
| Slide adjustment | mm | 30 | 30 | 30 |
| Bed opening | mm | 200x100 | 240x120 | 320x160 |
| Motor | Kw | 3.7 | 5.5 | 7.5 |
| Gross weight | kg | 3000 | 4500 | 8000 |
| Lubrication | | Forceful Automation | Forceful Automation | Forceful Automation |
| Speed control | | Inverter | Inverter | Inverter |
| Clutch & brake | | Air & Friction | Air & Friction | Air & Friction |
| Auto top stop | | Standard | Standard | Standard |
| Vlibration system | | Optional | Optional | Optional |
2. Technical Descriptions :1) Adopt integrated high-strength casting machine, with internal stress relief process , to guarantee long-term precision.2) Three-circle guide pillar slider structure, adopting alloy steel bush and forced lubrication, so that thermal change can fall to the minimum and ensure high precision.3) Dynamic equilibrium system is used to balance bent axles and offset vibration generated when slider high speed running , and to ensure stability of slide bottom dead center.4) Manual mould-height adjustment is equipped with mould-height indicator and hydraulic mould locking device.5) Human-computer interface (electronic cam + rotary encoder) operation convenient and accurate.6) Operating functions are integrated on LCD ( Liquid Crystal Display ) , machine malfunction will be display automatically.7) Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, to guarantee precision and safety for operation and stop of press rams.8) With thorough electric loop design, they can be matched with various automatic devices, to conduct automatic production for reducing cost and improving efficiency.Standard Configuration:>Top stop>Manual slider adjusting device>Mould-height indicator>Frequency converter>Programmable control (PLC)>Touch screen (pre-set pre-cut, and counter, angle indicator)>Encoder (electronic) reserved (2 groups)> Operation box>Air source connector>Mould Sticking release device>Main motor (adjustable speed)>Hydraulic -mould locking>Mechanical crank angle indicator>Forced -circulation Lubrication device>Tool box>Operating manual>Power socket>Independent electric control cabinetOptional Configuration:>Anti-vibration foot>Feeder>Decoiler>Material oil lubricating device>Bottom dead center detector>Oil cooler>Mould light>Air-blast device
3. Company Introduction :
Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200, 000.00 square meters.
* Staff of about 400 people
Main Products:
*Mechanical Press

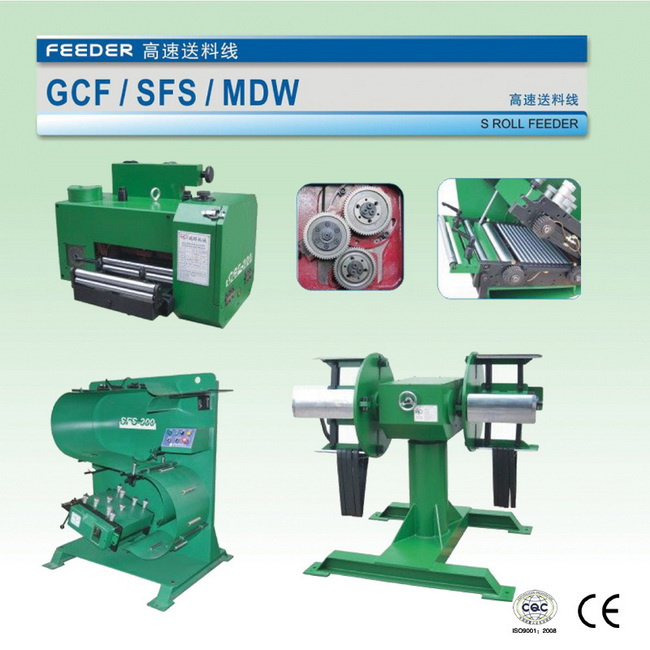

* Coil Feeder
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.
Technology advantages:
* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing:
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
