Product Specifications
| Prod Model: |
FCT-1325W-AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Spindle: |
Atc Spindle |
| Motor: |
China Servo or France Servo |
| Structure: |
Industry Square Tube |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Atc One Spindle |
Product Description

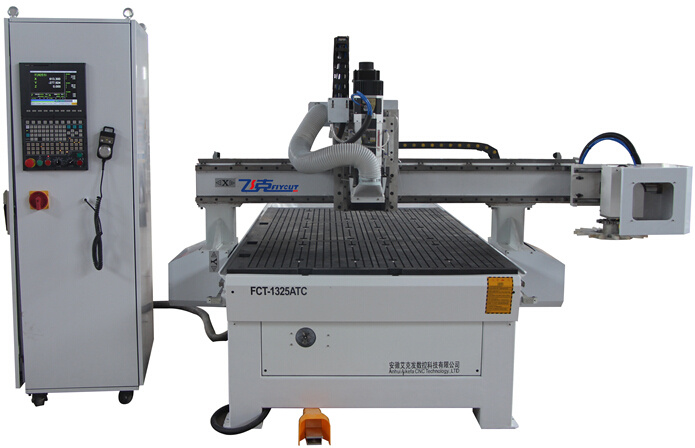

CNC automatic tools change wood engraver
Features:
1. Adopt Italy HSD air cooling 9kw ATC spindle, high accuracy, big cutting power, long life span.
2. Imported servo motor and driver, ensure working stability, high speed and low noise.
3. Intelligent linear ATC System, change tools fast and easily.
4. The lathe is founded by industrial pipe welding, box-type structure to ensure the high Stability.
5. Use special extra heavy size square tubes for holding rails and racks, use precise planer milling machine to ensure parallelism and squareness.
6. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
7. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
8. The professional mechanical design, scientific structure and generous appearance.
9. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
10. High quality driver motors, spindle motors, cables, inverters, etc.
11. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM
Application:
Wood 3D carving, making solid wood door, art and crafts windows, making model plane, making model boat, etc.
Special Configuration:
1500*3000mm, 1500*4000mm, 2000*3000mm, 2000*4000mm and so on.
If you have any question, pls contact with me:
Alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
| Model | FCT-1325W-AT |
| Table Size | 1540*2640 |
| Working Size | 1300*2500*200mm |
| Spindle Power | 9kw Italy HSD Spindle |
| ATC Tools | 6-10 PCS Tools |
| Spindle Rotate | 6000-18000rpm |
| Motor Driver | Imported Servo Motor and Driver |
| Tool Diameter | 3.175,4,6,12.7mm |
| Machine Structure | Industry Square Tube Structure |
| Transmission | XY High Accuracy Gear Rack,Z ball Screw |
| XYZ Rails | Imported Square Rails |
| Dust-proof System | XYZ High Quality Dust Cover |
| Mechanical Accuracy | 300mm |
| Engraving Speed | 12000mm/min |
| Table | Vacuum Inhaling Table |
| Vacuum Pump | Water Cooling Pump |
| Date Tansmission | PC Connect or USB |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/380V |
| Net Weight | 1200KG |
