Product Specifications
| Prod Model: |
FCT-1512L-CCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
CNC |
| Cutting Mode: |
Laser |
| Type: |
Laser |
| Warranty: |
1 Year |
| Laser Tube: |
From 60-130W or More |

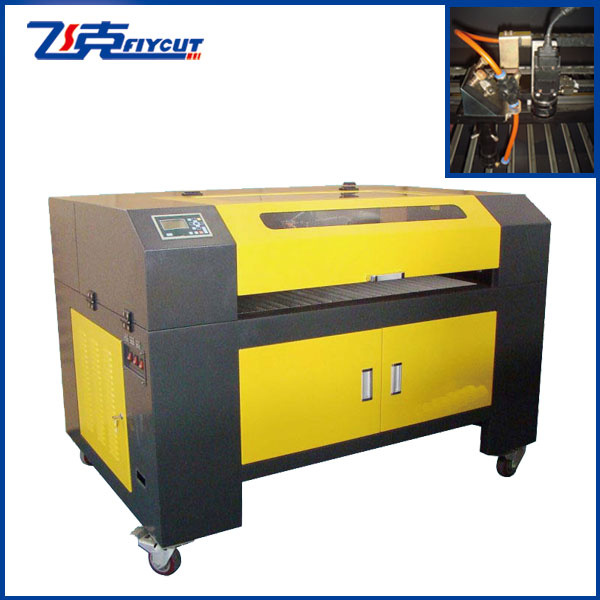

Product Description
Application:
The machine suit for engraving and cutting fabric, leather, wollens, organic glass, wooden item, bamboo item, plastic, rubber, ceramic tile, crystal, jade, etc.
Machine's main features:
1. Sopport many design softwares, such as CAD, CORELDRAW, etc., easily operate., CCD camera makethe position more accurate.
2. The aluminum bar table largely reduce the damage to object from reflecting light.
3. The honey comb table ensure light and soft object be cut in high accuracy.
4. Water chiller with alarming function make the machine work more safely.
5. Hot plugging USB data interface, data transferred easily and fastly.
6. Stable parallel laser make sure the cutting effectiveness the same in different area of the table.
Optional Configuration:
Servo motor and driver, red dot system, sate switch system, rotating axis, up-down table, multi laser heads, etc.
Our service:
1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
alice(overseas department manager)
Mobil: 0086 13966703473
| Model | FCT-9060L-CCD | FCT-1290L-CCD | FCT-1512L-CCD |
| Working size | 900*600mm | 1200*900mm | 1500*1200mm |
| Machine size | 1600*1100*1100mm | 2100*1400*1100mm | 2200*1700*1200mm |
| Laser tube power | 80w | 80w | 80w |
| Laser intensity control | Analogue or PMW |
| Mirror | imported |
| Focus lens | imported |
| CCD type | imported CCD camera |
| CCD interface | USB |
| Laser table | Knock down aluminum bar or honey comb table |
| Water chiller | Water pump or CW3000 | CW3000 |
| Air compressor | Optional |
| Exhaust fan | Big power exhaust fan |
| Working speed | 0-24000mm/min |
| Max. scan accuracy | 2500dpi |
| Min. character | Chinese 1mm*1mm,English 0.8mm*0.8mm |
| Positioning accuracy | ±0.01mm |
| Supported format | BMP,GIF,JPG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF |
| Motor driver | Stepper |
| Cutting thickness | 0-20mm depends on different material |
| Net weight | 500kg | 600kg | 800kg |
Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.
Service concept: Innovation, technology, services
Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.
Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.
Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
