| Price: | US $ 3500-4200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | 1325 |
|---|---|
| Item: | 1325 Wood CNC Router |
| Working Area: | 1300mm X 2500mm |
| Z Working Area: | 200mm |
| Working Accuracy: | 0.05mm |
| Spindle Power: | 3kw |
| Spindle Cooling Way: | Water Cooled |
| Motor: | Stepper Motor |
| Guide Rail: | Original Taiwan Square Guide Rail |
| Transmission: | Rack Gear |
| Control System: | DSP |
| Spindle Layout: | Horizontal |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
Wood Cabinets Door CNC Router Machine

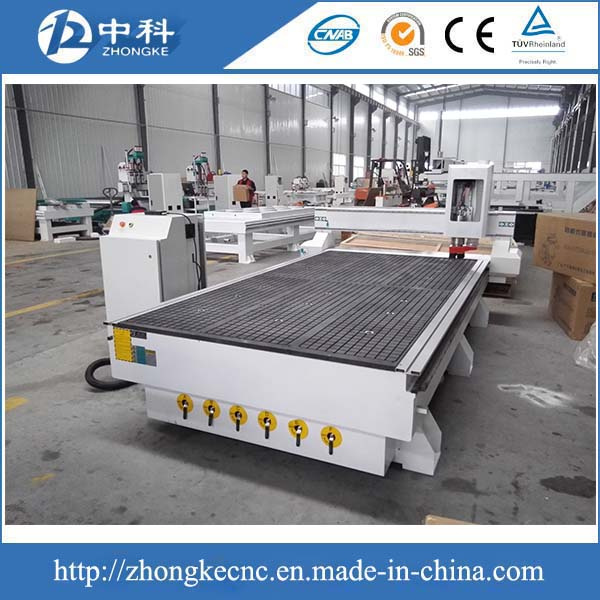

Machine photo:
Features:
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.
3. Equipped with wate cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.
4.The manual oiling lubricating system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Ncstudio control system, can be optional DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.
9.Function of re-carving after break point and power off, reducing the materials wasting.
10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Application:
1. Woodworking industry: three-dimensional wave board processing,cabinet door, craft wooden door,
folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo
making, acrylic cutting, plastic molding,characters, crystal cutting, plate making, cutting PVC board,
acrylic,LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as
material for a variety of exquisite design and text on the sculpture.
Configuration as you require: control system, motor, spindle and so on.

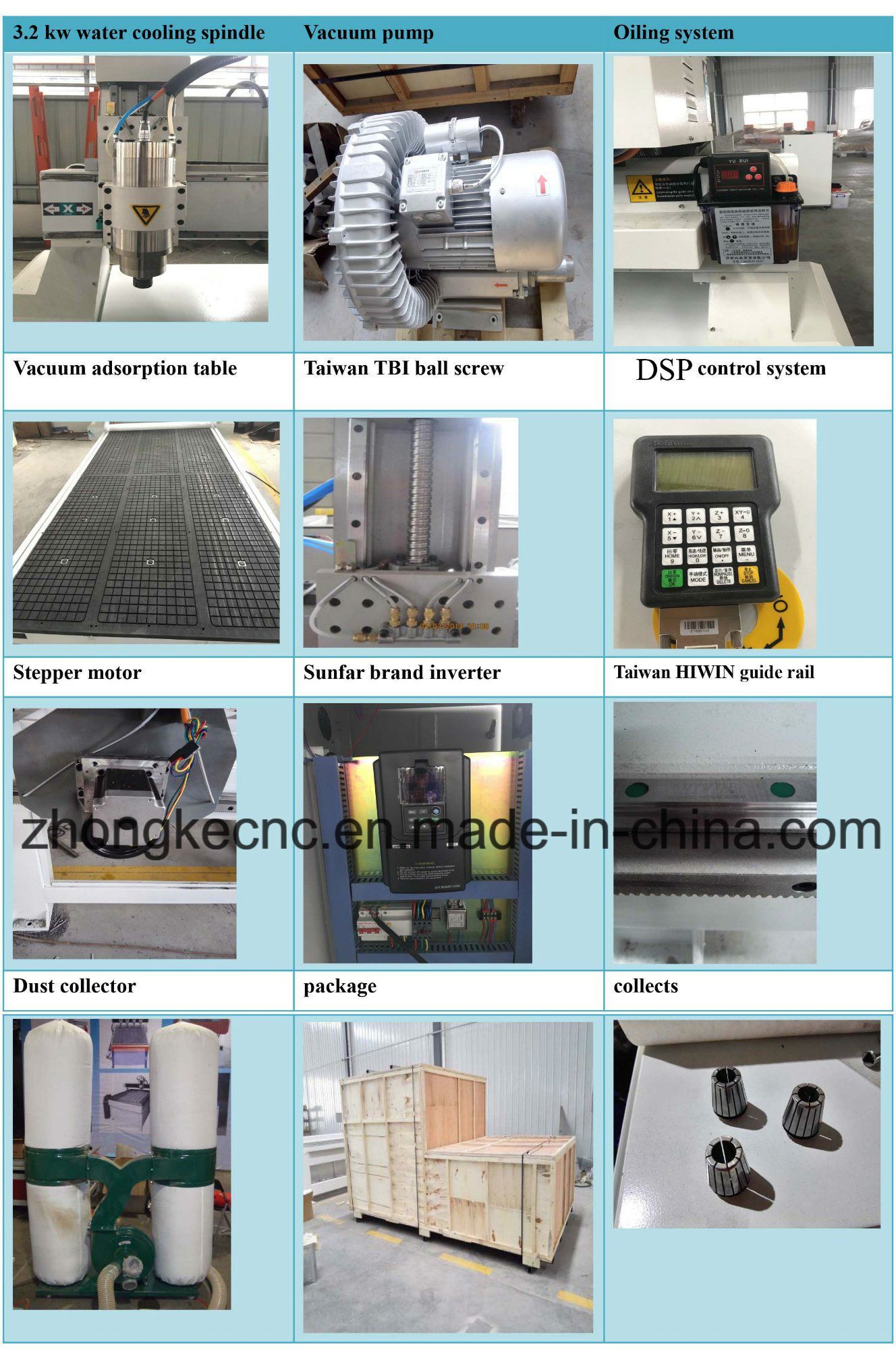

Configuration
Specification
Model | ZK1325 |
X,Y,Z axis working area | 1300*2500*200mm |
Whole structure | Welded Steel gantry structure |
Table surface | vacuum table with 5.5KW vacuum pump |
X,Y,Z structure | Taiwan HIWIN Square linear guide rail |
X,Y structure | Rack and pinion transmission, high speed and more stable; Y -double motor drive |
Z structure | Imported ball screw, high precision |
Max. idling speed | 30m/min |
Max. working speed | 15m/min |
Repositioning Accuracy | ±0.05mm |
X Y Z working Accuracy | < 0.02mm |
Spindle | 3KW or 4.5KW water cooling spindle(optional air cooling) |
Spindle rotating speed | 600-24000rpm/min |
Diameter of tools | Φ3.175 -Φ20 |
Collect size | ER 25 |
Operation language | G code (plt, mmg, uoo, bmp) |
Driving system | stepper motor |
Operating system | Ncstudio control system or DSP control system |
Working voltage | AC 380v/3 phase 50-60HZ |
Software | UcancamV8 / Type3 / Artcam software (option) |
Application
1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.
2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.
3.Instrument industry: 3d curved surface, shape cutting.
We also have many others models wood cnc router that we can produce
Sample photos:
If you are interested in our machine, welcome to contact with me
