Combined CO2 Metal Laser Cutting Machine for Sale

Combined CO2 Metal Laser Cutting Machine for Sale
Price: US $ 5800-6500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union

Product Specifications


Prod Model: 1390
Power: 60/80/100/130/150
Drive Type: Stepper Motor
Control: CNC
Current: AC
Laser Type: CO2
Usage: Plastic/Acrylic/MDF/Plywood/PVC/Leather/Bamboo
Certification: Ce
Condition: New
Warranty: 1 Year
Delivery Time: 10 Working Days

Product Description

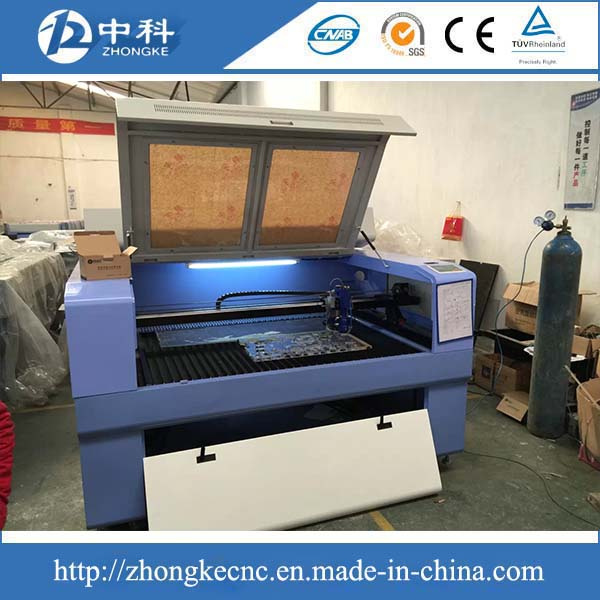

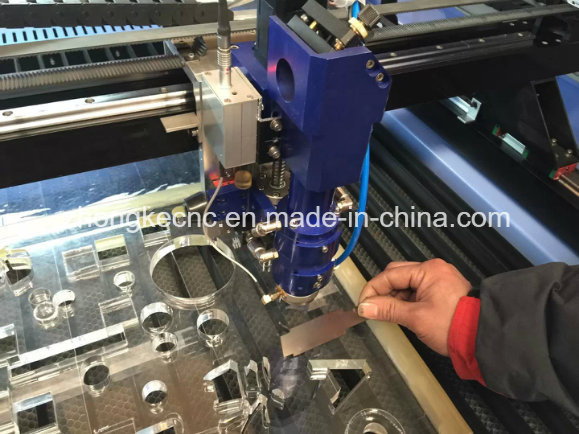

Machine parts









Instruction of this machine
Large size Flatbed Laser Machine series are suitable for all non-metal materials processing with mass production, espcially for acrylic, wood large thickness cutting.


Feature
1). The "front" and "back" of our laser machine can be open, suitable for super-length material process.

2). Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

3). LCD control panel in English, convenience of operation control.

4). Import liner bearing with high engraving precision

5). offline control system which can not only work without computer, but also connect to U disk, USB communication

6). Imported metal mirrors, with good ability of reflection and focusing, long working life.

7).Red dot position system realizes the exact position without laser.

8).Auto Focus technology, realize "easy focus & high efficiency " in real, not only a word.


Applicable Materials:


Acrylic/ Plexiglas/ double color board/ ABS board/PVC board/ bamboo/ MDF/ wood/ paper / leather/ fabric/ wool/ rubber/ resin etc.


Applicable Industries:
Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ paper-cutting /cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/ shoemaking/ toy/ crystal/ packing & printing/ panel/ mould/ decoration/upholster and other related industries.


Technical Parameters

ModelZK1325
Working area1300*2500mm (51*98inches)
Laser typeSealed CO2 laser tube, water-cooling, wavelength 10.6um
Laser power60/80/100/150/200W
Laser life10000 hrs
Max. Cutting thicknessAcrylic :0- 25mm.
Plywood: 0-10mm
Cooling typeWater-cooling (5-30°C tap water or purified water)
Working TableAluminium alloy knife-strip working table
Y axis guide railImported Taiwan HIWIN/PMI/CSK square guide rail
Engraving Scanning Speed0 - 70000mm/min
Cutting Speed0 - 40000mm/min
Laser Output1-100% software setting
Min. Shaping characterChatacter2.0mm×2.0mm, English1.0mm×1.0mm
Highest scanning resolution                   2500dpi
Locating Precision±0.01mm, red light locating.
Power supplyAC220±10%,single phase,50Hz
Operating systemRUIDA control system
Driving systemStepper motor
Cooling systemIndustrial water chiller
Exhaust systemExhaust fan
Running environmentTemperature:5-45°C; Humidity:5-95%
(free of condensed water)
SoftwareLASERCUT5.3 (original version)
Supported graphic FormatBMP, DST, GIF, TGA, AI, PLT, DXF, LAS, etc.
Compatible SoftwareCorelDRAW, Photoshop, AutoCAD, TAJIMA, All types of CAD clothing softwares
AccessoriesHigh quality Industrial water-chiller, air compressor, exhaust fan, Aluminum alloy worktable, red light locating, software, etc.
Weight500kg
Dimensions3.2*2.05*1.12m
Packing size3.4*2.25*1.4m
Recommended spare parts / consumablesLaser tube, Power source, Reflect mirror, Focus lens.


 Standard Accessories

Laser tube1 pc
Optical lens & reflectors1 set
Air Pump1 pc
Exhaust fan + exhaust pipe1 set
Software CD+ dongle1 set
Bases4 pc
Wheels4 pc
User manual1 pc

The reason why choose Jinan Zhongke laser machines.

1)24 hours technician professional and timely after-sale service.
 2)12 months for machine,10 months for the laser tube,long life span of laser tube:1500-3000 hours.
 3)International quality certificate:CE,SGS,ISO9001:2008
 4) We are a professional laser machine supplier with 8 years experiences in China,offering over 80 various laser and CNC equipments


Sample pictures






Package photo:





Seller:


JINAN ZHONGKE CNC EQUIPMENT Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. ZHONGKE CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.

Our company produces ZHONGKE series routers which are sold in various markets of Europe and America, Asia, Africa etc. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
