Product Specifications
| Prod Model: |
6040 |
| Power(W): |
1.5kw Water Cooled Spindle |
| Weight: |
58kgs |
| Operating System: |
Nc-Studio/DSP |
| Warranty: |
1 Year |
| Table Structure: |
T-Slot Table |
| Driving System: |
Servo Motor/Stepper Motor |
| Command: |
G Command |
| Guide Rail: |
Square Rail |
| Lathe Bed: |
Pipe-Welding |
| Service: |
Offering Oversea Service |
Product Description

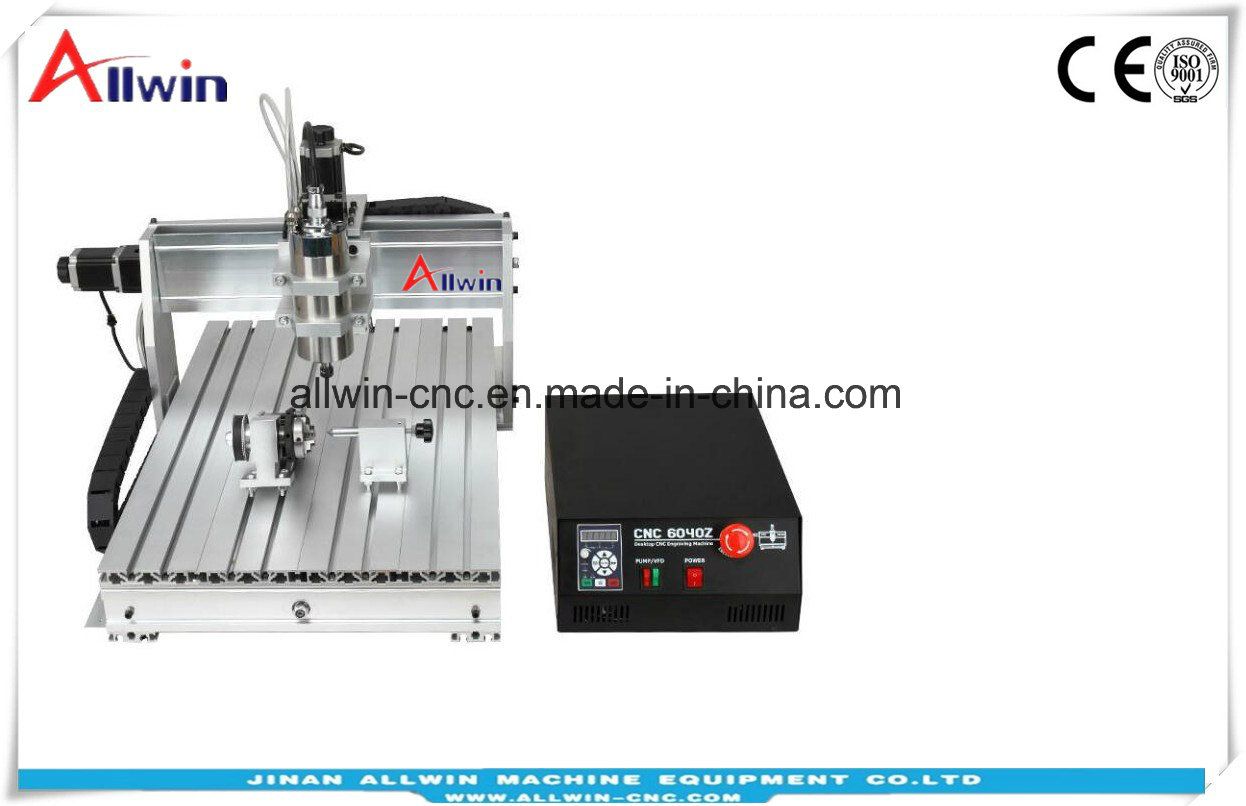

Water-Cooled Spindle CNC Router machine 6040 3D CNC Router 4 Axis 1.5KW
Advantages:1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support Application Industry and Materials:Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc. Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.Features:1. 1500w / 2200w Water Cooled Spindle
2. With live video support.
3. Ball screw high precision
4. Independent power supply for mainboard, prolong using life.
5. USB CNC software or Mach3 is simple and intelligent

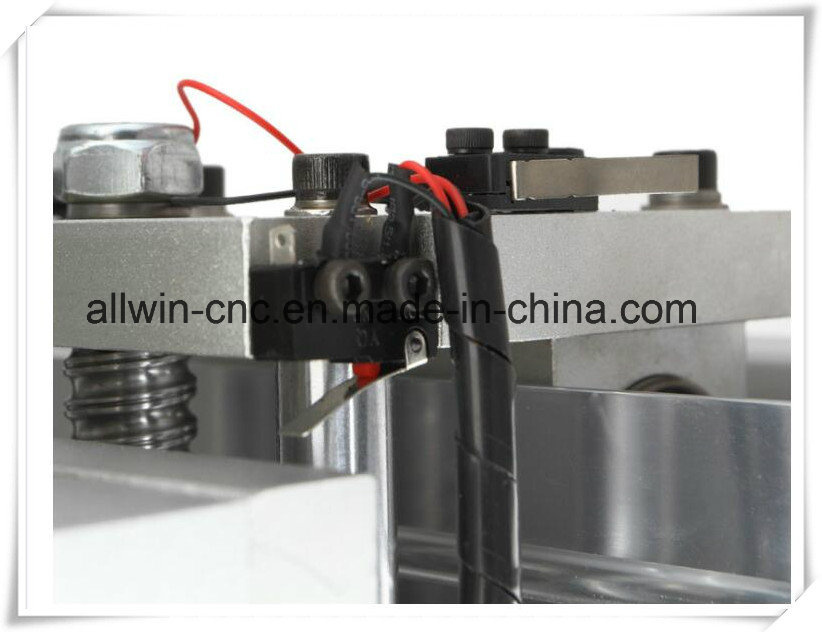

6. Limited switch added
7. Auto-Checking function
8. With 4 axis, can engrave cylinderical object.
9. USB Interface
10. Spindle diameter: 80mm
Parameter:
| Effective working travel | 375(X)mm*535(Y)mm*65(Z)mm |
| Shape dimension | 890*690*525mm |
| Work table dimension | 742mm*480mm |
| Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs |
| acceptable material thickness | ≤95mm |
| Driving units | X/Y/Z axis | 1605 ball screw |
| Sliding units | X axis | Dia.16mm chrome plate shafts |
| Y axis | Dia.20mm chrome plate shafts |
| Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 3A 150N.cm |
| Spindle motor | Brand new 1500W water cooling spindle, 24000RPM |
| Principal axis collet | ER-11A 3-7mm, ER-16A 3-10mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat accuracy is 0.03 mm |
| Software environment | MACH3 Support windows XP, USBCNC support Windows XP, Windows 7 |
| Maximum speed | 0-4000mm/min |

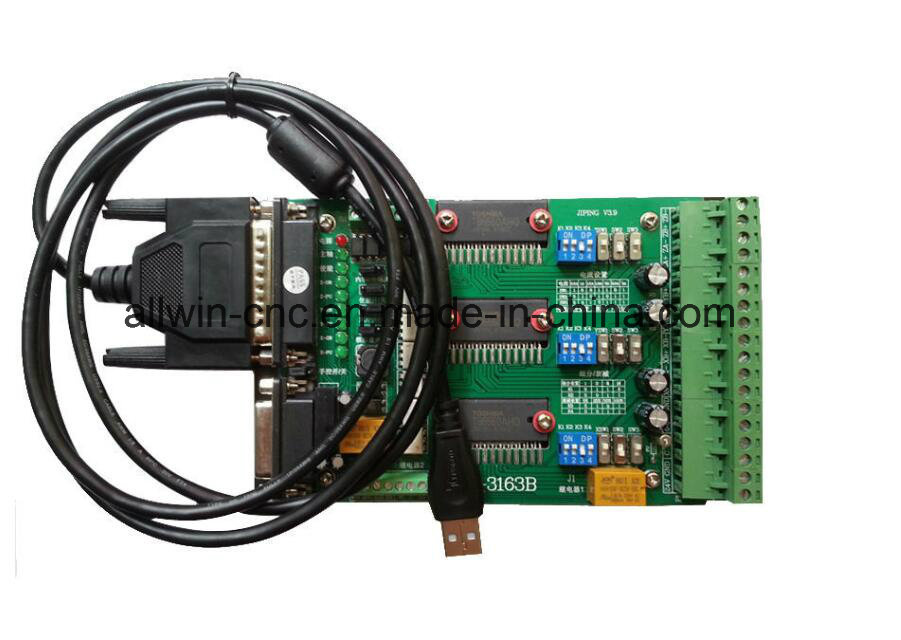

| Control unit | Toroidal transformer + PWM power supply module + TB6560 3axis drive board |
| Computer connection | USB port and Parallel port |
| Command code | G code, or any MACH3 support format file |
| Protection | Emergency stop button |
| Operating Voltage | AC220V |

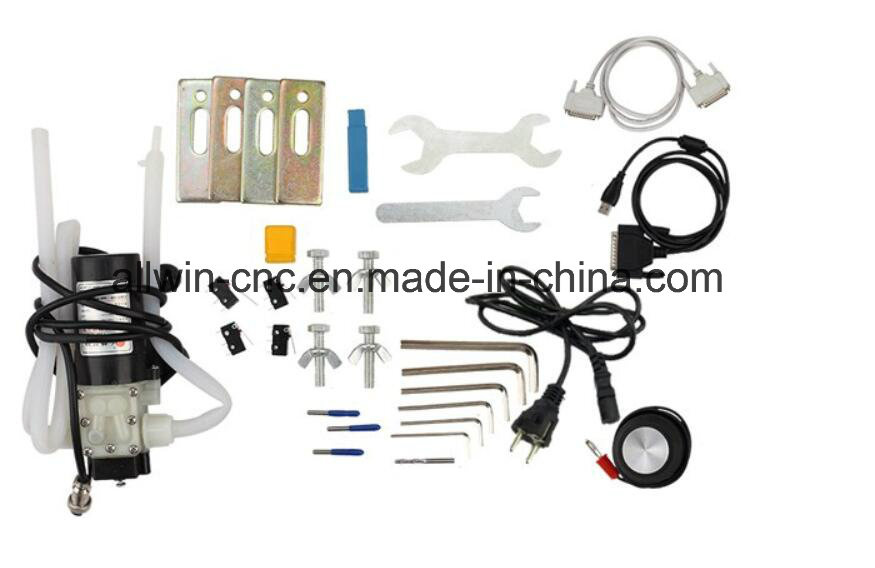

| Accessories | Pump, Auto checking tool , cutter, same as accessories photo |
| Warranty | Two Year |
| Package and size | Two Cartons package , 60*52*43cm and 80*22*63cm |
| Gross weight | 58KG |

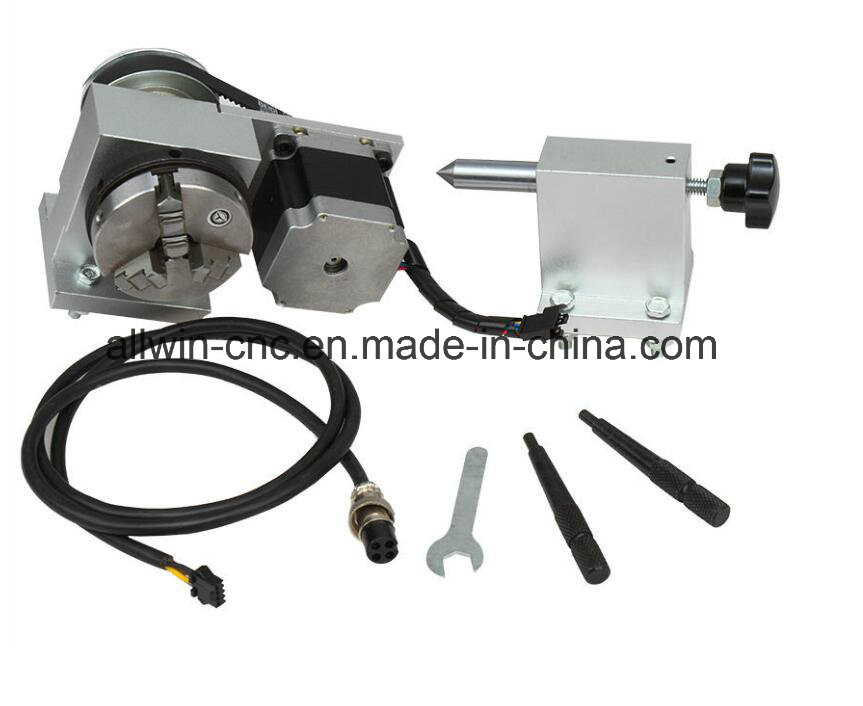

| The 4th axis | |
| Size | 63*60*73mm |
| Top diameter | 15mm |
| Centre-height | 60mm |
| Clamping diameter | 45mm finger tight fitting |
| Reduction tatio | 1:03 |
| Error Range | 0.1 |
Package and shipping:Inside:Water-proof Plastic Film Package With Foam ProtectionOutside:Solid Seaworthy Wood Box Package Below: Steel Tube
FAQ:1.How long about the machine's guarantee?2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agentsContact information:JINAN ALLWIN CNC MACHINERY CO;LTDAddress: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry
Tel: 0086-18053176036Website: http://www.allwin-cnc.com/
