| Price: | US $ 7000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1530 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Z Axis: | Big Z Axis Works |
| Table: | Tab T-Slot or Vacuum Adsorption Table |
| Driver: | Leadshine |
| Inverter: | Fuling or Delta |
| Cutting Material: | Stone Metal or Wood |
| Spindle Power: | 9kw Air Cooling Spindle |
| Design Software: | Ucancam/Type3/Artcam |
| Weight: | 2300kgs |
| Carving Material: | Metal Alloy |

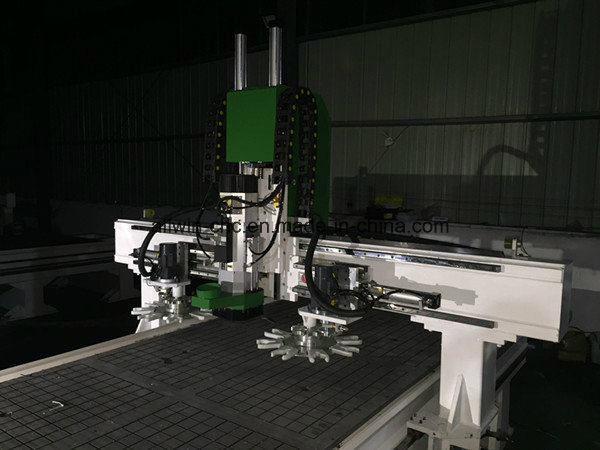

1530 ATC Woodworking CNC Router Machine
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Technical Parameters | |||
Model | VCT-1325ATC8 | VCT-1530ATC8 | VCT-2030ATC10 |
| Working Size | 1300 x 2500 x 200mm | 1500 x 3000 x 200mm | 2000 x 3000 x 200mm |
Spindle | 9KW Italy HSD ATC spindle | ||
Inverter | Delta/Schneider/Fuling 11KW | ||
Reducer | Japan Shimpo Reducer | ||
Tool Stock | High Quality ISO30/BT30 Tool Holder | ||
Structure | thick steel tube welding | ||
Transmission | XY axis Germany Helical gear rack, Z axis high accuracy TBI ball screw | ||
XYZ Guiding Rails | Y axis Taiwan PMI30mm square rails, XZ axis PMI25mm square rails | ||
Cooling system | mist sprayer cooling system | ||
Machining Accuracy | <0.03/300mm | ||
Tool Calibration | Automatic Tool Sensor | ||

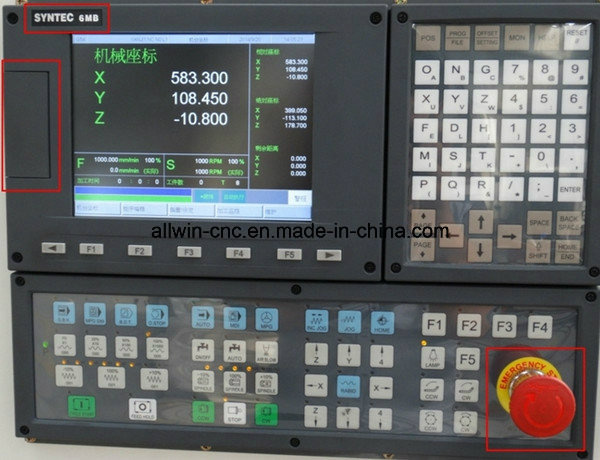

Controller system | Taiwan Syntec 6MB Controller | ||
Design Software | UCANCAM/Type3/ARTCAM | ||
Support file format | G code or HPGL | ||
Net Weight | 2300KG | 2500kg | 3000kg |
Packing size | 3860x 2230x1900mm 17CBM | 4200x2230x1900mm 18CBM | 4200x2230x1900mm 18CBM |
