Virgin Material Polycarbonate Sheet Hollow PC Panels Solid Polycarbonate Sheet
| Price: |
US $ 3/Square Meter |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1000/Square Meter |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
PC Solid Sheet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service Temperature(C): |
-40c--+120c |
| Certification: |
ISO9001: 2008, SGS, RoHS |
| Quality: |
Grade a |
| Width: |
2.1m |
| Length: |
5.8m/11.8m |
| Thickness: |
4mm-25mm |
| Color: |
Clear, Bronze, Blue, Green, Lake Blue, Opal |
| Material: |
Polycarbonate |
Product Description
Information:
This PC sheet which is full of pinholes have many advantages, such as steady structure, saving material, wide covering, high strength and light weight, etc. It looks like numerous H-section steel. The spreading of this structure inside the sheet make the PC sheet more steady, more flex resistance and strength resistance. The wind resistance of this structure is also far better than gen
Features:
² Light and high environmental
² High impact strength
² Good weather resistance and UV protection
² High light-transmission
² Excellent heat insulation capability
² High strength
² Simply processed and installed
² Saving energy
² Good flame resistance
² Ten years guarantee
Specification: | Item | Standard Width(mm) | Thickness(mm) | Weigh(kg/m2) | Min Curving Radius(mm) | Min Span Accordingly (mm) | General Color |
| PC Solid Sheet | 1220
1560
1820
2100 | 1.5 | 1.8 | 270 | 540 | Clear
Opal
Bronze
Blue
Lake blue
Grass green |
| 2.0 | 2.4 | 360 | 720 |
| 2.4 | 2.88 | 430 | 860 |
| 3.0 | 3.6 | 540 | 1080 |
| 3.8 | 4.56 | 680 | 1360 |
| 4.0 | 4.8 | 720 | 1440 |
| 5.0 | 6.0 | 900 | 1800 |
| 6.0 | 7.2 | 1080 | 2160 |
| 8.0 | 9.6 | 1450 | 2900 |
Remark: 1.5mm-3.0mm, 30m length can be in roll. 3.6mm-4.5mm,18m length can be in roll.5mm or above, packed as sheet.
Note: Special colors and specifications can be customized.
Polycarbonate solid sheet profile:
PC(polycarbonate)solid sheet be known as unbreakable glass,it is a kind of engineering plastic sheet with excellent integrated capacity.It features very strong impact resistance,high light transmission,good weather resistance,flame resistance,anti-ultraviolet radiation(Just for those sheet co-extruded with UV layer),easy installation and durability etc.Now PC solid sheet has became very good and safe substitute of glass.It is widely applied in daylighting for shopping mall,mansion,hospital etc.,building decoration for passage,swimming pool,recreation ground etc.,protection for bank,jewelry firms,and displayed valuables etc.,and road signs,bill-boards on lamp boxes,telephone booth,bus stops etc.PC solid sheet include pc embossed sheet and pc diamond sheet!
Specification| Characteristics | Unit | Data of PC Twin-wall Hollow Sheet |
| Light transmission | % | 40 ~ 82 |
| Impact strength | J/m | 2.1 ~ 2.3 |
| Coefficient of thermal expansion | mm/m .ºC | 0.065 |
| Heat conductivity | W/m2 .ºC | 3.0 ~ 3.9 |
| Service temperature | ºC | -40ºC~+120ºC |
| Tensile strength | n/mm2 | ≥60 |
| Bending strength | n/mm2 | 100 |
| Bending elastic modulus | mpa | 2400 |
| Tensile stress at break | mpa | ≥65 |
| Elongation at break | % | ≥100 |
| Sound insulation effect | db | 20 decibel decrease for 10mm thick sheet |

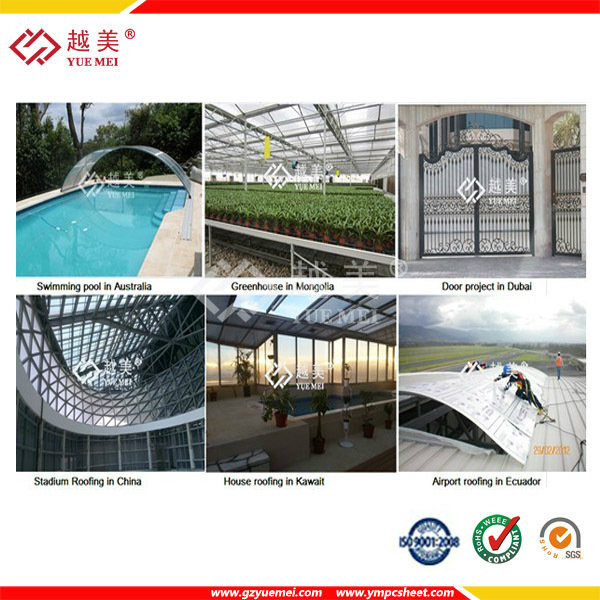

Usages:
1. agriculture greenhouse in cold climate region.
2. Roof material.
3. Plant in factory.
4. Stadium.
5. Industrial lighting system.
6. long-span structures.
7. Warehouse roof.
8. Warehouse and museum lighting system and so on.
Our services:
1.Reply your inquiry in 8working hours.
2.Experienced staffs answer all your questions in fluent English
3.Customized desigh is available,OEM is welcomed.
4.Special discount and protection of sales area provided to our distributor.
Trade Terms:
1.Price term: EXW/FOB/C&F/CIF
2.Payment by T/T or L/C. 30% deposit and 70% before shipment
3.Delivery time: 7-10 working days,subject to the order quantity
Our company
Guangzhou YUEMEI Plastic Industrial Co., Ltd established in 1991, and is a professional manufacturer of polycarbonate sheet, which is a private enterprise taking independent knowledge property, with qualified import and export license and processing with imported material, and with general taxpayer qualification of production, supply and sales integration. The corporation specialized in YUEMEI brand types of polycarbonate sheet and polycarbonate accessories. Our products are selling well in 30 provinces, municipalities, autonomous region, exporting to more than one hundred countries overseas.
Why to choose our polycarbonate sheets?
1) Quality is reliable, you could check by yourself
Our polycarbonate sheets are 10 years quality guarantee, All of them are made of 100% virgin material, with UV coated, Grade A quality.
2) our price is competitive
We buy a large number of polycarbonate material every time from our material supplier--GE sabc company, they will quote competitive prces to us for our big order, our cost is save, so the prices are competitive.
3) Our good service
Delivery time is 7 days,
Supply free samples to you for developing your market,
Supply suggestion freely
Reply you in 10 hours
4) Our factory with rich experience, 25 years experience.
We know how to produce good quality sheets, and we know the market well. The most important is we know the quality and honest is the life of factory.
------------------------------------------------------------------
Contacts:Dayo Tian
T+86-15920427140
http://www.ympcsheet.com
Guangzhou Yuemei Technology Materials Co., Ltd. Started since 1991 and are an influential enterprise specializing only in PC (polycarbonate) sheeting and PC profile. We have 4 main production lines and we use 100% virgin Makrolon resin from Bayer and Lexan resin from GE. Our annual production capacity is 9000 Metric Tons. We got ISO9001: 2008 quality system certificate from CQC and RoHS certificate from SGS. BV production & trade proved!
Our YUEMEI brand hollow PC sheeting, solid PC sheeting and PC profile is available in a diverse variety with complete specifications, thus it is able to meet the different requirements of our customers. With products ranging in high and medium quality, we can also process large orders to our customers' specifications and samples. Furthermore, we can also process skylights with PC solid sheeting and related accessories for installation.
YUEMEI products feature super weather and impact resistance, and good light transmission. Light in weight, and easy to install, they are widely used in construction projects, for decorative use, in advertising displays and an extremely varied and wide range of other uses.
As a result of our products' high quality, competitive price and large selection, YUEMEI PC sheets sell well both at home and abroad. We sincerely invite interested parties to contact us and all enquiries will receive our closest attention.
