Product Specifications
| Prod Model: |
YM-PC-20141103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
100% Virgin Lexan or Bayer Raw Material |
| Size: |
2.1m*5.8m or 2.1m*11.8m |
| Certification: |
ISO9001:2008,RoHS, UL94, SGS |
| Application: |
Roofing, Canopy, Greenhouse etc |
| Material: |
PE |
| Color: |
Clear,Blue,Green,Orange,Yellow... |
Product Description
ABSTRACT

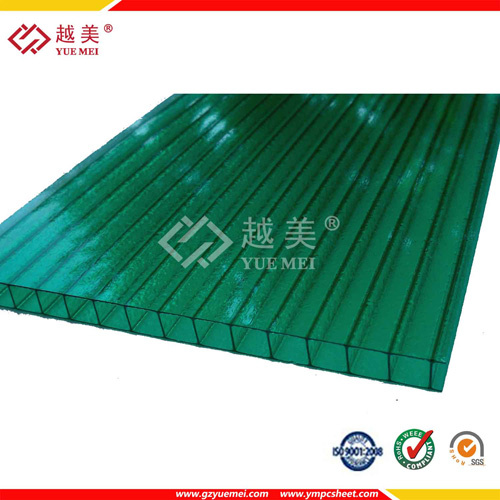

YUEMEI general PC hollow sheet uses the imported polycarbonate raw material. On the sheet surface distributed with high concentrations of UV co-extruded UV protection layer uniformly, it can completely prevent the sheet damage from UV and prolong the life of the sheet. It's mainly used in municipal construction, home decoration, and business application requirements. The sheet with hight impact resistance, anti-aging, UV protection, environmental, aesthetically pleasing, light weight. It's easy for processing and installation.
FEATURE
1. Transmission of light: Excellent lighting, transparency can be equivalent to that of glass. The UV coated sheet in the sun exposure will not become yellowing, atomization, poor light transmission. The transmission loss is only 6% after ten years, but the PVC sheet is as high as 15%-20%, fiber glass sheet is as high as12% - 20%.
2. UV: The hollow sheet is coating with anti-ultraviolet (UV) on one side, the other side is with anti-condensation treatment, it is with the functions of anti-ultraviolet, insulation, anti-drop. It can prevent the ultraviolet getting through; It is suitable for protecting valuable works of art and exhibits, to make it from UV damage.
3. Light weight: The proportion of PC is only 1/12 of normal glass, it's unbreakable, to save the cost of transportation, unloading, installing and frame supporting.
4. Flame: The national standard GB/T2408-2008 confirmed that the PC hollow sheet is a flame, HB level. The itself ignition of hollow sheet is 580 Celsius degrees, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.
5. Bendable: Using cold-formed way at the site to install as vaulted according to the design. The minimum bend radius is 175 times of the thickness. It also can be warm-bended.
6. Sound insulation: The PC hollow sheet has better sound insulation compared with the same thickness of glass and acrylic sheet. Under the same conditions of same thickness, the acoustic volume of PC hollow sheet is 3-4DB higher than that of glass. PC is the first selection of noise barrier material in the highway in the world.
7. Energy-saving: Keep cool in summer, keep warm in winter. The PC hollow sheet is lower thermal conductivity (K value) than common glass and other plastic. The heat insulation effect is 7% and 25% higher than the same glass. The insulation of PC hollow sheet is up to 49%. So that the heat loss is greatly reduced, it can be used in the construction with warm equipment, it's the environmental protection material.
APPLICATION
1. The lighting ceiling of office building, department store, hotel, villas, school, hospital, stadium, entertainment center and the public facilities.
2. The noise barrier of highway and city viaduct road
3. The atrium of agricultural greenhouse, flowers greenhouse and indoor swimming pool
4. The canopy of subway entrances, station, parking lot, shopping mall, pavilion, lounge, corridor
5. Advertising light box, panel of bus station, advertising display card
6. Indoor partition of office and home, pedestrian passageway, guardrail, balcony, bathroom, etc
Why to choose our polycarbonate sheets?
1) Our polycarbonate sheets are 10 years quality guarantee, All of them are made of 100% virgin material, with UV coated, Grade A quality.
2) We buy a large number of polycarbonate material every time from our material supplier--GE sabc company, they will quote competitive prces to us for our big order, our cost is save, so the prices are competitive.
3) Our good service
Delivery time is 7 days,
Supply free samples to you for developing your market,
Supply suggestion freely
Reply you in 10 hours
http://www.ympcsheet.com
|
Technical data |
|
Characteristics |
Unit |
Data of PC Twin-wall Hollow Sheet |
|
Light transmission |
% |
40 ~ 82 |
|
Impact strength |
J/m |
2.1 ~ 2.3 |
|
Coefficient of thermal expansion |
mm/m .°c |
0.065 |
|
Heat conductivity |
W/m 2 .°c |
3.0 ~3.9 |
|
Service temperature |
°c |
-40°c~+120°c |
|
Tensile strength |
n/mm 2 |
≥60 |
|
Bending strength |
n/mm 2 |
100 |
|
Bending elastic modulus |
mpa |
2400 |
|
Tensile stress at break |
mpa |
≥65 |
|
Elongation at break |
% |
≥100 |
|
Sound insulation effect |
db |
20 decibel decrease for 10mm thick sheet |
PRODUCT LIST
|
|
Item |
Standard Size
(mm) |
Thickness
(mm) |
Weight
(kg/ m 2 ) |
Min Curving Radius
(mm) |
Min Span Accordingly(mm) |
General Color |
|
PC Hollow Sheet |
Length: 6000
Width: 1220-2100 |
4 |
1.0 |
700 |
1500 |
Clear
Opal
Bronze
Blue
Lake blue
Glass green
Silver grey
Porcelain white
|
|
5 |
1.1 |
875 |
1800 |
|
6 |
1.3 |
1050 |
2000 |
|
8 |
1.5 |
1400 |
2700 |
|
10 |
1.7 |
1750 |
3300 |
Note: Special colors and specifications can be customized.
|
Guangzhou Yuemei Technology Materials Co., Ltd. Started since 1991 and are an influential enterprise specializing only in PC (polycarbonate) sheeting and PC profile. We have 4 main production lines and we use 100% virgin Makrolon resin from Bayer and Lexan resin from GE. Our annual production capacity is 9000 Metric Tons. We got ISO9001: 2008 quality system certificate from CQC and RoHS certificate from SGS. BV production & trade proved!
Our YUEMEI brand hollow PC sheeting, solid PC sheeting and PC profile is available in a diverse variety with complete specifications, thus it is able to meet the different requirements of our customers. With products ranging in high and medium quality, we can also process large orders to our customers' specifications and samples. Furthermore, we can also process skylights with PC solid sheeting and related accessories for installation.
YUEMEI products feature super weather and impact resistance, and good light transmission. Light in weight, and easy to install, they are widely used in construction projects, for decorative use, in advertising displays and an extremely varied and wide range of other uses.
As a result of our products' high quality, competitive price and large selection, YUEMEI PC sheets sell well both at home and abroad. We sincerely invite interested parties to contact us and all enquiries will receive our closest attention.
