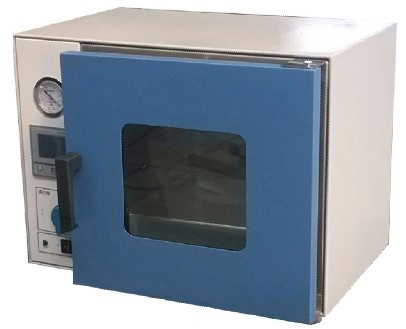

Vacuum Drying Oven
| Price: |
US $ 500-1800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Maximum Relative Humidity: |
<85% |
| Atmospheric Pressure: |
86-106 Kpa |
| Power Voltage: |
AC220±10V,50Hz±1Hz |
| Temperature Range: |
Rt+10ºC-250ºC |
| Temperature Sensor: |
K Type Thermocouple |
| Absolute Vacuum: |
≤133PA |
| Type: |
Incubator |
Product Description

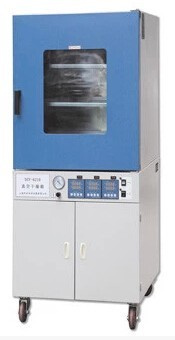

Vacuum drying oven
Application:Widely used with biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, the research and application fields such as environmental protection, for drying, baking powder, and the use of disinfection and sterilization of all kinds of glass containers. Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects in dry processing of fast and efficient.Feature:1. Adopt streamline arc design, the shell is made of cold-rolled steel plate manufactur-ing, electrostatic spraying process overall design beautiful generous, is suitable for the color. High-end laboratory.
2. Studio tank adopts 304 stainless steel plate, the whole stretch forming, welding, semicircle four design more convenient and clean.
3. Microcomputer intelligent control, liquid crystal display various parameters, temperature controller with temperature control, timing, and overtemperature alarm, and other functions.
4. The RS - 485 interface (optional), can connect the computer and recorder, random send software, real-time monitoring of working condition.
5. The overall shape of silicone sealer, make sure that the high vacuum degree in the cabinet.
6. The outside door is equipped with observation window, studio training item allows users to be clear at a glance.
7. Heating mode using the outer wall of the tank the overall heating mode, greatly improved the uniformity of the temperature in the cabinet.
8. Temperature control instrument adopts the international advanced PID adaptive controller, do not need to set the internal parameters, no overshoot, temp.Technical Parameter:| Model | DZK-K30B | DZK-K50B | DZK-K90B | DZK-K210B |
| Volume | 30L | 50L | 90L | 210L |
| Environmental conditions | 0ºC-40ºC |
| Maximum relative humidity <85% |
| Atmospheric pressure 86-106 kpa |
| Power voltage | AC220±10V,50HZ±1HZ |
| Temperature range | RT+10ºC-250ºC |
| Time | 0-9999min |
| Absolute vacuum | ≤133Pa |
| Temperature | Accuracy | 0.1ºC |
| Volatility | ±1ºC |
| Controller | Program control, liquid crystal display |
| Sensor | K type thermocouple |
| Material | Internal | Stainless steel |
| External | Cold rolled steel sheet surface treating |
| Size | Internal | 300×300×3075 | 415×370×345 | 450×450×450 | 560×600×640 |
| External | 590×470×470 | 710×510×535 | 615×660×1440 | 720×805×1680 |
| Power consumption | 450W | 1200W | 1400W | 2500W |
| Rack position | 2 | 2 | 2 | 3 |
| note | 90 b / 210 b with vacuum pump and lower housing |
