Anchorage Force Tester Accessory Anchorage
| Price: |
US $ 10-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
100kN /200kN /300kN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capability: |
100kn /200kn /300kn |
| Pressure: |
63MPa |
| Tension Stroke: |
60mm/80mm/70mm |
Product Description
Executive Standard
GB50367-2006 Design code for strengthening concrete structure
Product introduction:
The instrument is suitable for testing the anchorage force of various of anchor shank, rebar and expansion bolts, also for testing the pull force of glass block screen wall.
Features:
Capability: 100kN /200kN /300kN
Digital pressure meter feature is liquid crystal display, direct force reading, peak holding, data storage, curvature correction, automatic shutdown
Hydraulic cylinder hollow reset
Special type in coal mine: LDS-100/200/300
Can change with handheld meter, high precision
Configuration:
1. Manual hydraulic oil pump
2. Hydraulic oil cylinder
3. Digital pressure gauge
4. High-pressure hose
5. Anchorage, connector(optional)| Model | | SKZY-10 | SKZY-20 | SKZY-30 |
| Manual pump | Pressure | 63MPa | 63MPa | 63MPa |
| Weight | 8kg | 10kg | 10kg |
| Packing case weight | 5.5 kg | 6kg | 6kg |
| Oil cylinder | Capability: | 100KN | 200KN | 300KN |
| Tension stroke: | 60mm | 80mm | 70mm |
| Weight: | 7kg | 13kg | 15kg |
| Central hole: | 27mm | 34mm | 45mm |
| Digital pressure gauge | Measurement range | 0-100KN | 0-200KN | 0-300KN |
| Power supply | 2pcs No.5 battery | 2pcs No.5 battery | 2pcs No.5 battery |
| Weight | 0.34kg | 0.34kg | 0.34kg |

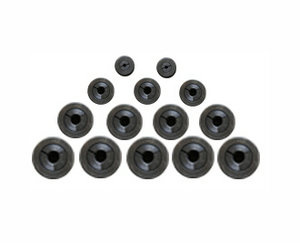

Anchorage specifications
(Optional) | φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ38, φ40 |
Connector specifications
(Optional) | | M6, M8, M10, M12, M14, M16, M18 | M6, M8, M10, M12, M14, M16, M18, M20 | M6, M8, M10, M12, M14, M16, M18, M20, M22, M24 |
| | | | | | |
