TM-Z1 Automatic Screen Printing Machine Butt UV Dryer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
TM-Z1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
TM-Z1 |
| Printing Area: |
700*1000mm |
| Table Size: |
800*1100mm |
| Thickness Of Substrate (mm): |
0-20mm or 0-50mm |
| Platform Precision: |
0.05mm More or Less |
| Working Air Pressure: |
0.3-0.5MPa |
| Printing Speed: |
500-1200PCS/Hour |
| Power: |
220V50Hz/2.3kw |
| Screen Printer Dimensions (Lxwxh): |
1600*1250*1300mm |
| Curing Machine Dimensions (Lxwxh): |
4050*1200*1350mm |
| Type: |
Oblique Arm Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
Product Description

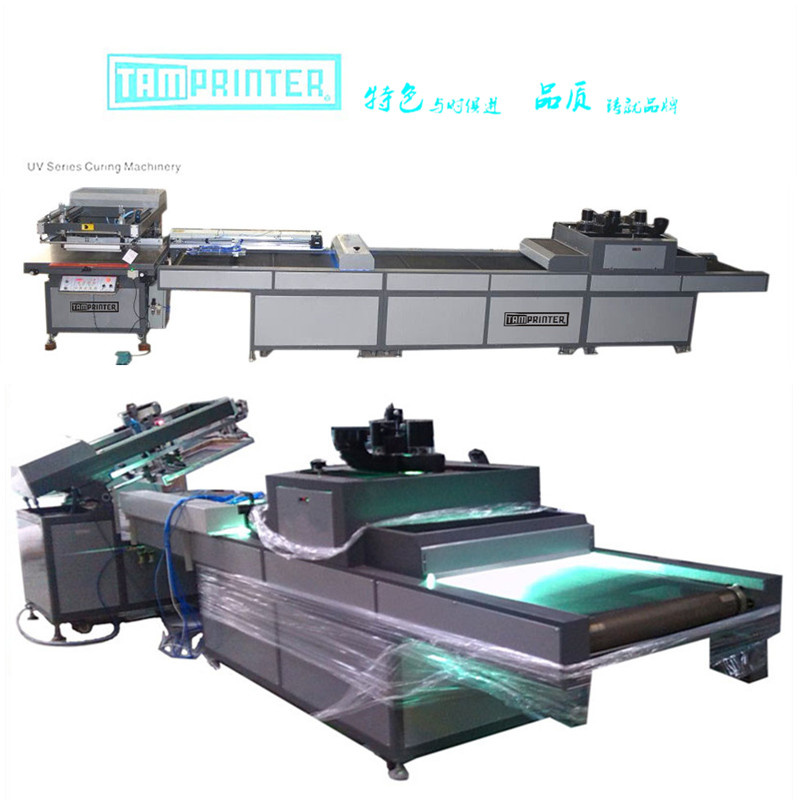

Oblique Arm Flat Screen Printer+ UV drying machine with robot arm
video link:
http://youtu.be/3bpxVNTvWF0
http://v.youku.com/v_show/id_XNjg1ODc3NDI0.html
Technical Parameters:
Type | TMP-70100 Screen printer |
| Worktable size(mm) | 800*1100 |
| Max print area(mm) | 700*1000 |
| Max plate size(mm) | 1000*1300 |
| Min plate size(mm) | 550*650 |
| Thickness of substrate (mm) | 0-20\0-50 |
| Printing speed(pcs/h) | 500-1200 |
| Working air pressure(Mpa) | 0.3-0.5 |
| Gas consumption(0.6Mpa)(L/pcs) | 13/pcs |
| power(kw) | 2.3 |
| Work table minimum relative height (mm) | 820 |
| Overall Dimension(l×w×h)(mm) | 1600*1250*1300 |
| weight (kg) | 480 |
| Rated voltage(V/Hz) | 220V50Hz |
| Type | Robot arm 1500 |
| Working air pressure(Mpa) | 0.3-0.5 |
| Gas consumption(0.6Mpa)(L/pcs) | 0.5 |
| power(kw) | 0.75 |
| Rated voltage(V/Hz) | AC220v/50Hz |
| Take the feed rate (pcs/h) | 1000 |
| Dimension(L*W*H)mm | L1500* W 700* H 200 |
| weight(kg) | 40 |
| Model Parameter | TM-UV750-4 Curing machine |
| Conveyorbelt width(mm) | 730 |
| Effective range (mm) | 750 |
| Product max height (mm) | 40 |
| Conveyor speed (m) | 2~20 |
| Power(P/V/Hz) | 3/380/50 |
| UV lamp(KW/2pcs) | 5.6 |
| Conveyor power(W) | 90 |
| Total power(KW) | 12.1 |
| Dimension(L*W*H) | 4050*1200*1350 |
| Weight(kg) | 300 |
Applications:
It is suitable for printing different hard material surface, professional to rigid print electric circuit board line, PCB board; solder mask green paint, text and hard surface material for print jobs
Performance and features
Tunnel structure with god shielding effect, high power, user friendly with out harm to operator
Instant drying to solidify surface of printed material with gloss and durable friction, resistant to solvent
Applicable to UV ink for special processes like bobbing, frosting, wrinkling, reflection and crystal effects
Well designed structure, easy access to relative equipments for printing production line.
UV lamps can be independently controlled and quantity can be added on request
3/4 automatic automatic silk screen printer machine with uv dryer
Application:
It's suitable for printing kinds of flat material with thin/light feature,such as glass,aluminum sheet,metal plate,steel plate,pvc card,pet sheet,pvc sheet,paper,acrylic.....etc
Characteristics:
1. Controlling machine by PLC programming controller
2. Auto 4-digit counter built-in,all of machine conver both produce by metal material,high quality.
3. Vertical adopting distyle constructure,screen frame up/down and printing head left and right both control by high precision electrical motor drived independently.
4. Controlling printing blade up and down by transducer system,controlling stroke by photocell eye.
6. You can be free to choose printing cycle according to your printing craftwork by printing action.
7. Manula/semi auto/full auto 3 settings up.When printing is indirect,it will be controlled by digital.
8. Machine with vacuum worktable,it can fix the product better and printing quality precision when printing
9. Unique designed machine head up and down equipment,convenient to clean scraper,blade,screen frame.
10.Double guide pole controlling screen arm for adjusting screen distance,regulated conveniently
11.Installing scramming device on work-table, it accord with safty standard.
12.Machine installed shock absorber to make working steady.
