Product Specifications
| Prod Model: |
TM-Z1 |
| Printing Area: |
700*1000mm |
| Worktable Size: |
800*1100mm |
| Max Plate Size: |
1000*1300mm |
| Min Plate Size: |
550*650mm |
| Printing Speed: |
500-1200(PCS/H) |
| Power: |
2.3kw |
| Conveyorbelt Width: |
750mm |
| Conveyor Speed: |
0-25m/Min |
| UV Light Power: |
5.6kw*2 |
| Dimensions: |
650X1220X1300mm |
| Type: |
Oblique Arm Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
| Print Interface: |
USB2.0 |
| System Supported: |
Windowsxp32 |
Product Description

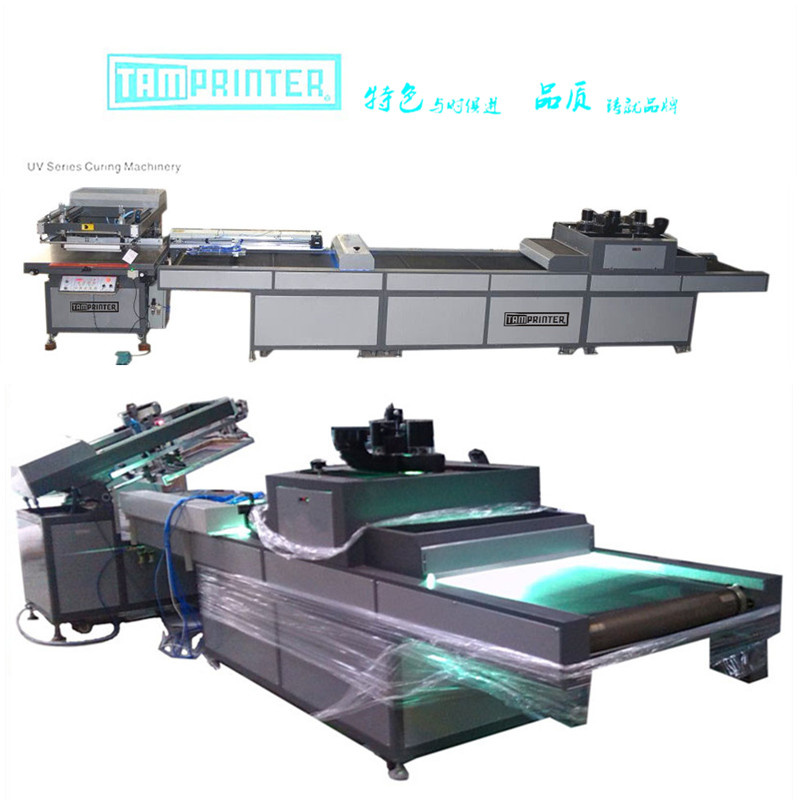

TMP-70100 Oblique arm type screen printer and TM-UV750L UV curing machine
factory Video:https://youtu.be/tB4kHedkz6c
print paper Video:http://v.youku.com/v_show/id_XNzIyODU2NjMy.html
Technical parameter:
| Model No. | TMP-70100 |
| Worktable area | 800X1100mm |
| Max printing area | 700X1000mm |
| Max screen size | 1000X1300mm |
| Min screen size | 550X650mm |
| Thickness of print (mm) | 0-20mm |
| Source power (kw) | 2.3 |
| Rated voltage (v/hz) | 220/50 |
| Printing speed (pcs/h) | 500-1200 |
| Machine size(mm) | 1650X1220X1300mm |
| Plywood | 1.8X1.37X1.5m 3.7CBM |
| Max table height | 820 |
| weight | 480kg |
| Model No. | TM-UV750L |
| Conveyorbelt width(mm) | 750mm |
| UV light power(kw) | 5.6kw*2 |
| Conveyor speed(m/min) | 0-25m/min |
| Power (v/kw) | 380/12.5 |
| Dimensions(LXWXHmm) | 4050X1050mmX1400mm |
| Plywood | 4.2X1.2X1.6m 8.1CBM |
| Weight | 350kg |
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
UV curing machine is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
Features:
Screen printer
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.

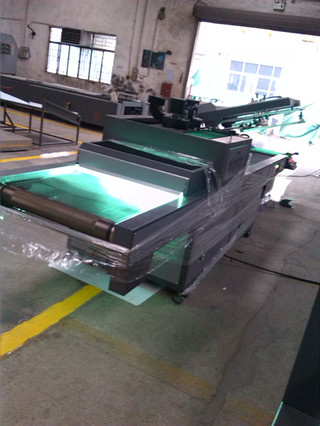

UV curing machine
(1). With Teflon or stainless steel net, transmit speed steady and can be adjusted.
(2). With two UV lighting tubes, can turn on the light according to the need.
(3). Wink-dry makes the surface of the stocks high hardness and rub resistance.
(4). Tunneling-based make the whole machine light barrier good and without harm.
(5). Equipped with powerful nether induced draughe system and big intake airway, can absorbs the stock on the mesh belthard. It can be used with production line and other equipment easily.
