Product Specifications
| Prod Model: |
SG |
| Size: |
as Per Customers Demand |
| On/off: |
Transparent / Opaque |
| Max Width: |
1800mm |
| Max Length/Height: |
3200mm |
| Working Voltage: |
48VAC±5VAC |
| Power Consumption: |
Less 3.7W/Sqm |
| Structure: |
Solid |
| Color: |
Clear |
| Usage: |
Window |
| Application: |
Building |
| Type: |
Laminated Glass |
| Function: |
Decorative Glass, Heat Absorbing |
Product Description
Tempered PDLC Film Switchable Smart Glass for Bedroom Window Glass - Magic glass from Clear to Opaque
Switchable smart glass is a laminated glass product consisting of a PDLC smart film sandwiched between two layers of glass. The PDLC film is what allows you to change the glass from opaque to transparent.(or dim any where in between)

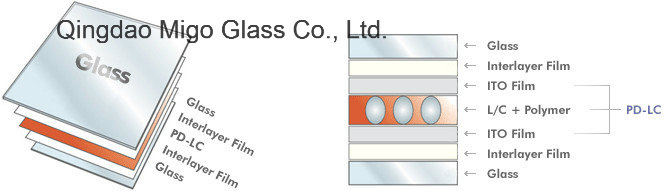

PDLC Smart Glass TechnologyMigoGlass Smart Glass is a state of the art laminated glass with a liquid crystal PDLC interlayer sandwiched between two sheets of glass.

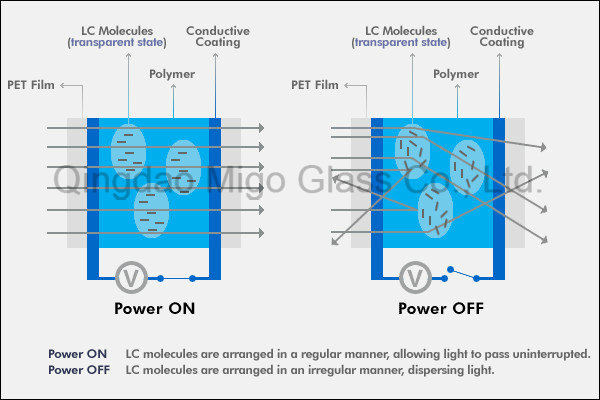

How it Works
Migo Glass provides complete Switchable smart glass already with bus bar, customers just directly install to where they wanted. Switchable smart glass has longer life than Self-adhesive smart film, since the PDLC smart film is well protected by glass on both sides. Our switchable smart glass is laminated with tempered glass, finished product more security and safety.Migo Smart Glass Feature1) Transparent switchable smart glass2) Anti-UV: smart glass can block over 90% ultraviolet radiation3) Soundproof: Smart glass can decrease the noise level reach 35dB4) Security: Smart glass will not hurt people if it were broken, because the broken glass shards still stick on the PDLC film.5) Customized smart glass is availableTechnical Specifications| Optical Properties | Visible Light Transmission | ON | >80% |
| OFF | <1% |
| Visual Angle | ON | 150° |
| UV Blocking | OFF/ON | >99% |
| Haze | OFF/ON | 94%/6% |
| Electrical Properties | Operating Voltage | ON | 60VAC |
| Frequencies | ON | 50 to 60Hz |
| Current | 2mA/m2 | 2mA/m2 |
| Response Time | ON==>OFF | 10ms |
| OFF==>ON | 20ms |
| Power Consumption | ON | 5W/m2/hr |
| Specification | Durable Temperature | -30°C to 100°C |
| Life Time | >50000hr |
| Thickness | 4mm+4mm-12mm+12mm |
APPLICATIONSCorporate boardrooms/ meeting rooms,
Hotel windows,
Hospitals,
Residential windows,
Dividing partitionsShower screens, Conservatories/ sun rooms, Vision panels, Yacht, Museum showcase.
Qingdao Migo Glass Co., Ltd is a leading manufacturer of Smart Film & Switchable Glass with more than 10 years experience . Smart Film Products are with Excellent quality and Competitive Price.
We Own our Independent laboratory , research team and Professional sales team.
ODM and OEM service is available.
Offer Design,Manufacturing ,Installation and good aftersale service.
To get the latest prices, email or call us (Pls state clearly glass sizes & thickness combination, edge grinding, order quantity, destination port... ). We will get in touch with you within 24 working hours.
QINGDAO MIGO GLASS Co., Ltd is a China-based integrated enterprise specialized in production and sales of building glass and solar glass. We have our own factory to produce processed glass, which is 30, 000 SQM and consists of more than 200 workers. Under the management of Migo Group, we are operating more than 8 raw material and processed glass branch factories around China. In this case, we are running an exporting company whose main responsibility is exporting our own products and meanwhile assists overseas customers purchase related products from China.
With more than 10 years experience producing and exporting glass and related products, MigoGlass is able to ensure customers high quality, reasonable price and efficient shipment.
MigoGlass suppliers all types of solar glass and greenhouse glass; Patterned glass-clear and colored; Processed glass like tempered glass, bending glass, laminated glass, insulated glass and enameled glass; Float glass, sheet glass, low iron glass, mirror glass, reflective & tinted glass, etc. Now, the processed glass of MigoGlass has been widely used for glass greenhouse, flat plat solar collectors, solar PV modules, windows & doors, shower enclosures, glass curtain walls, glass railings or fences, staircases, furniture, and etc.
Under the principle of "strengthen scientific management, improve the comprehensive quality, create high-quality brands and ensure customer satisfaction", MigoGlass is stepping forward day by day. We are always doing our utmost to assure the top quality glass and customer satisfaction. We sincerely look forward to establishing a win-win business with you to create a bright future together.
MigoGlass Competitive Advantages:
Direct factory price, quick delivery, professional package and container loading design.
Quality assurance. ISO 9001: 2008 Quality System Certification. Glass products with CE certification, SGS test reports.
Full range of glass supply, offering one-stop purchase.
Excellent sales team, offering personalized and dedicated pre-sale and after-sale service.
