Product Specifications
| Prod Model: |
LIFG |
| Glass Types: |
Float Glass |
| Glass Color: |
Ultra Clear / Low Iron |
| Size: |
Customized |
| Iron Content: |
Less Than 120ppm |
| Light Transmittance: |
Over 91% |
| Certification: |
Ce, CCC, SGS, SPF |
| Shape: |
Flat |
| Appearance: |
Flat Tempered |
| Steel Degree: |
Tempered Glass |
| Fragment State: |
I |
| Technics: |
Physically Tempered |
| Flatness: |
High Class |
| Usage: |
Solar Panel, Solar Collector |
| Standard: |
CCC, En12150, Ansiz97.1 |
| Thickness Of Flat Tempered Glass: |
3.2mm 4mm |
Product Description

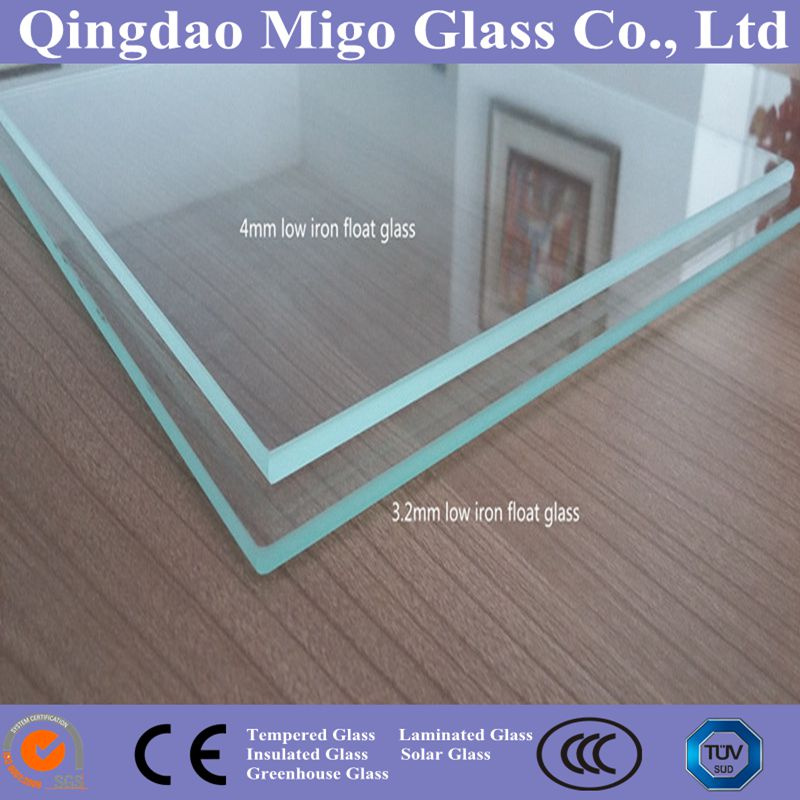

Low Iron Float Tempered Glass with EN12150Thickness: 3.2mm, 4.0mmApplications : Cover glass for PV modules Cover glass for solar thermal collectors / solar water heaters Front glass for thin film solar panels Front glass for photovoltaic glass-glass modules Substrate for solar mirrors BIPV modules Glass Features1. MIGO Ultra Clear Float Solar Glass is a kind of extra clear low iron float glass with light transmission higher
than 91.5%. Its high performance stability and good processability make it one of the best choices for
photovoltaic modules, solar thermal collectors and solar mirrors.2. MIGO Ultra Clear Float Solar Glass offers superior solar energy transmittance and is stable under solar
radiation. It also survives harsh environmental conditions and protects the sensitive components of solar
modules from water and humidity ingress. 3. MIGO Ultra Clear Float Solar Glass is fully tempered as per EN12150. Meanwhile, anti-reflective coating
can be deposited on one or two glass surfaces to increase light transmittance by 2%.Main Characteristics| Light Transmittance | 3.2mm (1/8"): ≥91.6%; 4.0mm ( 5/32"): ≥91.5% |
| Solar Transmittance | 3.2mm (1/8"): ≥91.1%; 4.0mm ( 5/32"): ≥91% |
| Iron Content (Fe2O3) | ≤120ppm |
| Specific weight (kg/m²) | 3.2mm (1/8"): 8 ; 4.0mm ( 5/32"): 10 |
| Thickness tolerance | ±0.2mm |
| Dimension tolerance | ±0.5~1.0mm |
| Diagonal difference | ≤0.1-0.2% |
| Overall Bow/warp | <0.2% |
| Local warp | ≤ 0.3mm / 300mm |
| Fragmentation Test | ≥ 40 particles in 25cm² EN12150-1 |
| Certification | EN12150, EN12600, CCC, SGS, SPF |
Mechanical Characteristics| Mechanical strength (N/mm²) | ≥45 Annealed |
| ≥120 Tempered, EN12150-1 |
| Young modulus (GPa) | 73.1 |
| Poisson ratio | 0.2 |
| Knoop Hardness (kgf/mm²) | 470 |
| Density (kg/m³) | 2500 |
Thermal Characteristics| Hemispherical emissivity (corrected) | 0.84 Between -18ºCand 66ºC |
| Expansion coefficient (/ºC) | 8.6×10-6 Between 25ºCand 300ºC |
| Specific heat | 0.205 Between 0ºC and 100ºC |
| Thermal conductivity (W/m/K) | 1 |
| Softening point (ºC) | 723 |
| Annealing point (ºC) | 544 |
| Strain point (ºC) | 504 |

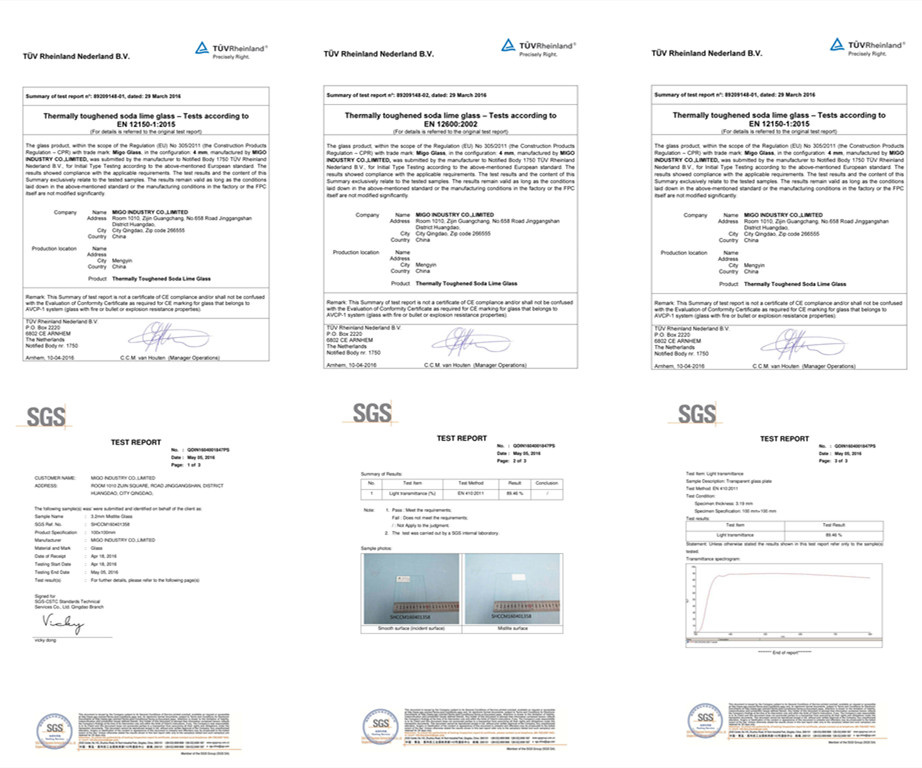

Migo Glass Certificates of 3.2mm & 4.0mm Solar Glass
MigoGlass Competitive Advantages:
a. Direct factory price, quick delivery, professional package and container loading design.
b. Quality assurance. ISO 9001:2008 Quality System Certification. Glass products with CE certification,
SGS test reports.
c. Full range of glass supply, offering one-stop purchase.
d. Excellent sales team, offering personalized and dedicated pre-sale and after-sale service.
FAQ: 1. MOQ: 1 × 20 GP. Our salesperson can help calculate the loading quantity of a 20ft container.
2. Payment terms: T/T; 30% advance payment, 70% balance against the copy B/L.
3. Delivery time: Normally, goods will be delivered to the cargo vessel within 30 days after receiving the
advance payment. In the case of urgent order, we can deliver them within 15 days.
4. Shipping port: Qingdao port
5. Samples: small glass samples can be provided at our cost.
Contact Us:Feel free to Email or call us if any inquiry (Pls make it clear glass sizes, edge grinding, order quantity, destination port... ). We will get in touch with you within 24 hours.
