Product Specifications
| Prod Model: |
DW1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Accepted |
| Customization: |
Accepted |
| Spindle Power: |
2.2kw |
| Spindle Cooling Mode: |
Water Cooled |
| Warranty: |
18 Months |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

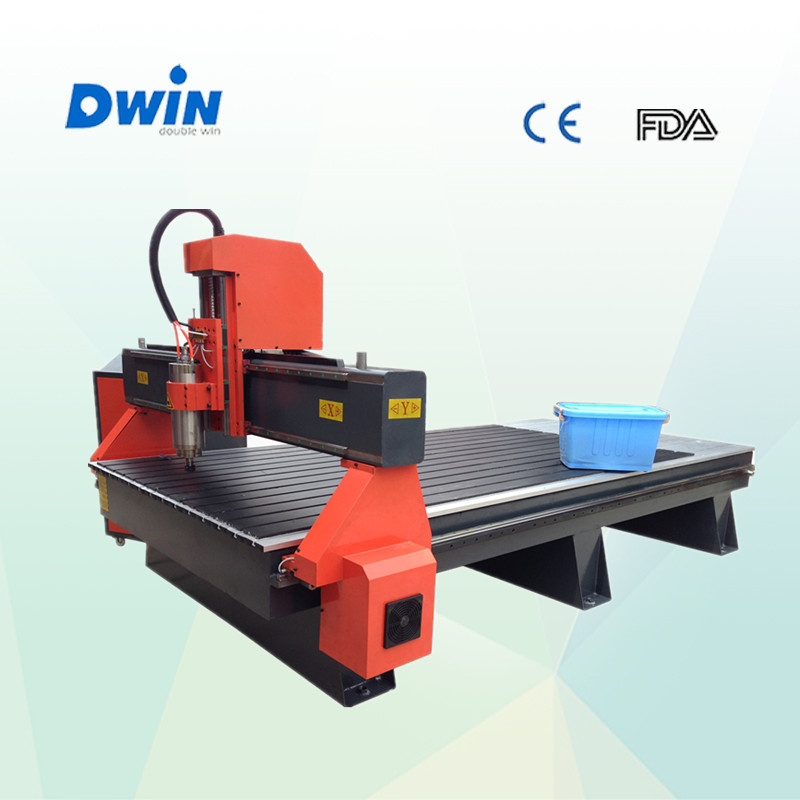

T-slot table 2.2kw router cnc woodworking machine (DW1325)
This machine is DWIN company's T-slot table machine. it is working with rack and gear, has more precision, It working size is: 1300x2500x200mm, vacuum table, using the vacuum pump to absorb the material on the table, it is convenient for our users, you don't need the materials holders, put them on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness material , 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on. Advertisement: engraving and cutting various labels and number plate.Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Woodworking machine is widely used in Wood, aluminium board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Technical parameter:
| specifications: | Model | DW1325 cnc wood router |
1 |
X,Y,Z Working Area | 1300x2500x200mm |
2 |
Table Size | 1380×3040mm |
3 |
X,Y,Z Traveling Positioning Accuracy | ±0.05/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
5 |
Table Surface | T-slot table (Option:Bakelite Vacuum table ) |
6 |
Frame | Welded strucutre |
7 |
X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
8 |
Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
9 |
Max.Power Consumption (Without spindle) | 3.0Kw |
10 |
Max.Rapid Travel Rate | 50000mm/min |
11 |
Max.Working Speed | 25000mm/min |
12 |
Spindle Power Motor | 3kw or 4.5kw water cooling or HSD for choice |
13 |
Spindle Speed | 0-24000RPM |
14 |
Drive Motors | Stepper system(Option:Servo System) |
15 |
Working Voltage | AC220V/50/60Hz,1PH (Option: 380V 3PH) |
16 |
Command Language | G Code |
17 |
Operating System | DSP System (Option: Mach3 PC Software) |
18 |
Interface | USB |
19 |
Flash Memory | 128M(U Disk) |
20 |
Collet | ER25 |
21 |
X,Y Resolution | <0.02mm |
22 |
Software Compatability | Type3 software,Ucancam software(Option:Artcam software) |
23 |
working temperature | 0ºC~45ºC |
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
