Product Specifications
| Prod Model: |
DW2030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Atc CNC Router |
| Working Area: |
2000X3000mm |
| Control System: |
Syntec |
| Spindle: |
9kw |
| Motor: |
Yaskawa Servo Motor and Driver |
| Rail: |
Hiwin Square Rail |
| Table: |
Vacuum Table |
| Tramnission: |
Ball Screw |
| Warranty: |
18 Months |
| Knifes: |
8 PC Knifes |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

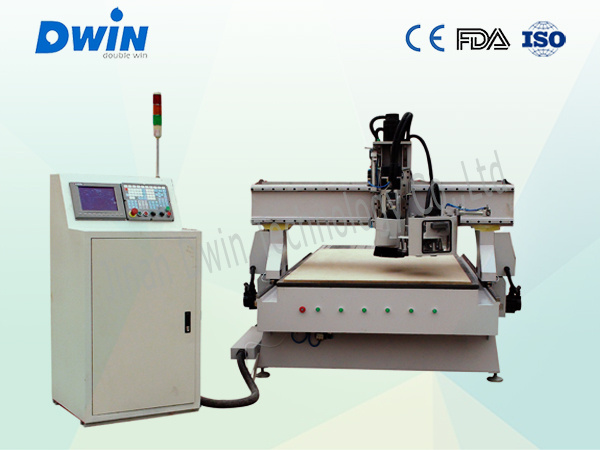

2030 Woodworking CNC Router Wood Machine with Auto Tool Changer
This machine adpot imported italy cnc spindle, has high precision, with auto tool changing system can be used for making all type of complex work, including engraving, carving, cutting, etc.
Its Machine Features :
1. This is an economic tool changer (ATC) CNC router; it can change 8 tools automatically.
2. This model chooses Italian 9KW HSD ATC air cooling spindle, Yaskawa servo system and Delta 11 KW inverter.
3. Siemens 808D control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.
5.Option Model :DW-1325ATC, DW-2030ATC
Technical Parameters:
working area |
1300X2500X500mm |
Max moving speed |
40000mm/min |
Max Engraving Speed |
25000mm/min |
Reposition Accuracy |
<0.05/300mm |
Spindle |
9KW Italy HSD ATC spindle |
Inverter |
11kw Taiwan Delta inverter |
Spindle rotation: |
6000-24000rpm |
Tool magazine and number of tools |
Disc ATC, 8 tools |
Tool diameter |
2mm-20mm |
Transmission |
X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw |
X, Y, Z Rail |
Taiwan HIWIN or PMI 25mm linear guide way |
Beam |
cast Steel |
Frame |
Tube structure |
Table surface |
vacuum & T-slot combined |
Control System |
Germany Siemens 808D Control System |
Typeset software |
Type3, Art CAM |
Motor/ Driver |
1kw Japan YASKAWA servo motor and driver |
Voltage: |
AC380V/50HZ |
ATC CNC Router machine Features:
1, Welded structure by thick profiled steel
2, Assembled with precise parts.
3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the side of working pieces. Vacuum working table is with double cavities and bakelite material with high absorption power.
4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.
5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.
Applications:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any questions.
6, We can record videos of operating the cnc router
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
