Product Specifications
| Prod Model: |
BLP-G-013 |
| Color: |
Clear-White |
| Max Widtn: |
1500mm |
| Price: |
Favourable |
Product Description
Smart Switchable Privacy Glass Film For Office
Details:

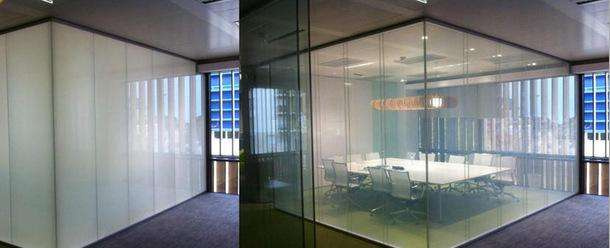

When you shut off the power,the distribution of liquid crystal molecules appear irregular,so that the light could not be scored,the glass apper opaque appearance. After the power is switched on,the liquid crystal molecules will arrange neatly,the light can penetrate,glass will appear transparent state--working principle from Shadow.
| Haze:ON<6%,OFF>90% |
| Total light transmittance :ON >76%,OFF>50% |
| Operating Temperature:-20 to 70(ºC) |
| Minimum privacy distance:3cm(switch off) |
| Storage Temperature:<30°,Humidity<85% |
| Rated Voltage:45 V(AC,50/60 Hz) |
| Current:<0.1A/sq |
| Energy Consumption:4W/sq.m. |
| Viewing Angle:>140° |
| Rate of Anti-UV:≥98% |
| Response Time:<45ms |
| Working life:>50000 hours |
| Switching times:>80,000,000 |
| Sound insulation:>35dB |
| Heat insulation:>class 2 |
| Shotgun bag impact:II-1 |
| Vibration performance:GB 189 10.5-2008 |
| Falling-ball impact peel performance:GB 15763.3-2009 |
| Radiation resistance:GB 5763.3-2009 |
| Damp heat test:GB 15763.3-2009 |
| Heat resistance:GB 15763.3-2009 |
Feature:
Safety
1.Environmental protection and energy saving:Can use the glass, heat insulation, heat preservation function, can save energy, at the same time it could block more than 90% of the infrared, and more than 98% of the ultraviolet ray, reduce the infrared thermal radiation, both reached the environmental protection and energy saving, and make us to feel comfortable to enjoy the bright sun
2.Sound insulation:Effective prevention of various types of noise
3.Control mode diversification:Voice control, temperature control, remote control, remote network control etc( According to customer's demand, can be customized for you)
Application
Change an ordinary window to a TV screen, a 'TV Window'
Unique functions: switchable, viewable from both sides
Show the latest technology with an elegant look
Attract customer's attention
Provide both merchandise and information on site
Do TV advertising by yourself
Great for enhancing store image
Best way to promote sales
Applicable everywhere, in-door, facing street or under ceiling
Easily update advertising without spending any more money
Simple installation, just stick to any window/plastic
Very reasonable price for long term use
Billboard has the ability to be moved from one window to another.
Packaging:wooden crates/ customized packing can be negotiated
Delivery:7-10 days after receipt of deposit
Glass is one of the most stunning features of a room and is essential to beautiful architectural design. Smart Film Technology opens the window of design possibilities for the built environment by enhancing design freedom with the elimination of window covering considerations
****
