Product Specifications
| Prod Model: |
sg-001 |
| Markets: |
South America,Southeast Asia |
| Max Size: |
1300*3200mm |
| Life Time: |
>50,000hr (on) |
| View Angle: |
140 |
| Storage Temperature: |
<30 ,Humidity <85% |
| Usage: |
Window |
| Type: |
UV Glass |
| Color: |
Clear |
Product Description

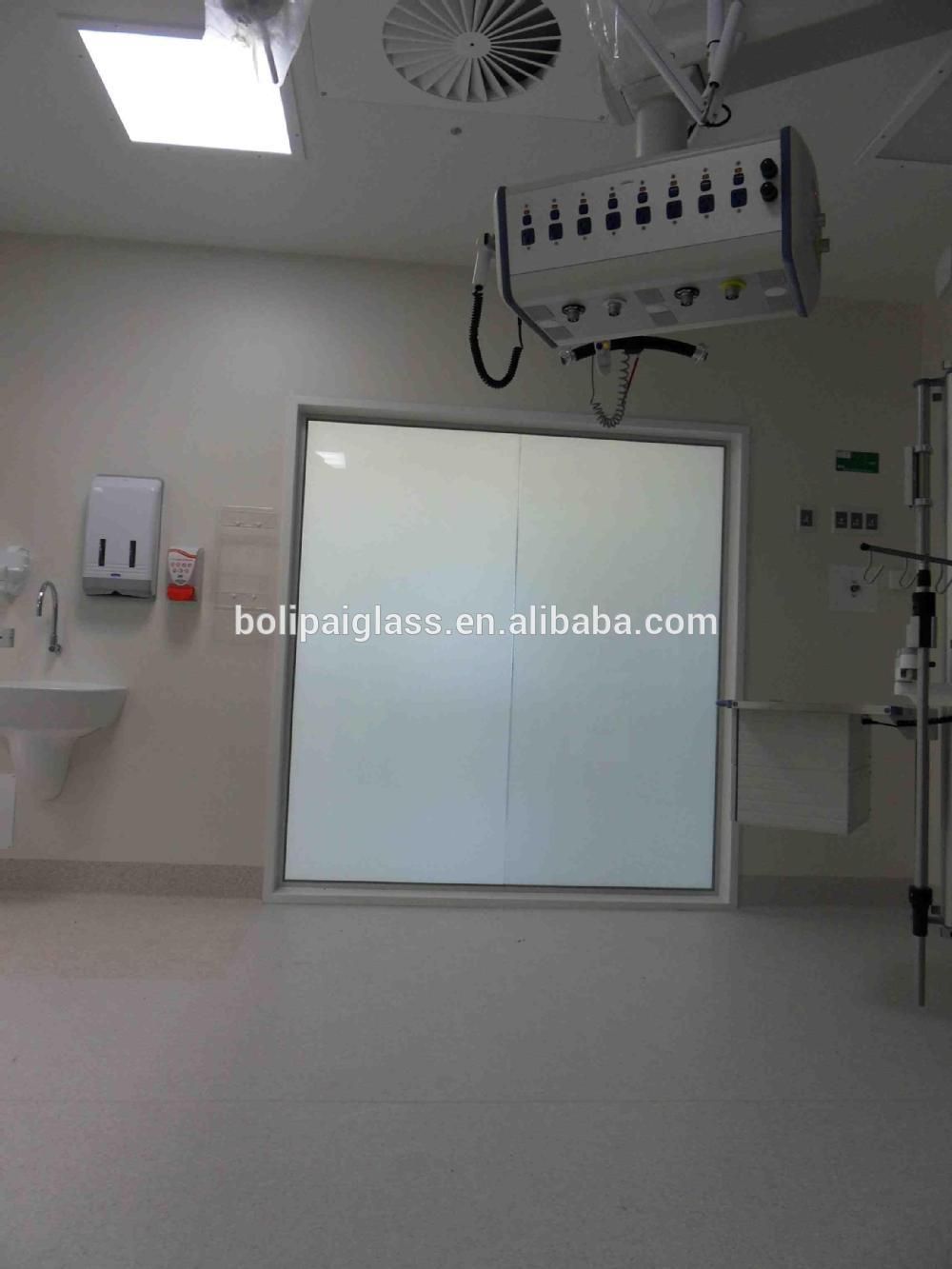

Smart electric privacy smart glass
PDLC Film
PDLC film, whose light scattering power is adjustable through applying an electric field. When power off, visible light scatters through the PDLC and the film turn opaque; When power on, visible light transmits the PDLC and the film turns clear. The film is composed of PET film, ITO film, polymer and liquid crystal molecules.
Application
. Office partition
. Bathrooms
. Conference rooms
. Hospital/Clinics
. Luxury Villa/Private room
. Optical shutters
. Security windows
. Skylights
. Airport
. Hotel&Resturant
. Trains &Bus
Dimension
Available in a wide range of dimensions and shapes. Maximum width is 1, 800 mm, length is unlimited.
Features
1. Excellent optical and electrical performance
2. Mass production capabilities
3. Extreme Performance Stability
4. Environmental protection: It can block almost 98% UV, anti-aging, anti-fade
5. Sound insulation: >35dB
Self-adhesive film
PDLC Film(self adhesive) is an intelligent film which provides a simple and cost effective alternative to Switchable Film technology. It is manufactured with a selfadhesive cling layer on one side (peel and stick) which can be directly sticked to the exsting glass and switch from transparent to opaque instantaneously under electricity application. It can meet the double requirements of glass on penetrability and privacy protection.
Technical Specifications, please kindly check the form
PDLC film thickness: 400μ M± 15.
Applications
. Office partition? Bathrooms? Conference rooms
. Hospital/Clinics
. Luxury Villa/Private room
. Optical shutters
. Security windows
. Airport? Hotel&Resturant? Trains &Bus
Features
. Easy for using(just peel and stick)
. Customized
. Maximum width up to 1820mm
. Simply apply to glass
. UV / protection
| 1.Total ight transmittance: | ON >76% OFF>50% |
| 2. Haze: | ON<6% OFF>90% |
| 3. Minimum privacy distance: | 3cm (switch off) |
| 4. Operating Temperature: | -20 to 70 ( °C ) |
| 5. Storage Temperature: | <30°,humidity <85% |
| 6. Rated Voltage: | 45 V(AC,50/60 Hz) |
| 7. Current: | <0.1A/sq |
| 8. Energy Consumption: | 4W/sq.m. |
| 9. Viewing Angle: | > 140 ° |
| 10. Rate of Anti-UV: | ≥98% |
| 11. Response Time: | < 45ms |
| 12. Working life: | >50000 hours |
| 13. Switching times: | >80,000,000 |
| 14. sound insulation: | >35dB |
| 15. heat insulation: | >class 2 |
| 16. shotgun bag impact: | II-1 |
| 17. Vibration performance: | GB18910.5-2008 |
| 18.falling-ball impact peel performance: | GB15763.3-2009 |
| 19. heat resistance: | GB15763.3-2009 |
| 20: damp heat test: | GB15763.3-2009 |
| 21: radiation resistance: | GB15763.3-2009 |
