Small Extruder Machine for Lab

Name: Small Extruder Machine for Lab
Brand: china-crystals.com
SKU: 790625515
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 19999/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSE-30
Model:	Tse-30
Diameter:	31
Motor Power:	15
L/D:	36-44
Screw Rotary:	600rpm
Capacity:	5-40kg/H
Color:	Customized
Product Type:	Granulating Extruder
Feeding Mode:	One Feed
Assembly Structure:	Separate Type Extruder
Screw:	Twin-Screw
Engagement System:	Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Non-Computerized
Type:	Twin Screw Extruder
Plastic Processed:	PP PE PS PA Pet ABS PVC

Product Description

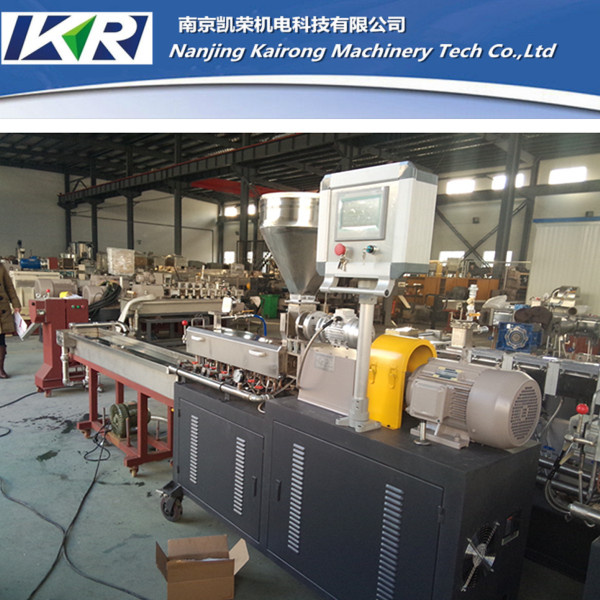

Small extruder machine for lab

1. TSE-30 Series Compounding and Granulating line for Color Master Batch

Process	Lab use, experiment
Application	Color masterbatch, filler MB, reinforced materia etc
Output	5-40kg/h, depending on the condition of raw Material, formulation and processing, etc.

2. Main machines included in production line

NO.	Name
3	Main feeder
4	Twin Screw Extruder
5	Electric Control System(cabinet)
6	Strands Pelletizing System

Other lab extruder Main technical specification

Machine Size	Screw Diameter(mm)	L/D	Screw Speed Max.(rpm)	Motor power(Kw)	Torque per shaft(Nm)	Throughput rate(kg/h)
TSE-20	22	36-44	500	5.5	43	1-10
TSE-30	31	36-44	600	15	119	5-30
TSE-35	35.6	36-44	600	22	175	30-70

Representive material:

Mixing nature-changing:PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA+Silicon rubber

PE,PA,PC,CPE+ABS,ABS+TPU,PBT+PET,PP+PE

Filling nature-changing:PE,PP,EVA,etc.+Calcium carbonate,talcum powder,titanic powder

PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder

Functional machine pellets:PP,PA,ABS,PBT,etc.+anti-burning agent and other auxiliary agents:combustion- supportong machine pellets

PE,PP,PS,etc+starch:de-composing machine pellets

PE+fog-preventing dipper,stabilizer:dual-prevention machine pellets

PE,EVA,ABS,etc+carbon black:black machine pellets

Colored machine pellets:PEMPP,ABS,AS PA,EVA ,PET+pigment and auxiliary

Intensified glass fibres and carbon fibres:PP,PBT,ABS,AS ,PA,PC,POM,PPS,PET,etc+long fibres,carbon fibres,crystals and so on

Variou cables:HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP,insulating cables,coatings,PE peroxide,silicon alkyl crossing cables

Special materials: EVA heat-melting gule,polyurethane,fluorin rubber,fluorine plastics,PP cigarette filtering material and TPR sole material

Reaction extruding:Polyamide condensate,polyamide melting polymerization,polyamide polyethene-adding,polycarbonate condensate,etc

Exhausting and volatilization: polystyrene oxide,high-absoring resin,chlorine sulphur polyethylene

Powder paint: polyester,ring oxide,lactide,polyurethane,acrylate

FAQ

1. Q: How about Haisi?
    R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong
        team which has substantial experience in R&D, manufacture, technique and sales service and has
        specialized in extruder industry for ten years,leading screw barrel manufacturer in China.

2. Q:What's Haisi capacity?
   R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200
       models of extruders and spare parts.

3. Q:What's the delivery time?
    R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
        for customized, normally 3~4weeks.

4.Q:How about Haisi screw extruder quality and price?
   R:Germany Technical invested, top quality in China with competitive price and globle after-sale service

5. Q:what's the life time and guarantee buy from Haisi screw  extruder?
    R:3~5years life time for nitriding ones and bimtallic ones will be longer
        One year min. Guarantee.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Kairong group, headquartered in Nanjing, China, is a global manufacturing and trading company in the field of high-performance plastics and rubber processing equipment, extrusion solutions, masterbatch and compounding, etc. Its unit Nanjing Haisi Extrusion Company is a prefessional manufacturer of twin screw extruder, single screw extruder, two stage extruder and its related auxiaries. We tailor solutions from raw materials, materials processing equipment, to injection for different customers. Each Kairong solution is designed, manufactured, and commissioned by experienced teams of professionals engineers and aftersales staffs.

Kairong group offers raw materials, Mixing and conveying unit, extrusion technology, recycling unit, profile extrusion etc. We offer whole plant, even turnkey solution to meet different customers' requirements.

Kairong Group believes that " High quality and profession service will bring bright future "

We have lots of customer all over the world. Such as: Australia. USA, Egypt. UK, Canada, German etc.

Nan jing kairong mainly supply twin screw extruder, single screw extruder, two stage extruder, plastic sheeting machine, crusher, loader, feeder, mixer, pelletizer, and some other auxiliary equipments.

Last year nanjing kairong has 1500000 USD for exporting, and our target of this year is 3000000 USD.

We plan to build agent in some necessary countries, so that we can supply better service conveniently. In the future, our target is to be the top extruder supplier in China!

Nanjing haisi has more than 10 years experience in this industry. We have a professional group to

Make new design, producing, packing and after sale service. All these will ensure you to have a good and suitable equipment.
