Plastic Pellets Making Extruder Machine

Name: Plastic Pellets Making Extruder Machine
Brand: china-crystals.com
SKU: 789955805
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 59999/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSE-50
Model:	Tse-75
Diameter:	71
Motor Power:	110-200kw
L/D:	32-64
Screw Rotary:	600rpm
Capacity:	300-500kg/H
Color:	Customized
Product Type:	Granulating Extruder
Feeding Mode:	One Feed
Assembly Structure:	Separate Type Extruder
Screw:	Twin-Screw
Engagement System:	Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Non-Computerized
Type:	Twin Screw Extruder
Plastic Processed:	PP PE PS PA Pet ABS PVC

Product Description

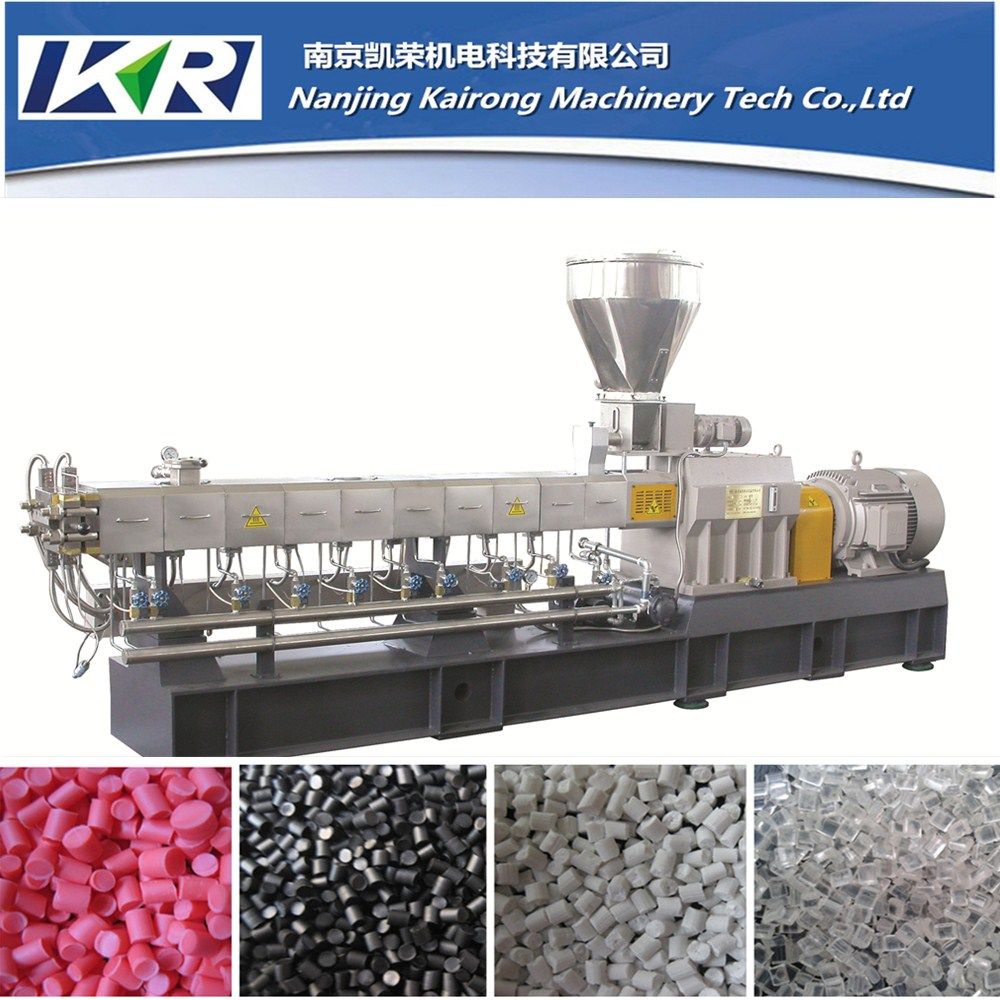

Plastic pellets making extruder machine

Mode	Diameter	L/D	Screw Speed	Screw Torque	Motor Power	Capacity	Weight
TSE-20	22mm	32-44	600r/min	43N.m	5.5kw	0.5-10kg/h	1000kg
TSE-30A	31mm	32-48	500r/min	105N.m	11kw	5-30kg/h	1500kg
TSE-30B	31mm		600r/min	119N.m	15kw	5-40kg/h	1500kg
TSE-35A/B	35.6mm	32-52	600r/min	119N.m	15-22kw	20-60kg/h
TSE-40A	41mm	32-64	400r/min	263N.m	22kw	65-110kg/h	3000kg
TSE-40B	41mm	32-52	600r/min	239N.m	30kw	90-150kg/h	3000kg
TSE-50A/B	50.5mm	32-52	500r/min	430N.m	45-55kw	135-270kg/h	3000kg
TSE-65A	62.4mm	32-52	400r/min	895N.m	75kw	180-250kg/h	4000kg
TSE-65A	62.4mm	32-52	500r/min	716N.m	75kw	180-270kg/h	4000kg
TSE-65B	62.4mm	32-64	600r/min	716N.m	90kw	200-300kg/h	4000kg
TSE-65C	62.4mm	32-64	600r/min	875N.m	110kw	220-350kg/h	4000kg
TSE-75A	71mm	32-56	400r/min	1074N.m	90kw	250-350kg/h	4000kg
TSE-75A	71mm		500r/min	1050N.m	110kw	300-420kg/h	4000kg
TSE-75B	71mm	32-64	600r/min	1050N.m	132kw	350-550kg/h	4000kg
TSE-75C	62.4mm	32-64	600r/min	1273N.m	160kw	400-600kg/h	4000kg
TSE-75D	71mm	32-64	600r/min	1990N.m	200-250kw	500-1000kg/h	4000kg
TSE-95A	93mm	32-64	500r/min	2387N.m	250kw	600-1000kg/h	4000kg
TSE-95B	93mm	32-64	600r/min	2506N.m	315kw	800-1200kg/h	4000kg
TSE-135A	93mm	32-64	500r/min	7162N.m	750kw	1500-2250kg/h	4000kg

Representive material:

Mixing nature-changing:PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA+Silicon rubber

PE,PA,PC,CPE+ABS,ABS+TPU,PBT+PET,PP+PE

Filling nature-changing:PE,PP,EVA,etc.+Calcium carbonate,talcum powder,titanic powder

PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder

Functional machine pellets:PP,PA,ABS,PBT,etc.+anti-burning agent and other auxiliary agents:combustion- supportong machine pellets

PE,PP,PS,etc+starch:de-composing machine pellets

PE+fog-preventing dipper,stabilizer:dual-prevention machine pellets

PE,EVA,ABS,etc+carbon black:black machine pellets

Colored machine pellets:PEMPP,ABS,AS PA,EVA ,PET+pigment and auxiliary

Intensified glass fibres and carbon fibres:PP,PBT,ABS,AS ,PA,PC,POM,PPS,PET,etc+long fibres,carbon fibres,crystals and so on

Variou cables:HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP,insulating cables,coatings,PE peroxide,silicon alkyl crossing cables

Special materials: EVA heat-melting gule,polyurethane,fluorin rubber,fluorine plastics,PP cigarette filtering material and TPR sole material

Reaction extruding:Polyamide condensate,polyamide melting polymerization,polyamide polyethene-adding,polycarbonate condensate,etc

Exhausting and volatilization: polystyrene oxide,high-absoring resin,chlorine sulphur polyethylene

Powder paint: polyester,ring oxide,lactide,polyurethane,acrylate

FAQ

1. Q: How about Haisi?
    R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong
        team which has substantial experience in R&D, manufacture, technique and sales service and has
        specialized in extruder industry for ten years,leading screw barrel manufacturer in China.

2. Q:What's Haisi capacity?
   R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200
       models of extruders and spare parts.

3. Q:What's the delivery time?
    R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
        for customized, normally 3~4weeks.

4.Q:How about Haisi screw extruder quality and price?
   R:Germany Technical invested, top quality in China with competitive price and globle after-sale service

5. Q:what's the life time and guarantee buy from Haisi screw  extruder?
    R:3~5years life time for nitriding ones and bimtallic ones will be longer
        One year min. Guarantee.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Kairong group, headquartered in Nanjing, China, is a global manufacturing and trading company in the field of high-performance plastics and rubber processing equipment, extrusion solutions, masterbatch and compounding, etc. Its unit Nanjing Haisi Extrusion Company is a prefessional manufacturer of twin screw extruder, single screw extruder, two stage extruder and its related auxiaries. We tailor solutions from raw materials, materials processing equipment, to injection for different customers. Each Kairong solution is designed, manufactured, and commissioned by experienced teams of professionals engineers and aftersales staffs.

Kairong group offers raw materials, Mixing and conveying unit, extrusion technology, recycling unit, profile extrusion etc. We offer whole plant, even turnkey solution to meet different customers' requirements.

Kairong Group believes that " High quality and profession service will bring bright future "

We have lots of customer all over the world. Such as: Australia. USA, Egypt. UK, Canada, German etc.

Nan jing kairong mainly supply twin screw extruder, single screw extruder, two stage extruder, plastic sheeting machine, crusher, loader, feeder, mixer, pelletizer, and some other auxiliary equipments.

Last year nanjing kairong has 1500000 USD for exporting, and our target of this year is 3000000 USD.

We plan to build agent in some necessary countries, so that we can supply better service conveniently. In the future, our target is to be the top extruder supplier in China!

Nanjing haisi has more than 10 years experience in this industry. We have a professional group to

Make new design, producing, packing and after sale service. All these will ensure you to have a good and suitable equipment.
