Product Specifications
| Prod Model: |
ANG-RET |
| Keywords: |
RFID Epoxy Tag |
| Craftwork: |
Cmyk Printing, Thermal Number Printing |
| Chip: |
MIFARE S50 |
| Surface: |
Glossy |
| Weight: |
10g |
| Application: |
Access Control, Payment, Bus, Metro,etc |
Product Description

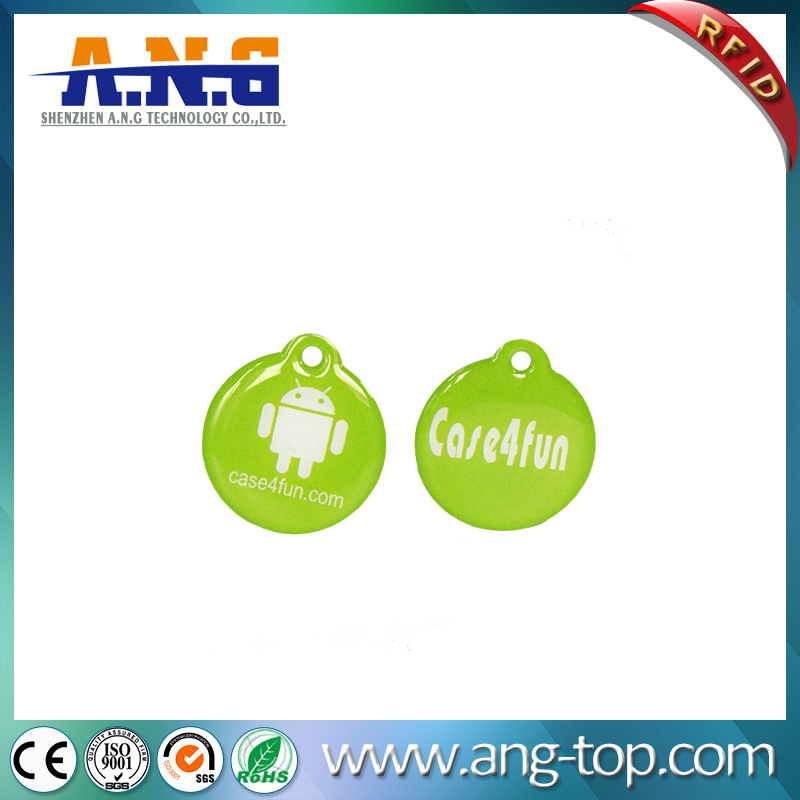

Round shape Classic S50 rfid Epoxy Tag

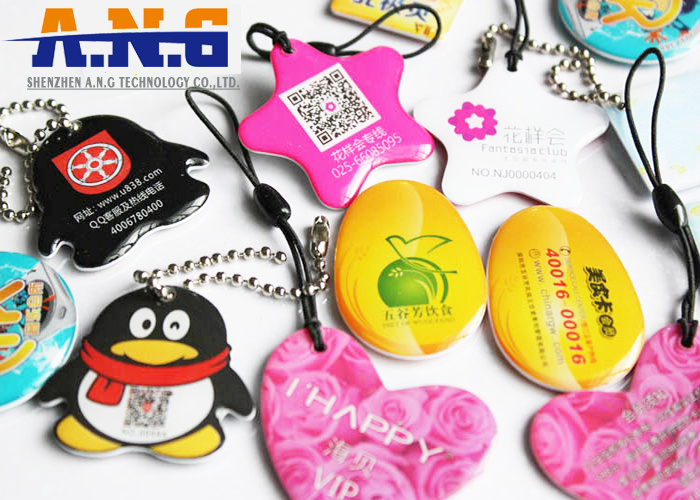

Crystal drop card, also known as Epoxy card has the appearance of fine fashion, easy to carry, extremely long service life advantages, is the perfect substitute of the traditional membership card. Integration of commercially available crystal glue process, Epoxy with a high degree of transparency, and highly bending, anti-yellowing cycle more than the market level. The crystal card internal package ID chip package TK28, TK41, H4100; MF1, F08, the I Code SLI etc. the 13.56M's IC reader chip, are widely used in public transport, patrol, access control, time and attendance, card and other application areas.
Features:
Epoxy Resin
Round shape
CMYK printing
HF chip | Material | Epoxy |
| Size | 40*40mm or Customized |
| Personalized | Logo printing |
| Chip | Mifare S50 |
| Frequency | 13.56MHz |
| Protocol | ISO14443A |
| Reading distance | 1-5cm |
| MOQ | 500pcs |
| Lead time | About 7-8 working days |
Applications:
-access control
-promotion
-identification
-payment: bus, parking
Optional chips:| Available 125KHz Chip | | | | |
| Chip Type | Protocal | Capacity | Anti Collision | Function |
| HITAG® 1 | / | 256 byte | No | Read/Write |
| HITAG® 2 | ISO11784/85 | 32 byte | No | Read/Write |
| HITAG® S 256 | ISO11784/85 | 32 byte | Yes | Read/Write |
| HITAG® S 2048 | ISO11784/85 | 256 byte | Yes | Read/Write |
| Available 13.56MHz Chip | | | | |
| MIFARE Classic® 1K | ISO14443A | 1KB | No | Read/Write |
| MIFARE Classic® 4K | ISO14443A | 4KB | No | Read/Write |
| MIFARE® DESFire® | ISO14443A | 2KB/4KB/8KB | No | Read/Write |
| MIFARE Ultralight® EV1 | ISO14443A | 192 byte | No | Read/Write |
| MIFARE Ultralight® C | ISO14443A | 192 byte | No | Read/Write |
| I CODE® SLI | ISO15693 | 128 byte | Yes | Read/Write |
| Available 860-960MHz Chip | | | | |
| U CODE GEN2 | EPC G1 GEN2 | 512 bit | Yes | Read/Write |
| Other chip is also available. |
| MIFARE® is a registered Trademark of NXP B. V. |

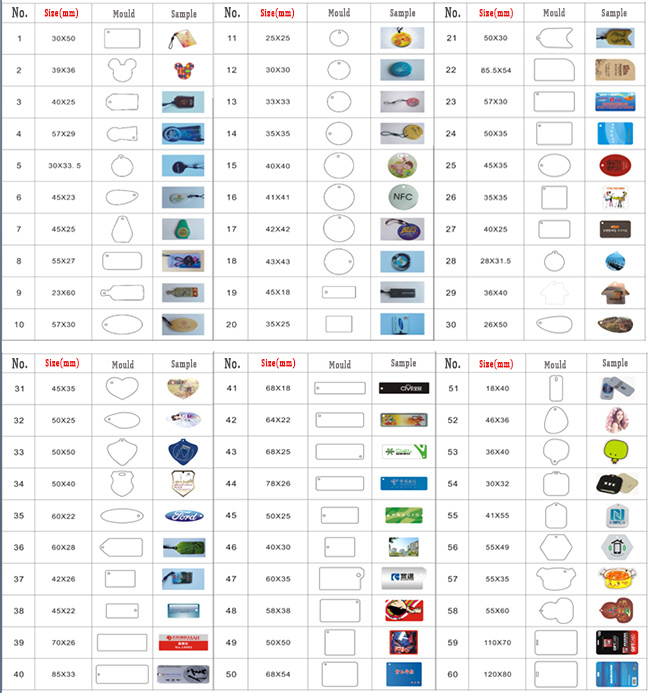

Moulds available:
Introduction of A.N.G Tech.
Shenzhen A.N.G Technology Co., Ltd is in line of all range of RFID products such as RFID card, RFID tag, RFID bracelet, RFID key fob, RFID reader. With development step of the society, we also focus on RFID system solution such as Parking system solution, Playground system solution, Membership charging system, Enterprise bus charging system, Catering system, Bus charging system. We have already cooperated with clients for these RFID products who are mainly located in European countries and American countries. Next, we are going to greatly develop RFID system solutions. We believe you can rest assure in RFID field if you build a business relationship with us.
Shenzhen ANG Technology Ltd is a collection research and development, production, sales in the integration of RFID high-tech innovative company. We have a rich experience, strong technical ability of research and development, production and management team.
At the same time, the French RFID technology have been cooperated with us for many years. We can keep leading technology in the international market competition by integrating internal and external resources, to provide our customers with specialized product design, development, manufacture and personalized service. We are committed to non-contact smart cards, contact smart cards, RFID electronic tags and system solutions for the design, development, production and sales. Accelerating the development of key
Technologies and products as well as new applications, new business. We focus on
Development of IC cards, RFID electronic tags and their applications of information technology and products. Our products can be applied to the fields which covered medical, food, electronics, clothing, transportation, warehousing, logistics, public security, asset management. Most of the production equipment and test instruments are imported from the United States, Britain, Japan and Germany. We have been adhering to the concept of high-tech continuous development and
Innovation from our company established. It is A=Advanced, N=Newest, G=Greatest. We strictly follow the complete scientific management system and ISO9001: 2008 quality assurance system, and superb technical services to our customers. As for these, we get the recognition from many well-known large-scare enterprises. We have a sophisticated production line to meet different customer demand for smart cards, productivity, quality with competitive price in our industry.
In the future, ANG Technology will continue to be a first-class leading technology and service to our customer, and maintain an efficient and innovative operation mechanism, to provide customers more secure, more reliable products.
