Roll up of Rapid Rolling PVC Stacking Flex Door (Hz-ST0151)
| Price: |
US $ 1100-1200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
HZ-ST0151 |
| HS Code: |
73083000 |
| Door Curtain Material: |
French High Density Industrial Fabric |
| Drive System: |
1.German Sew 2.China Sej / Snma |
| Motor Power: |
0.75kw-2.2k/50-60Hz |
| Control System: |
1.Japan Mitsubishi 2.China Holip |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Opening Frequency: |
1000-1500times/Day |
| Quality Warranty: |
12 Months |
| Open And Close: |
0.6-1.8m/S |
| Perspective Window: |
1.2mm PVC Transparent |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Special Function: |
Fire Proofing |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
Fabric+PVC/Aluminium Alloy |
| Opening Type: |
Remote Control |
| Color: |
Red/Orange/Green/Blue/Green |
Product Description

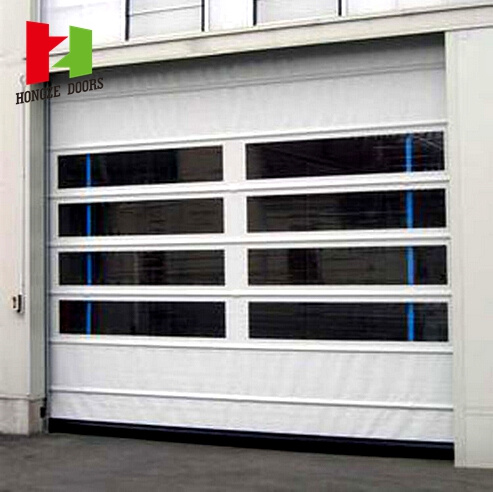

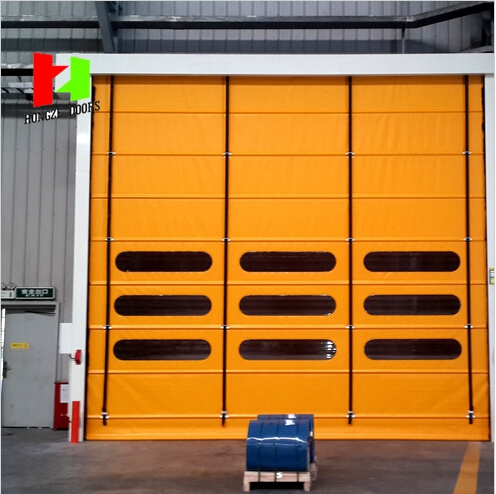

PVC Plastic Fast Moving Stacking Roller Shutter Door
Product Detail| The maximum Door Size | 4000*4000mm |
| Drive system | Servo motor(380V/220V 50Hz 0.75KW,1.5KW.)
Our own brand "Hofic" (380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
| Control panel | Servo/Holip |
Opening&close speed |
1-1.5meters/second |
Guide rail material | Carbon Steel Plate |
| Standard Motor Position | Left or Right |
| Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥450mm above the door
≥150mm for motor side
≥130mm for motor side
|
Using Area | food, chemical, textile, refrigeration, electronics, printing, assembly, precision machinery, logistics, warehousing and other places |
Material Selection :1. Frame: 2MM thicknesses cold-roll Stainless steel.2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)4. Opening & closing speed: 0.6-1.5m/s (adjustable).5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 ° C +70 ° C.7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.11. Cotrolling way: Push button + radar sensor, very convenient.12. Limiting Switch: Mechanical limiting switch, easily and exactly.13. Emergency STOP: With emergency stop button on control panel, can stop easily byHand once disconnect or accident14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
Company InformationHongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
F A Q:1. What's the payment details?Deposit before production, and balance before shipment.2. What's the delivery time?For common order, about 7 days only.3. What about the warranty for the doors?We provide 12 months warranty for all doors and accessories.4. Do you provide OEM Service?Yes. OEM & ODM Service is ok for us.5. What's the MOQ?We accept 1 set as sample order.6. How about the package?Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
