Product Specifications
| Prod Model: |
Revolving Doors automatic revolving doors |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
Lenz Motor |
| Power Supply: |
220V or 110V |
| Door Length: |
2100mm to 4200mm |
| Model: |
Revolving |
| Warranty: |
24monthes |
| Function: |
Revolving&Sliding |
| Standard System Weight: |
Around 500kg |
| Position: |
Exterior |
| Surface Finishing: |
Finished |
| Open Style: |
Revolving |
Product Description

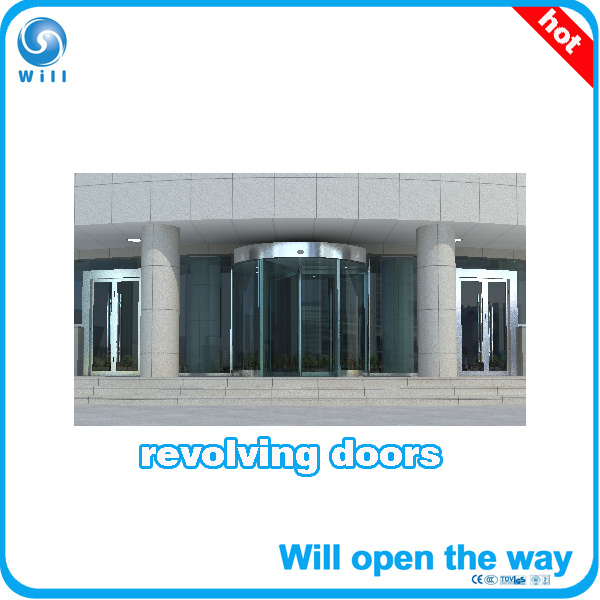

Automatic Revolving Door
Product Details
Revolving Door
Models:
Automatic Revolving Door Unit with 3 or 4 wings. Available in the following model sizes (delete as applicable)
3 Wing 4 Wing
1800mm Diameter
2100mm Diameter
2400mm Diameter
2700mm Diameter
3000mm Diameter
Standard equipment:
Automatic drive
Control unit built-in behind the fascia above the inside entrance Microprocessor controlled with plug-in modules and LED status lights
Speed control
Vertical safety switches
Glass in drum: 8 mm clear laminated
Glass in wings: 6 mm clear laminated
Other types of glass available
Door sections made from aluminium profiles
Ceiling made from white laminated panels
Dust protection roof made from white laminated panels
Accessories and Options: (Delete as applicable)
Powder-coated finish (RAL colours)
Anodizing, clear or bronze
Stainless steel cladding
Emergency stop
Electro-mechanical lock
Mechanical lock on door leaves
Fascia, non-standard height (300 - 1300mm)
Internal height non-standard
Sheet metal sandwich panel instead of glass
Spotlights
Water-resistant cover
Rotation brake
Emergency break-away system
Midrails on door leaves
Additional safety on rotating part
Air curtain
Technical specifications:
Power supply - 220/240 V, 50 Hz - 110/120 V, 60 Hz
Power consumption: 220 W
Lighting: 12 V, 120 W
Mains fuse: 10 A
Warranty: 24months
